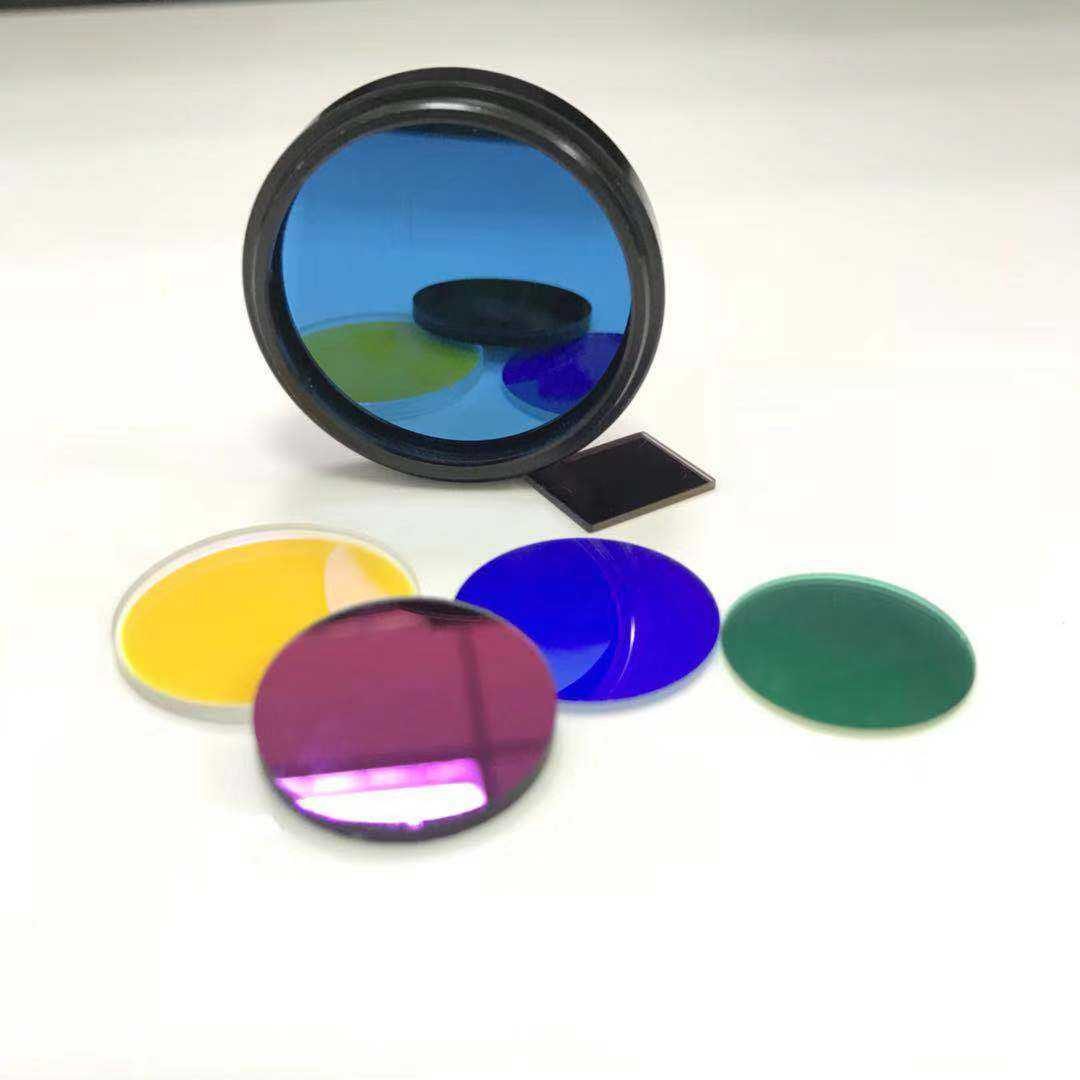

Custom Size Optical Glass Optical Filter, AR Coated
Explore our bandpass filter, transmitting 340-1064 nm wavelengths with customizable thickness options for your optical applications.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 0.5 mm
- Filter Type
- bandpass
- Cwl
- 340nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 0.5 mm
- Filter Type
- bandpass
- Cwl
- 340nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This bandpass filter is designed to effectively transmit wavelengths between 340 nm and 1064 nm, making it suitable for applications in fluorescence microscopy and other optical systems. With a thickness range of 0.5 mm to 50 mm, it offers versatility for various setups. The filter’s anti-reflective (AR) coating enhances transmittance, ensuring optimal performance in demanding environments.
Key Features
- Transmits wavelengths from 340 nm to 1064 nm, ideal for diverse optical applications.
- AR coating improves light transmission, enhancing overall system efficiency.
- Available in thicknesses from 0.5 mm to 50 mm, allowing for customization based on specific needs.
- OEM support for tailored solutions, ensuring compatibility with unique project requirements.
- Manufactured from optical glass in Jilin, ensuring high-quality production standards.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | 0.5 mm |
| Filter Type | bandpass |
| Cwl | 340nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Bandpass Filter |
| Customized Support | OEM |
| Wavelength | 340nm-1064nm |
| Color | Customer Required Color |
FAQ
Can I get custom sizes?
Yes, this filter can be customized in thickness from 0.5 mm to 50 mm.
What is the minimum order quantity?
The minimum order quantity is not specified, allowing for flexible procurement.
