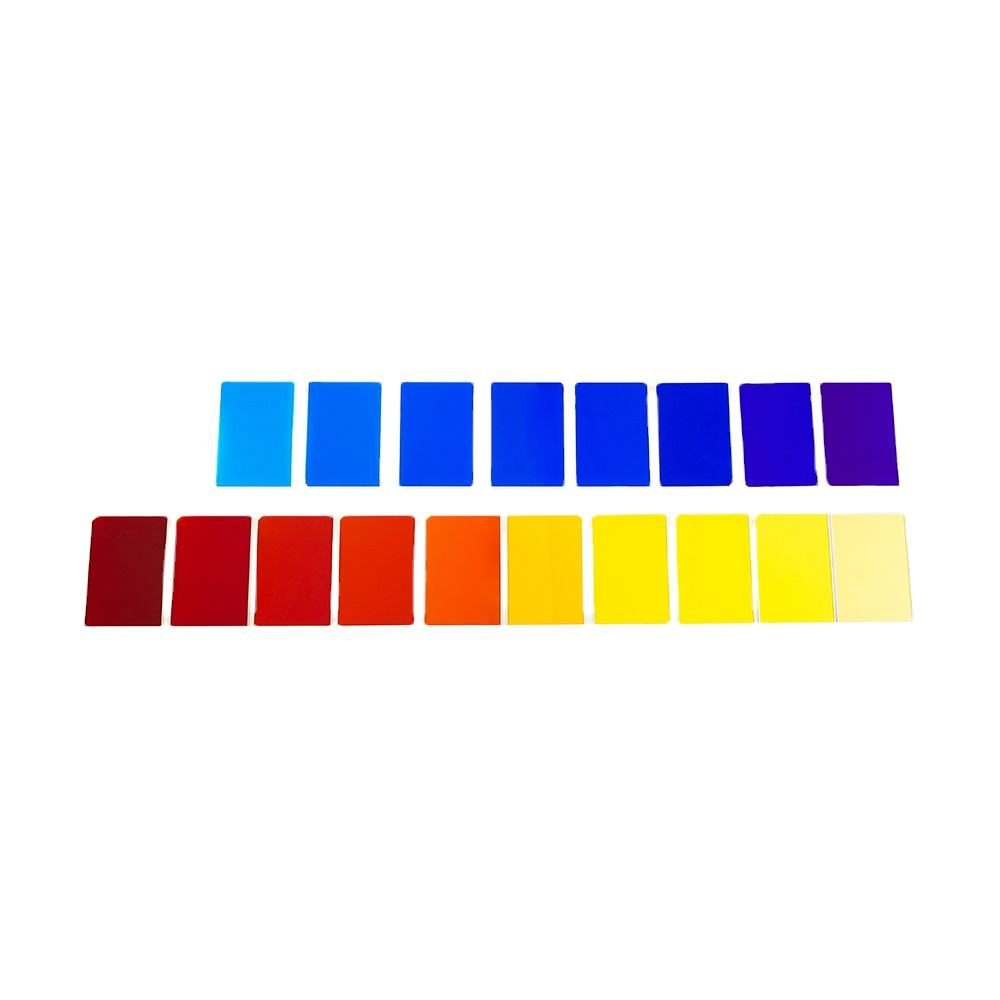

Custom Size Optical Glass Optical Filter

Product description

This optical glass filter is designed to provide high transmittance and durability for applications in fluorescence microscopy and machine vision. With a transmittance of 95% across the 400-700 nm range, it effectively enhances signal clarity while blocking unwanted wavelengths. The hard-coat finish ensures environmental durability, making it suitable for various demanding applications.

Key Features

Transmittance of 95% ensures optimal light transmission for enhanced imaging.
Available thicknesses from 0.3 mm to 5.0 mm for versatile application needs.
Custom center wavelengths (CWL) and full width at half maximum (FWHM) from 10-50 nm to fit specific requirements.
Hard-coat finish provides added durability against environmental factors.
Minimum order quantity of just 1 piece allows for low-risk prototyping.

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	95%
Coating	hard-coat
Transmission bands	VIS (400-700 nm)
MOQ	1 Piece

Full Specifications

Parameter	Value
Transmittance	95%; 95
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Substrate	Optical Glass
Fwhm	10-50nm /Custom
Cwl	Custom
Moq	1 Piece

FAQ

Can I get custom sizes for this filter?

Yes, custom center wavelengths and thicknesses from 0.3 mm to 5.0 mm are available.

What is the minimum order quantity?

The minimum order quantity is 1 piece, allowing for flexible purchasing.
