1 / 6Optical Filters

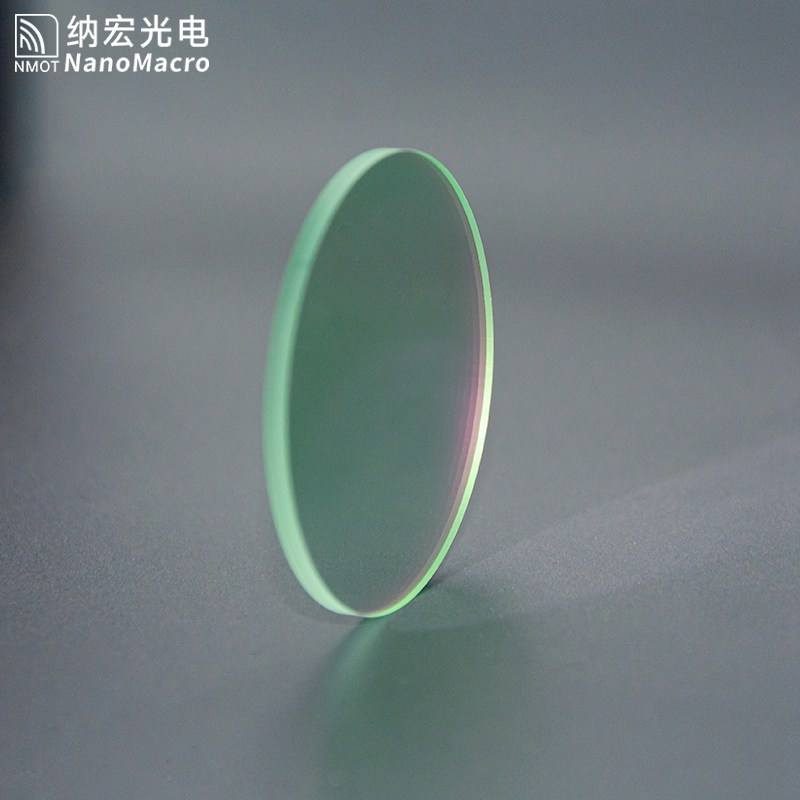

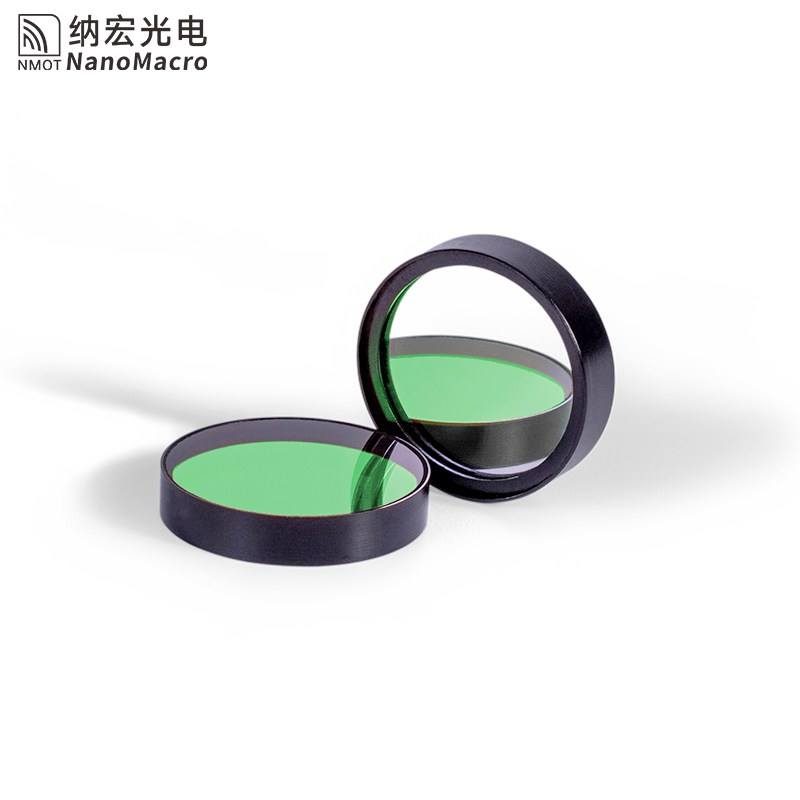

Custom Size Optical Glass Optical Filter
Bandpass filter for fluorescence applications with 90% transmittance at 543 nm. Customizable thickness and durable hard coating.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 543nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 543nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for fluorescence applications, effectively transmitting wavelengths around 543 nm while blocking unwanted light. With a high transmittance of 90%, it ensures optimal performance in microscopy and imaging systems. The filter’s hard coating enhances durability, making it suitable for various environmental conditions. It is available in customizable thickness options of 1.0 mm, allowing for integration into diverse optical setups.
Key Features
- High transmittance of 90% ensures efficient light passage for fluorescence applications.
- Center wavelength at 543 nm targets specific fluorescence emissions for precise imaging.
- Hard-coated for enhanced durability, suitable for rigorous environmental conditions.
- Customizable thickness options (1.0 mm) allow for tailored integration into systems.
- Optical density range of OD5-OD6 provides excellent blocking of out-of-band wavelengths.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 543nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; T>90% |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Cwl | 543nm |
| Fwhm | 10-60nm for options |
| Cut Off Wavelength | 350-800nm |
| Optical Density | OD5-OD6 |
FAQ
What are the available thickness options for this filter?
This filter is available in a thickness of 1.0 mm.
Can I get a custom filter for specific applications?
Yes, the filter supports OEM and ODM customization for various applications.
