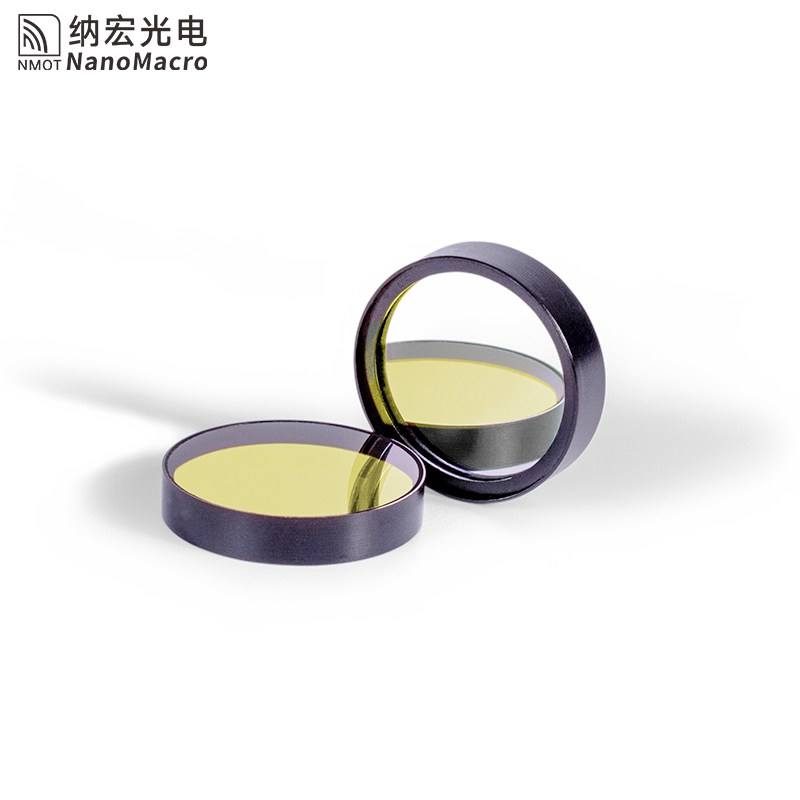

Custom Size Optical Glass Optical Filter
Explore our 585 nm bandpass filter with 90% transmittance, ideal for fluorescence and medical applications.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 585nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- 1 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 585nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for applications in fluorescence and medical imaging, effectively transmitting light centered at 585 nm with a transmittance of 90%. With a cutoff wavelength range of 350-800 nm, it ensures optimal performance for a variety of light sources and detectors. The filter’s hard-coat provides enhanced durability, making it suitable for demanding environments.
Key Features
- Transmittance of 90% ensures high light throughput for effective imaging.
- Center wavelength of 585 nm tailored for fluorescence applications.
- Optical density of OD5-OD6 provides excellent blocking of unwanted wavelengths.
- Customizable with options for FWHM between 10-60 nm to fit specific application needs.
- Durable hard-coat coating enhances environmental resistance.
Applications
Fluorescence, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 585nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; T>90% |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Cwl | 585nm |
| Fwhm | 10-60nm for options |
| Cut Off Wavelength | 350-800nm |
| Optical Density | OD5-OD6 |
FAQ
Can I get custom sizes for this filter?
Custom sizes are available through OEM and ODM support.
What are the tolerances for this filter?
Surface quality is rated at 60/40, ensuring good optical performance.
