Custom Size Optical Glass Optical Filter

Product description

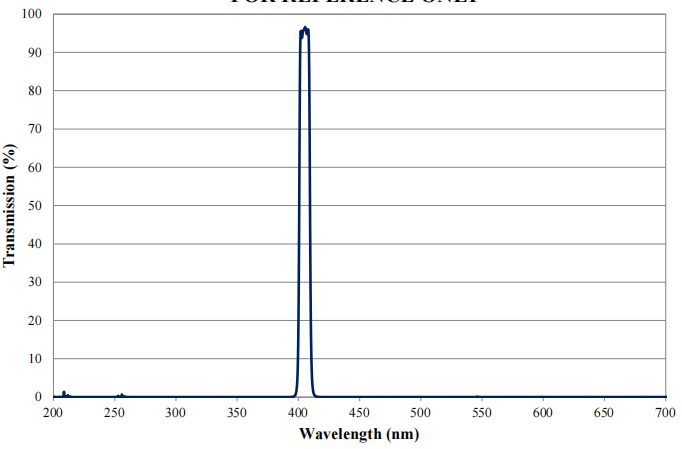

This 405nm bandpass filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. Ideal for fluorescence microscopy and other optical applications, it ensures high transmission (>30%) while effectively blocking unwanted wavelengths with an optical density of OD2-OD4. The filter’s customizable thickness (2.0mm or 5.0mm) allows for integration into various systems, ensuring compatibility with your specific light sources and detectors.

Key Features

Center Wavelength: 405nm for optimal fluorescence excitation.
High Transmission: Greater than 30% for effective light utilization.
Custom Thickness: Available in 2.0mm and 5.0mm to fit diverse applications.
Blocking Density: OD2-OD4 to minimize interference from out-of-band light.
Customizable Options: Supports OEM, ODM for tailored solutions.

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	2 mm
Filter Type	bandpass
Cwl	405nm
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Transmission	>30%
Slope	Steeper
Tolerance	±0.2 mm
Aoi	Can be customized
Customized	Yes
Blocking Density	OD2-OD4
Shipment	Express delivery,Air,Sea

FAQ

Can I get custom sizes?

Yes, custom sizes and thicknesses are available to meet specific application needs.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing for flexible procurement.
