1 / 6Optical Filters

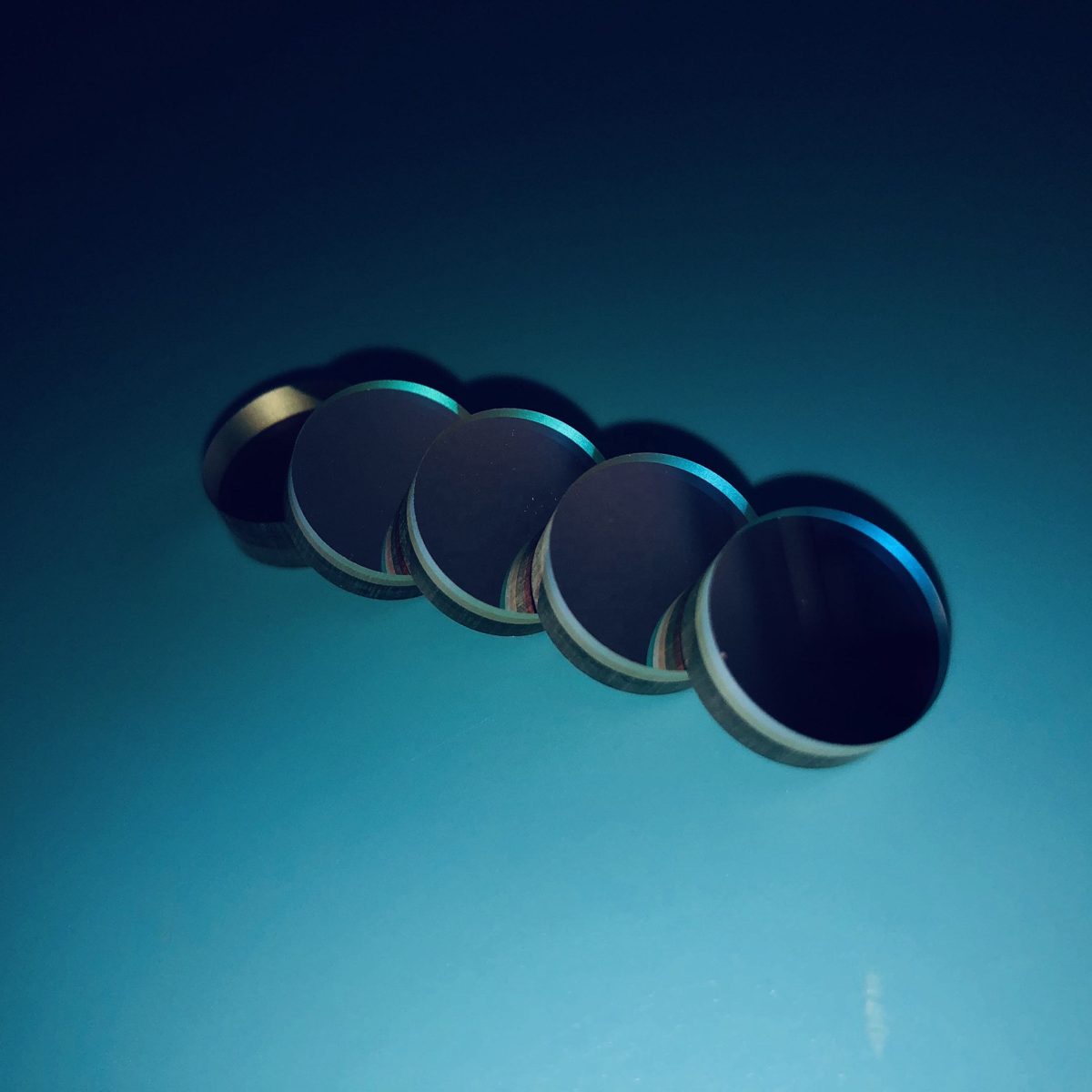

Custom Size Optical Glass Optical Filter, AR Coated
High-quality bandpass filter with 95% transmittance, customizable sizes, ideal for optical applications in the 0.7-1.7 μm range.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 810nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 810nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the 0.7-1.7 μm range, with a center wavelength of 810 nm. Its 95% transmittance ensures optimal light passage while effectively blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, it supports customized dimensions and offers reliable performance in demanding environments.
Key Features
- High transmittance of 95% ensures maximum light throughput.
- Bandpass filter type effectively isolates desired wavelengths.
- Custom dimensions available to fit specific application needs.
- Surface quality of 60/40 for reliable optical performance.
- Thickness tolerance of ±0.05 mm for precise applications.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 810nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 99% |
| Customized Support | OEM |
| Warranty | 2 months |
| Dimension | as request |
| Dimension Tolerance | +-0/-0.15mm |
| Thickness Tolerance | +-0.05mm |
| Transmission | See following |
FAQ
Can I get custom sizes?
Yes, custom dimensions are available upon request.
What is the dimension tolerance?
The dimension tolerance is ±0/-0.15 mm.
