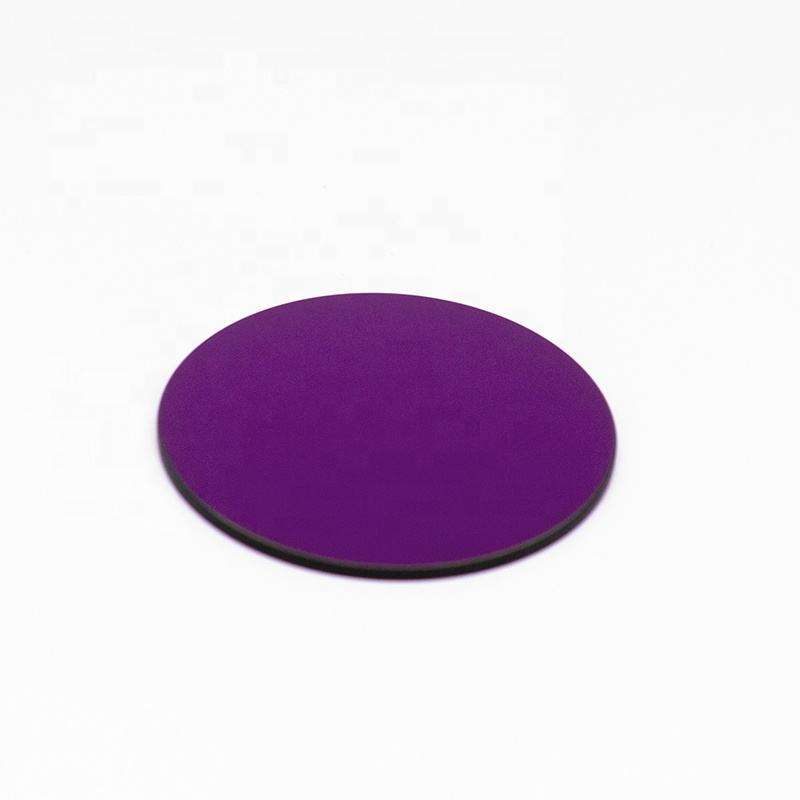

Custom Size Optical Glass Optical Filter

Product description

This bandpass filter is designed to enhance the performance of optical systems by allowing specific wavelengths to pass while blocking others. With a transmittance of 90%, it is ideal for applications in fluorescence microscopy and other optical applications requiring precise wavelength selection. The filter supports a customizable full width at half maximum (FWHM) range of 10-50 nm, making it versatile for various light sources and detectors.

Key Features

Transmittance of 90% ensures high light throughput.
Bandpass filter type provides precise wavelength selection.
Customizable FWHM from 10-50 nm to fit specific application needs.
Optical density greater than OD2-OD6 for effective blocking.
Supports OEM and ODM for tailored solutions.

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Filter Type	bandpass

Full Specifications

Parameter	Value
Transmittance	90%; no
Customized Support	OEM, ODM
Warranty	3 Years
Type	Bandpass filter
Fwhm	10-50nm or custom
Transmission	90%
Optical Density	>OD2-OD6
Angle Of Incidence	0 deg

FAQ

Can I get custom sizes?

Yes, the filter can be customized to meet specific size and thickness requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
