1 / 5Optical Filters

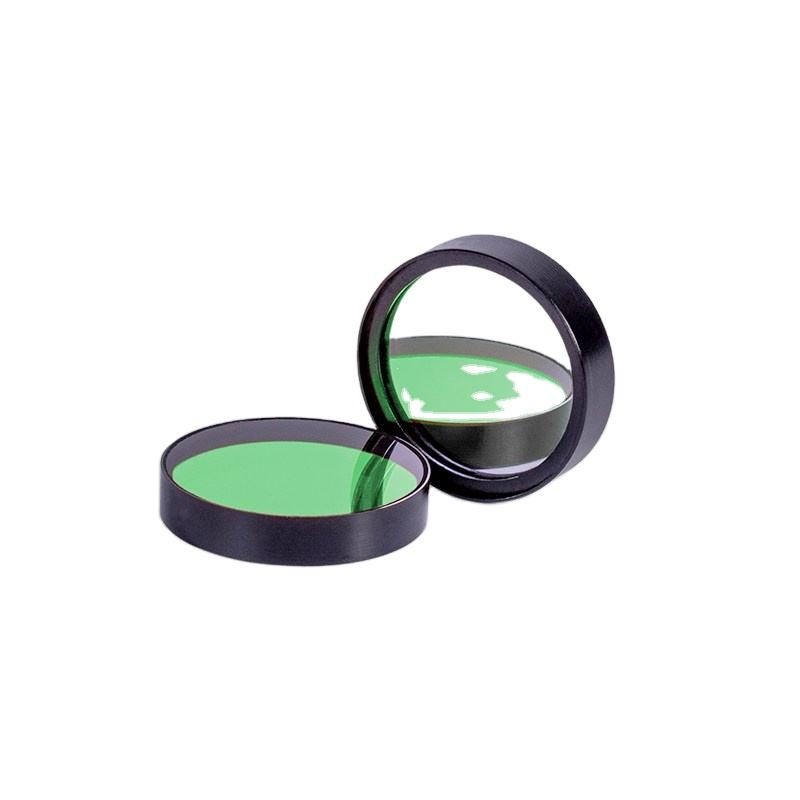

Custom Size Optical Glass Optical Filter
High-performance optical filter for medical applications with 90% transmittance at 460nm. Durable hard-coat finish.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Cwl
- 460nm
- Coating
- hard-coat
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Cwl
- 460nm
- Coating
- hard-coat
Product description
This optical filter is designed for medical applications, providing high transmittance at a center wavelength of 460nm. With a full-width at half maximum (FWHM) of 55nm, it ensures effective light transmission while blocking unwanted wavelengths from 350nm to 1000nm. The hard-coated surface enhances durability, making it suitable for various demanding environments.
Key Features
- 90% transmittance ensures optimal light throughput for medical applications.
- Center wavelength of 460nm aligns with common fluorescence excitation sources.
- Cut-off wavelength range of 350-1000nm effectively blocks unwanted light.
- Hard-coat finish provides enhanced environmental durability.
- Customized support available for OEM and ODM solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Cwl | 460nm |
| Coating | hard-coat |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; Tave>90% |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Cwl | 460nm |
| Fwhm | 55nm |
| Cut Off Wavelength | 350-1000nm |
| Optical Density | OD5-OD6 |
FAQ
Is custom sizing available?
Custom sizes can be accommodated through OEM and ODM support.
What is the surface quality of the filter?
The surface quality is rated at 60/40.
