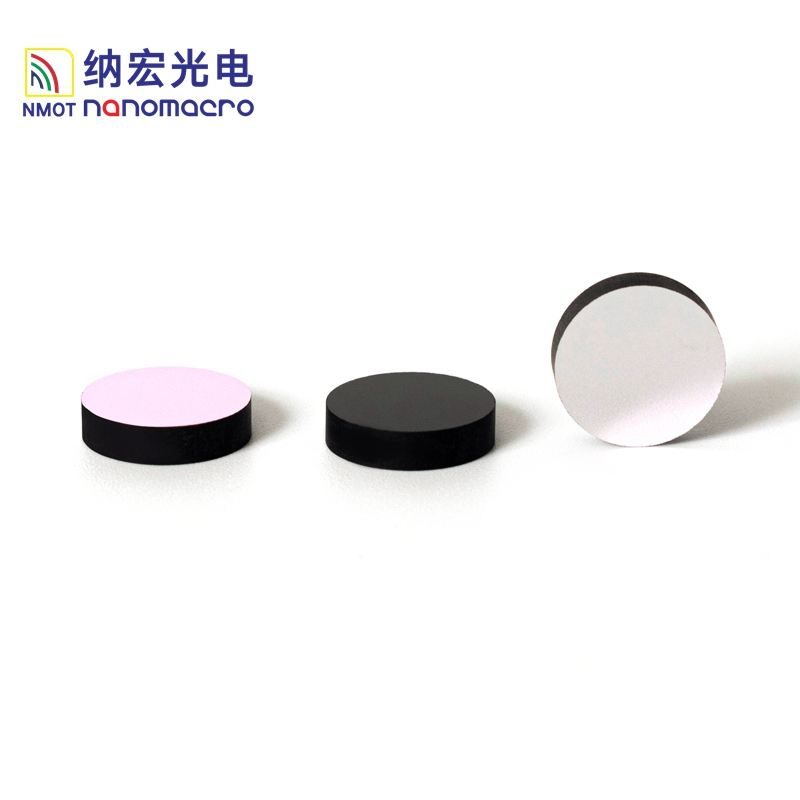

Custom Size Optical Glass Optical Filter

Product description

This dichroic filter is designed for fluorescence applications, offering high transmittance of 90% at a center wavelength of 640nm. It effectively separates light based on wavelength, ensuring optimal performance in fluorescence microscopy. The filter’s hard-coat enhances durability, making it suitable for demanding environments. With customizable options for cut-off wavelengths and FWHM, it can be tailored to specific application needs.

Key Features

High transmittance of 90% ensures efficient light passage for fluorescence applications.
Dichroic filter type effectively separates wavelengths, enhancing imaging quality.
Hard-coat coating provides environmental durability for extended use.
Customizable cut-off wavelength from 350-1100nm to fit various applications.
OEM and ODM support available for tailored solutions.

Applications

Fluorescence

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Filter Type	dichroic
Cwl	640nm
Coating	hard-coat

Full Specifications

Parameter	Value
Transmittance	Fifty Percent; Tave>90%
Customized Support	OEM, ODM
Warranty	1 year
Cwl	340-940nm
Fwhm	Customizable
Cut Off Wavelength	350-1100nm

FAQ

Can I get custom sizes and thicknesses?

Customizable options for FWHM and cut-off wavelengths are available, but specific sizes and thicknesses are not detailed.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified.
