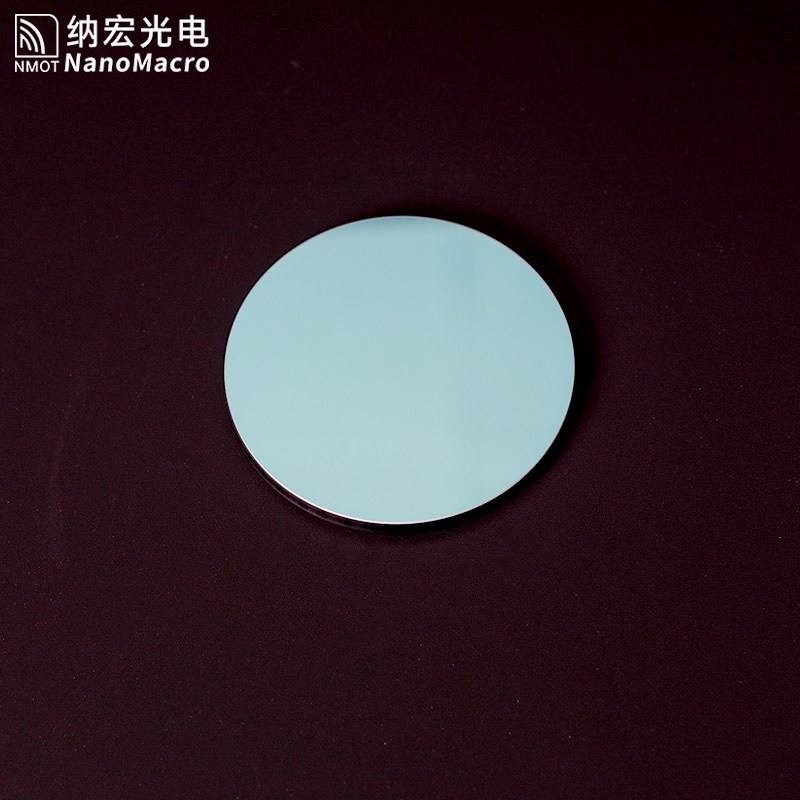

Custom Size Optical Glass Optical Filter

Product description

This optical filter is designed for machine vision applications, effectively operating within the 0.7-1.7 μm wavelength range. With a center wavelength of 1200 nm and a customizable full width at half maximum (FWHM) of 12 nm, it offers 90% transmittance, ensuring optimal performance in various lighting conditions. The hard-coated surface enhances durability, making it suitable for demanding environments.

Key Features

Center wavelength of 1200 nm for precise spectral fit in machine vision applications.
90% transmittance ensures high light throughput and image clarity.
Customizable FWHM of 12 nm to meet specific application needs.
Hard-coated for enhanced durability and environmental resistance.
OEM and ODM support available for tailored solutions.

Applications

Machine Vision

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Cwl	1200nm
Coating	hard-coat
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	90%; 50%; T>50%
Customized Support	OEM, ODM
Warranty	1 year
Cwl	1200nm
Fwhm	12nm customized
Optical Density	OD>2

FAQ

What are the available customizations for size and thickness?

Custom sizes and thicknesses can be accommodated as per specific requirements.

What is the minimum order quantity (MOQ) for this filter?

Minimum order quantity details are not specified; please inquire for specific needs.
