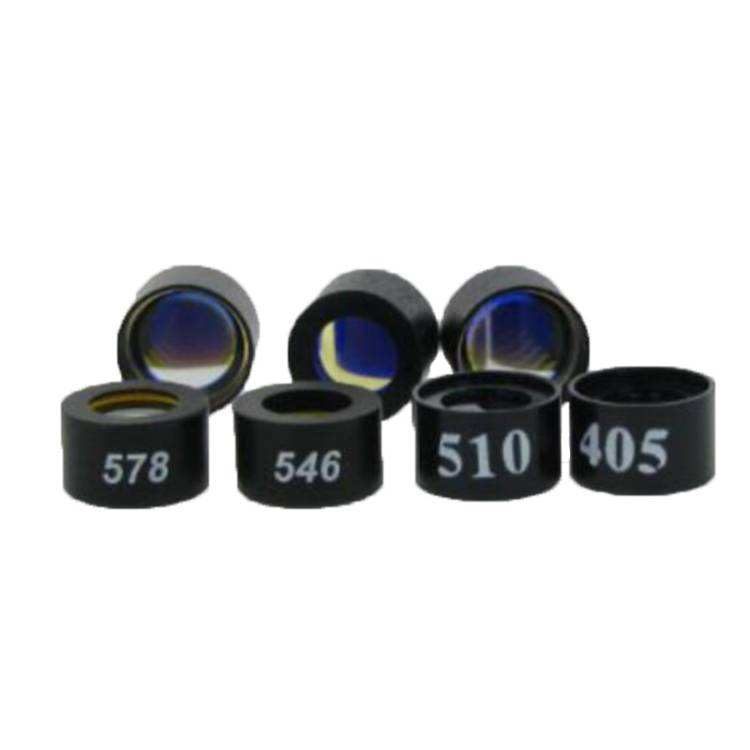

Custom Size Optical Glass Optical Filter
Optical filter for medical applications with 80% transmittance and 577.5 nm center wavelength. Durable hard-coat finish.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 80%
- Cwl
- 577.5nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 80%
- Cwl
- 577.5nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This optical filter is designed for medical applications, providing reliable performance in the 0.7-1.7 μm and 400-700 nm bands. With a center wavelength of 577.5 nm and a transmittance of 80%, it ensures optimal light transmission while effectively blocking unwanted wavelengths. The hard-coat finish enhances durability, making it suitable for various environmental conditions.
Key Features
- Transmittance of 80% ensures high light throughput for accurate measurements.
- Center wavelength of 577.5 nm aligns with common medical light sources for optimal performance.
- OD≥2 blocking depth effectively reduces unwanted light interference.
- Hard-coat provides enhanced environmental durability for long-term use.
- OEM customization support available for tailored solutions.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 80% |
| Cwl | 577.5nm |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 80%; 60-90% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Substrate | Clear Optical Glass |
| Center Wavelength | 405-750nm |
| Fwhm | 10±2nm |
| Blocking | OD≥2 |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
