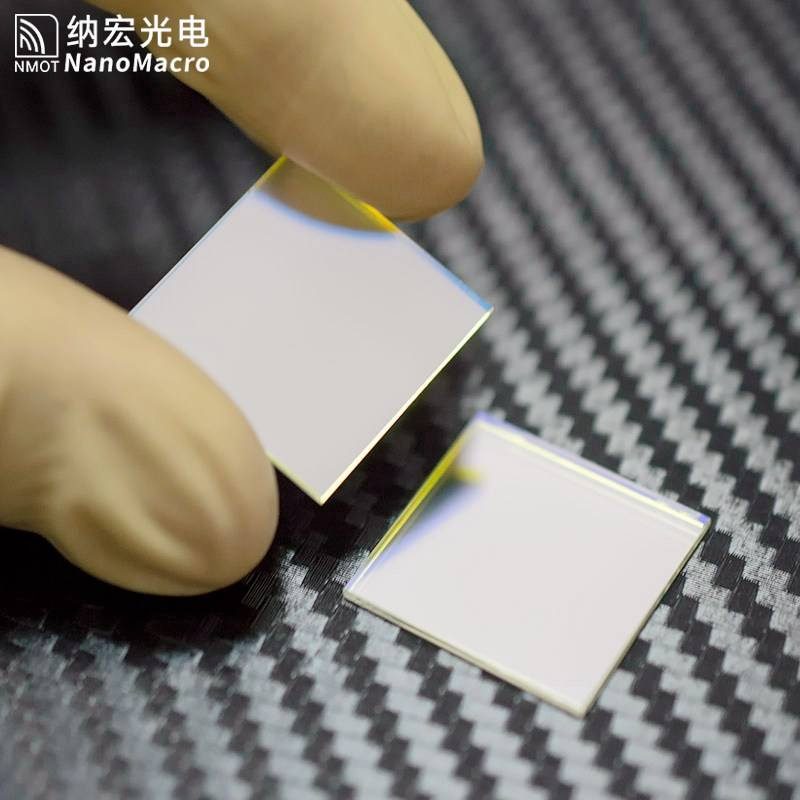

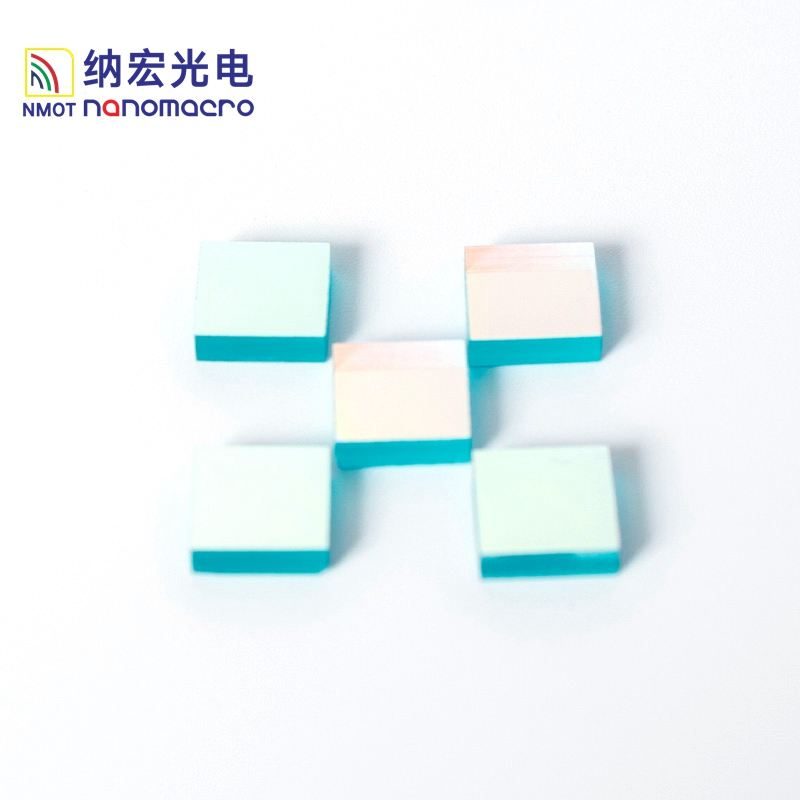

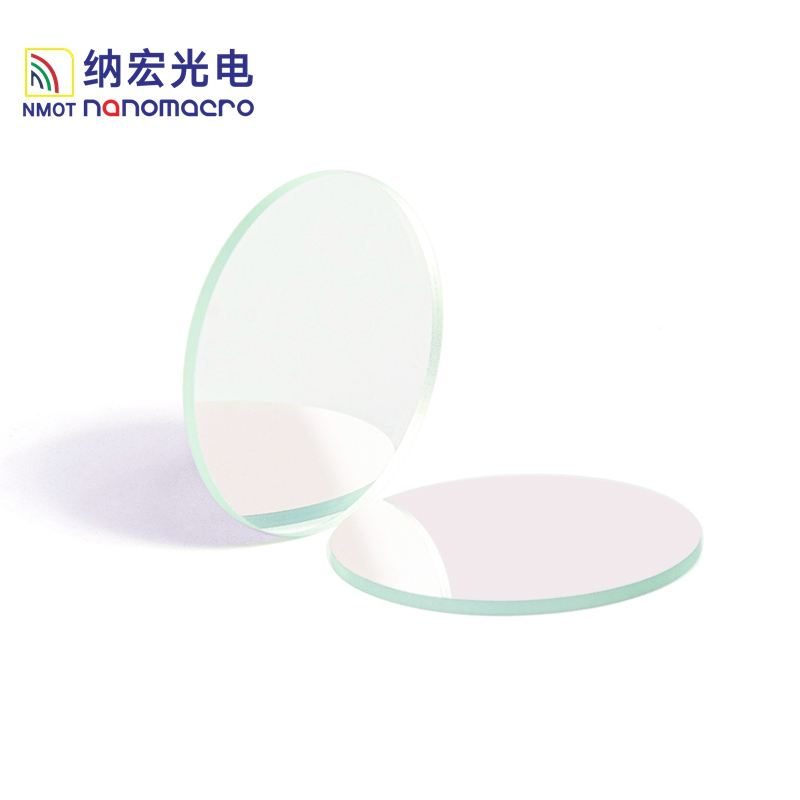

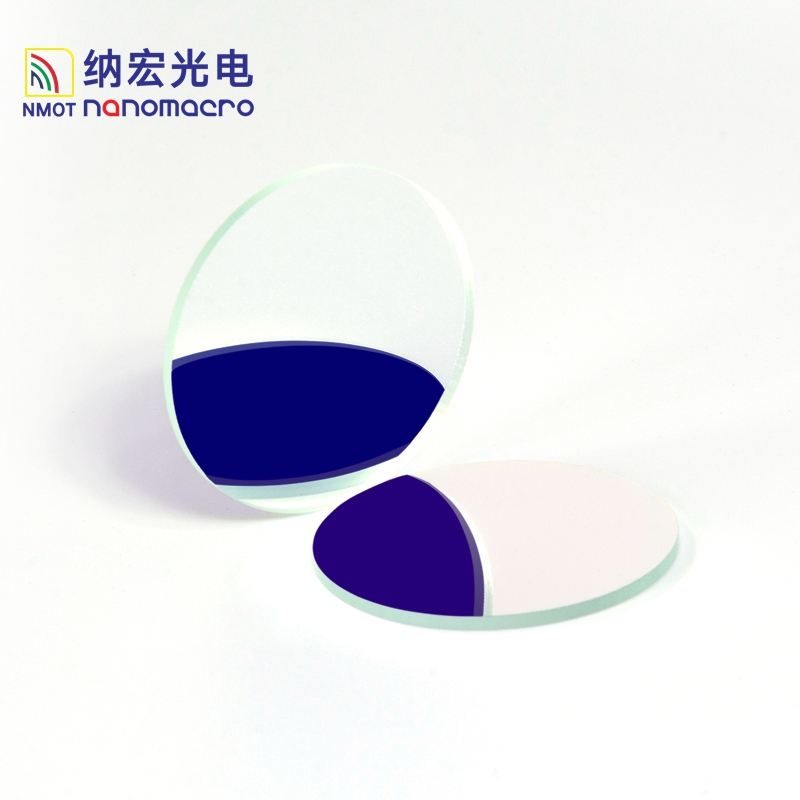

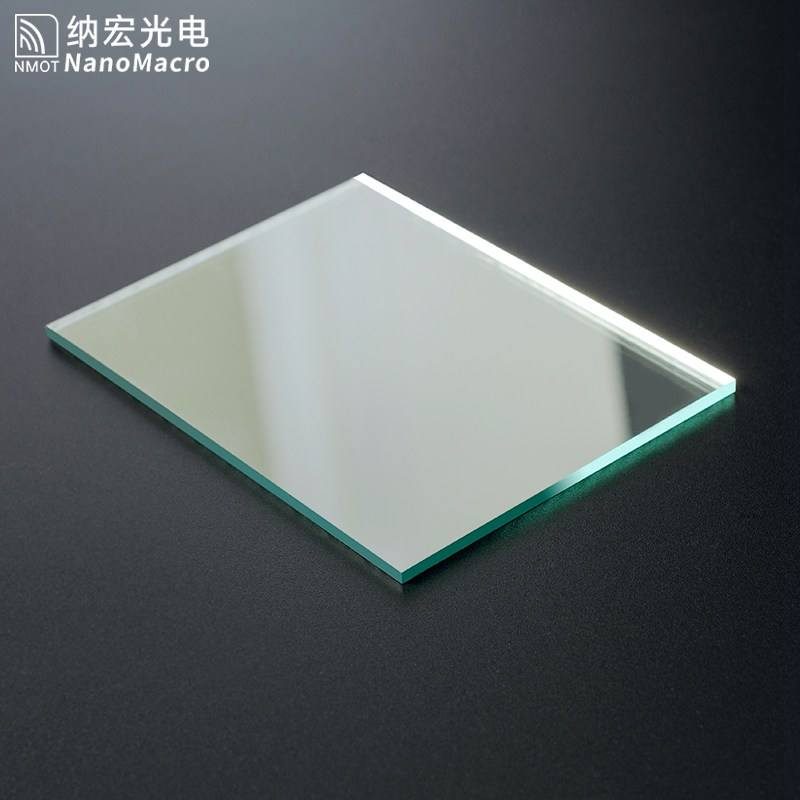

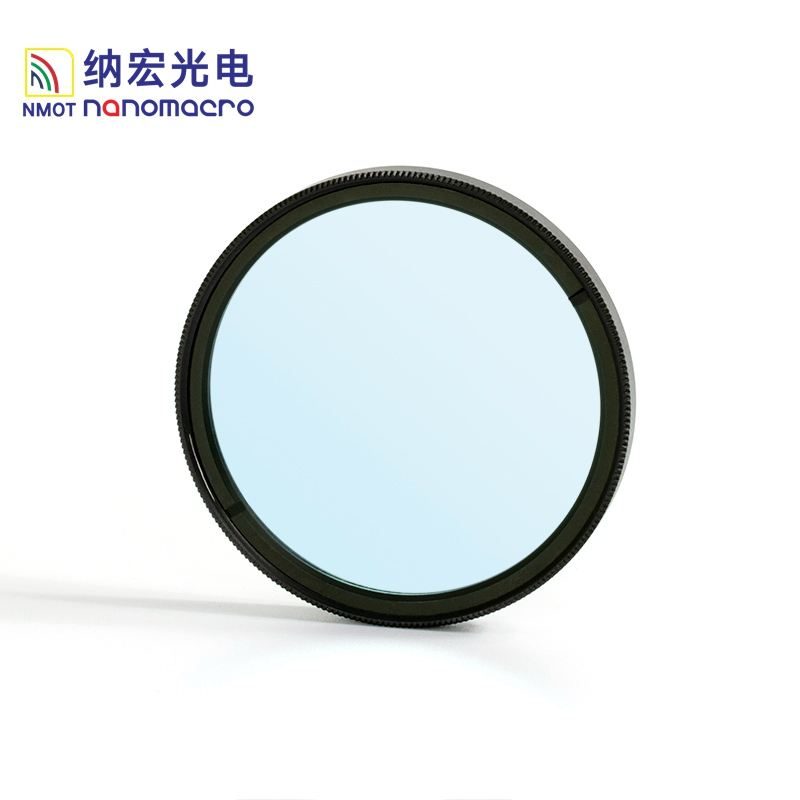

Custom Size Optical Glass Optical Filter
High-performance optical filter with 90% transmittance at 1940 nm, ideal for infrared applications.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Cwl
- 1940nm
- Coating
- hard-coat
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Cwl
- 1940nm
- Coating
- hard-coat
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm)
Product description
This optical filter is designed for applications requiring high transmittance in the infrared spectrum, specifically centered at 1940 nm. With a transmittance of over 90% and an optical density greater than 2, it effectively blocks unwanted wavelengths while allowing critical signals to pass through. Ideal for use in thermal imaging and gas sensing applications, this filter ensures reliable performance under various conditions.
Key Features
- High transmittance of 90% ensures maximum signal clarity.
- Center wavelength of 1940 nm is optimal for infrared applications.
- Optical density greater than 2 provides excellent blocking of out-of-band light.
- Hard-coat surface enhances durability and environmental resistance.
- Customizable FWHM of 10 nm allows for tailored spectral performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Cwl | 1940nm |
| Coating | hard-coat |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; T>90% |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Cwl | 1940nm |
| Fwhm | 10nm customized |
| Optical Density | OD>2 |
FAQ
Can I get custom sizes or thicknesses?
Customization options are available, including tailored FWHM.
What is the minimum order quantity?
Minimum order quantity details are not specified.
