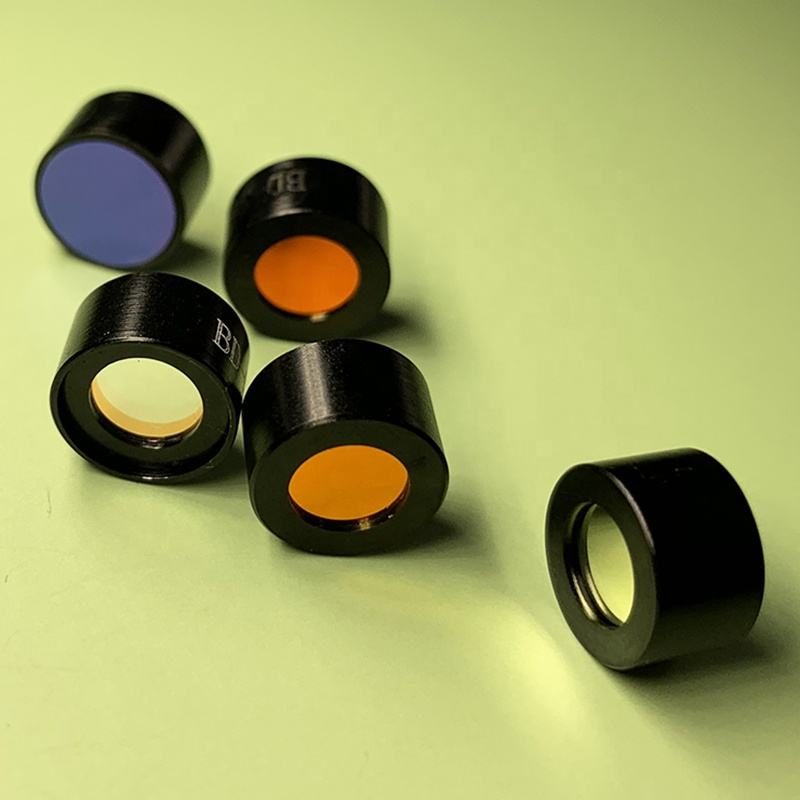

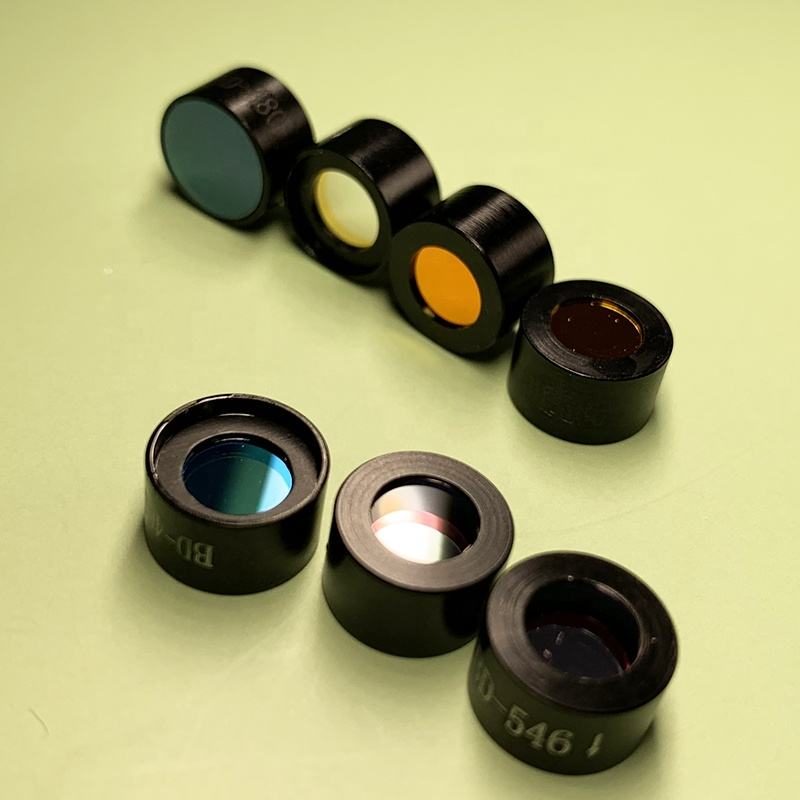

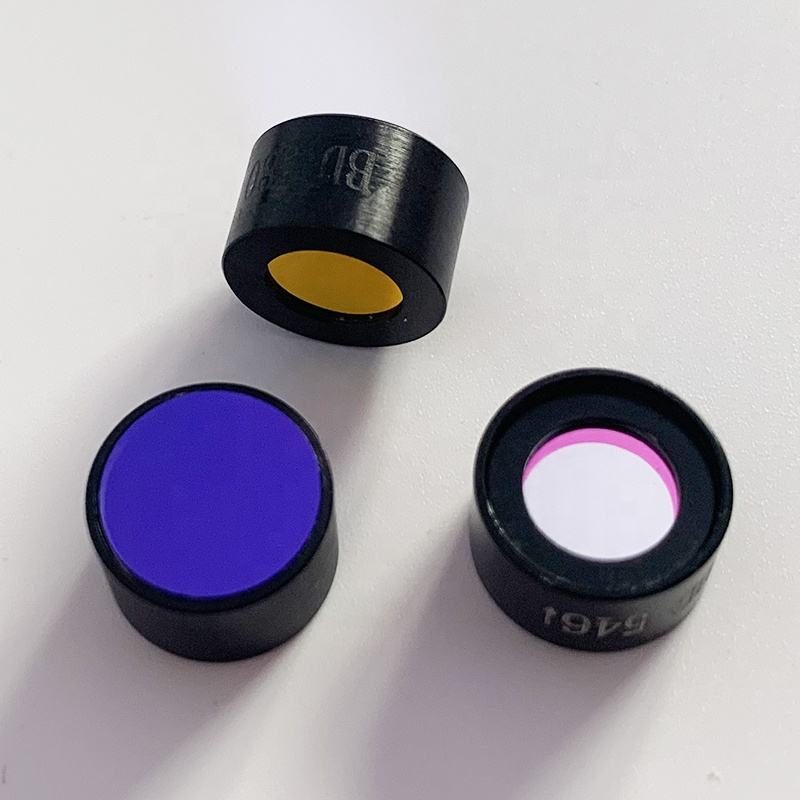

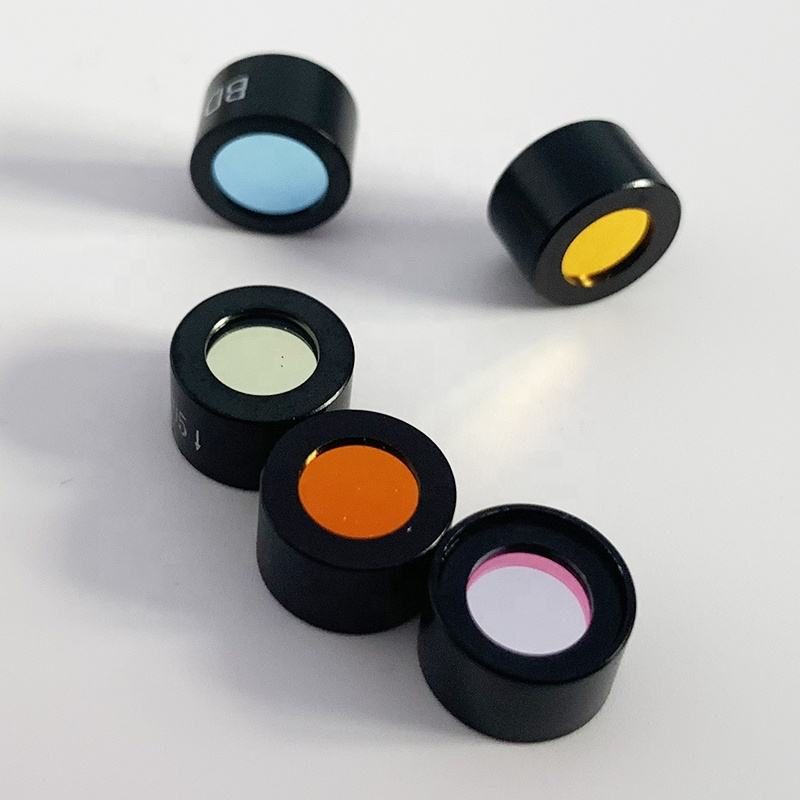

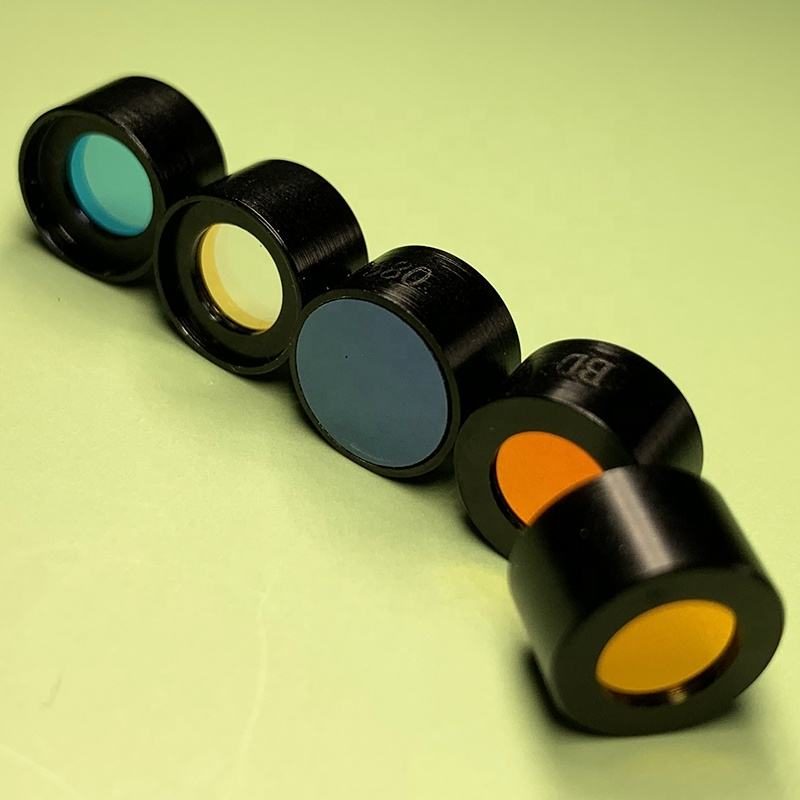

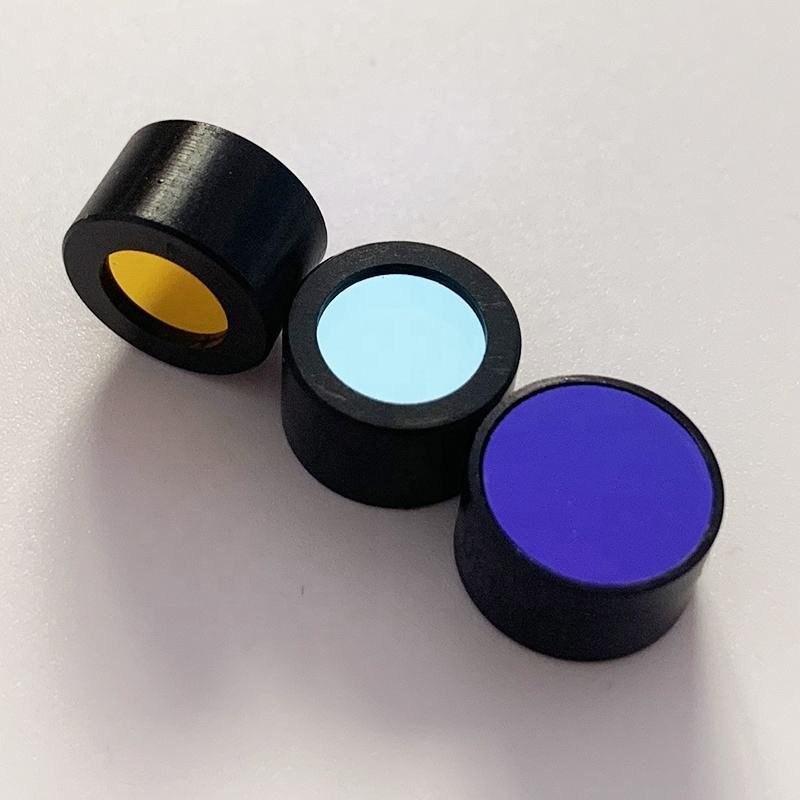

Custom Size Optical Glass Optical Filter
Bandpass filter for fluorescence and microscopy with 80% transmittance and OD6 blocking, customizable dimensions available.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 80%
- Filter Type
- bandpass
- Cwl
- 546nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 80%
- Filter Type
- bandpass
- Cwl
- 546nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is designed for applications in fluorescence and microscopy, effectively transmitting light in the 400-700 nm range with a center wavelength of 546 nm. With a transmittance of 80% and a blocking depth of OD6, it ensures high-quality imaging while minimizing unwanted light interference. The hard-coat finish enhances durability, making it suitable for various environmental conditions.
Key Features
- Center wavelength of 546 nm for optimal fluorescence applications.
- Transmittance of 80% ensures effective light passage for clear imaging.
- OD6 blocking depth minimizes interference from unwanted wavelengths.
- Hard-coat coating provides enhanced durability in demanding environments.
- Custom dimensions available to meet specific project requirements.
Applications
Fluorescence, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 80% |
| Filter Type | bandpass |
| Cwl | 546nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 80%; >=45% |
| Customized Support | OEM |
| Warranty | 3months |
| Dimension | as design |
| Tolerance | +-0.1mm or require |
| Cwl | as requirements |
| Fwhm | 8-10nm |
| Blocking | OD6 |
FAQ
Can I get custom sizes?
Yes, dimensions can be customized according to design specifications.
What is the tolerance for this filter?
The tolerance is ±0.1 mm or as required.
