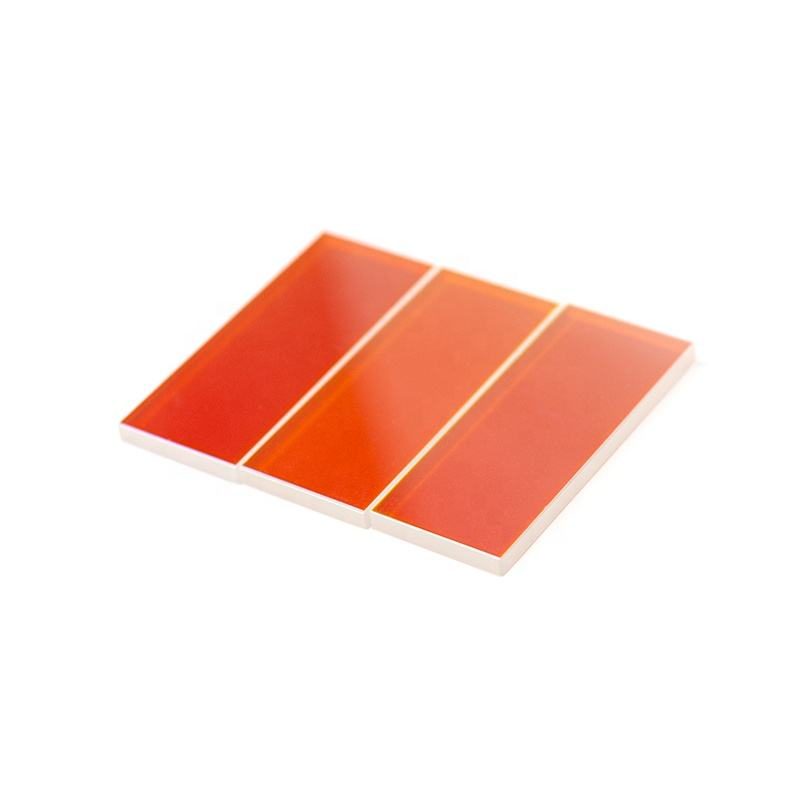

Custom Size Optical Glass Optical Filter
High-performance 675 nm bandpass filter for fluorescence applications with 90% transmittance and customizable FWHM.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 675nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 675nm
- Coating
- hard-coat
- Transmission bands
- VIS (400-700 nm)
Product description
This bandpass filter is specifically designed for fluorescence applications, effectively transmitting wavelengths around 675 nm while blocking unwanted light. With a high transmittance of 90%, it ensures optimal performance in fluorescence microscopy and related fields. The filter’s hard-coat enhances durability, making it suitable for various environmental conditions. Customizable options for FWHM between 10-60 nm allow for tailored solutions to meet specific application needs.
Key Features
- Transmittance of 90% ensures high light throughput for effective fluorescence imaging.
- Center wavelength of 675 nm fits well with common fluorescence excitation sources.
- Hard-coat coating provides enhanced durability against environmental factors.
- Customizable FWHM from 10-60 nm allows for specific application tuning.
- Optical Density of OD5-OD6 ensures excellent blocking of out-of-band wavelengths.
Applications
Fluorescence
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 675nm |
| Coating | hard-coat |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; T>90% |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Cwl | 675nm |
| Fwhm | 10-60nm customized |
| Cut Off Wavelength | 350-800nm |
| Optical Density | OD5-OD6 |
FAQ
Can I get custom sizes or thicknesses?
Customization options are available for FWHM between 10-60 nm.
What is the minimum order quantity?
Minimum order quantity information is not specified.
