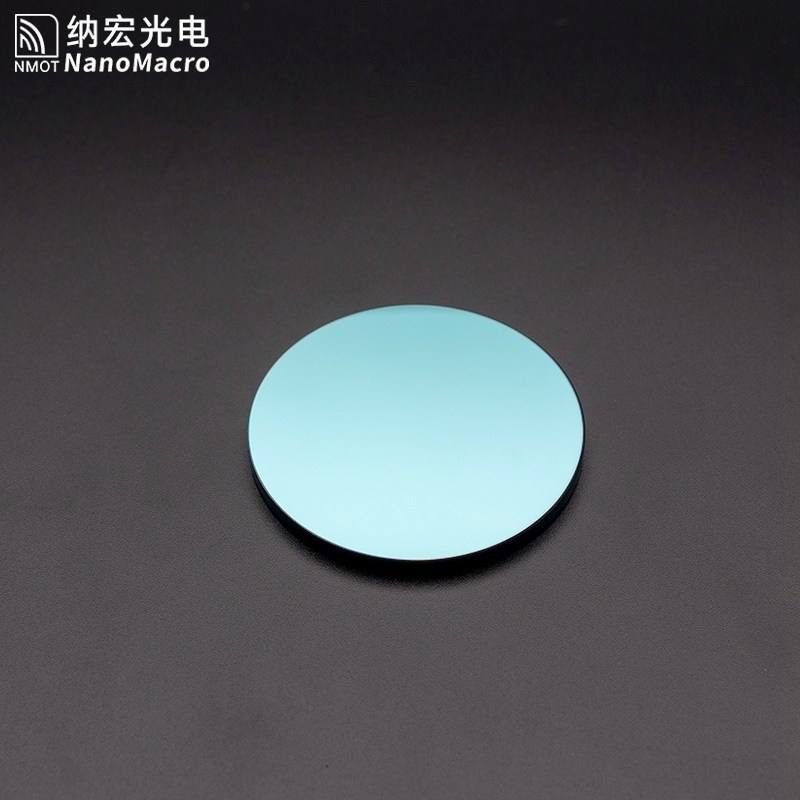

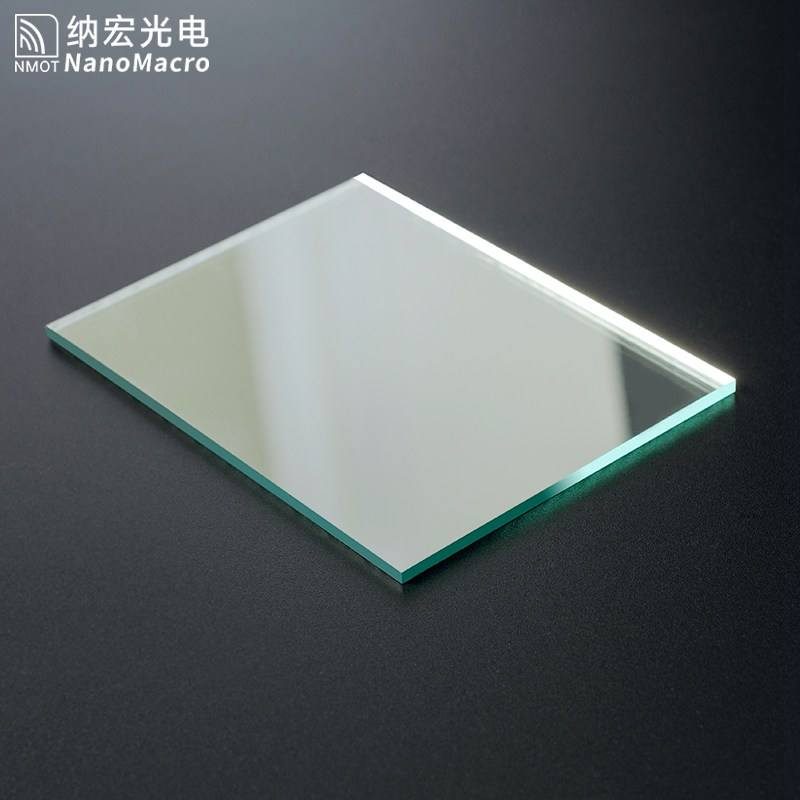

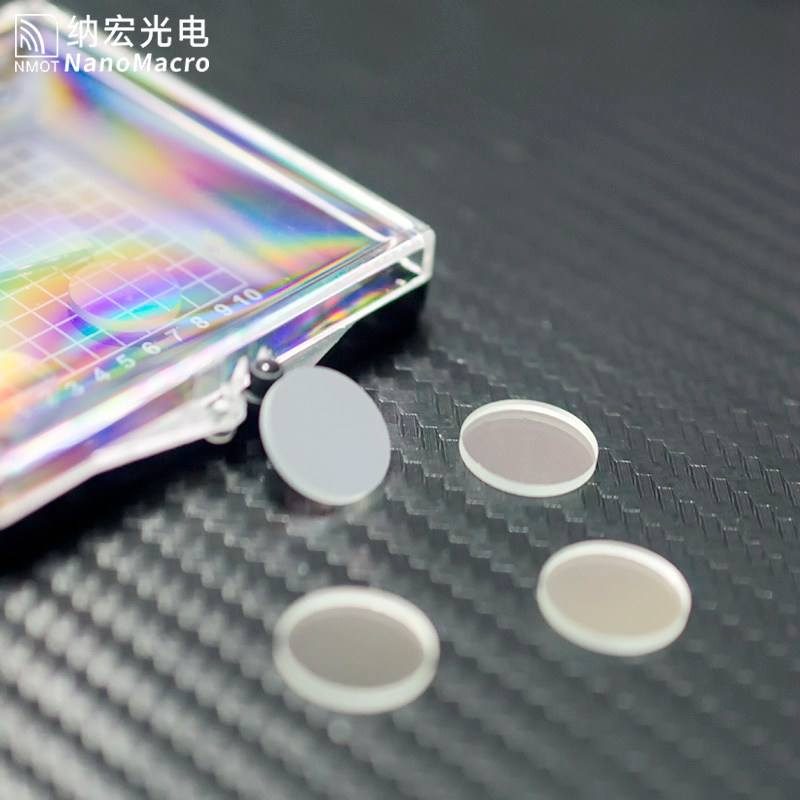

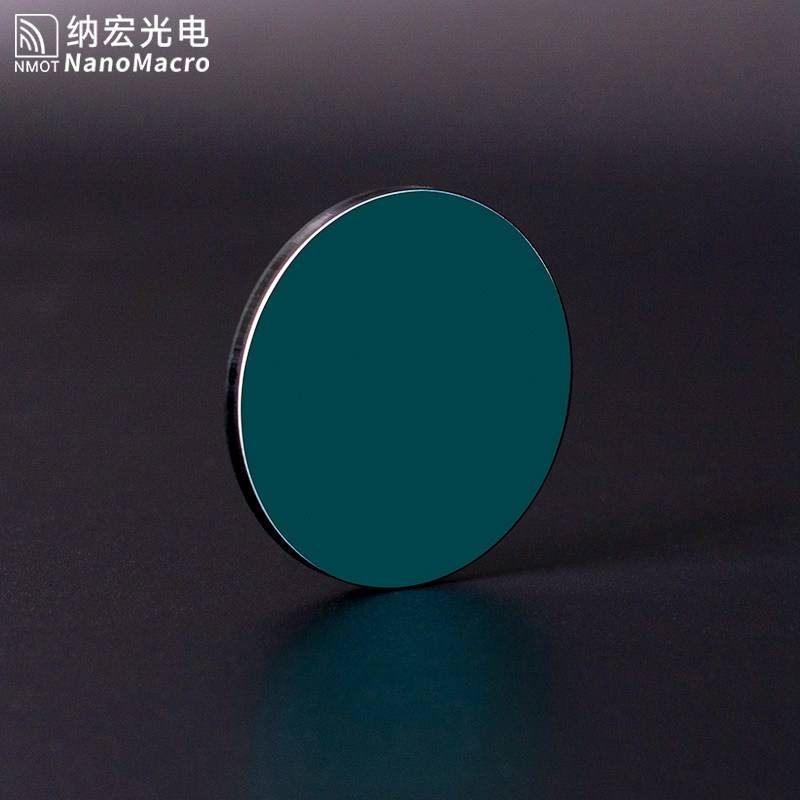

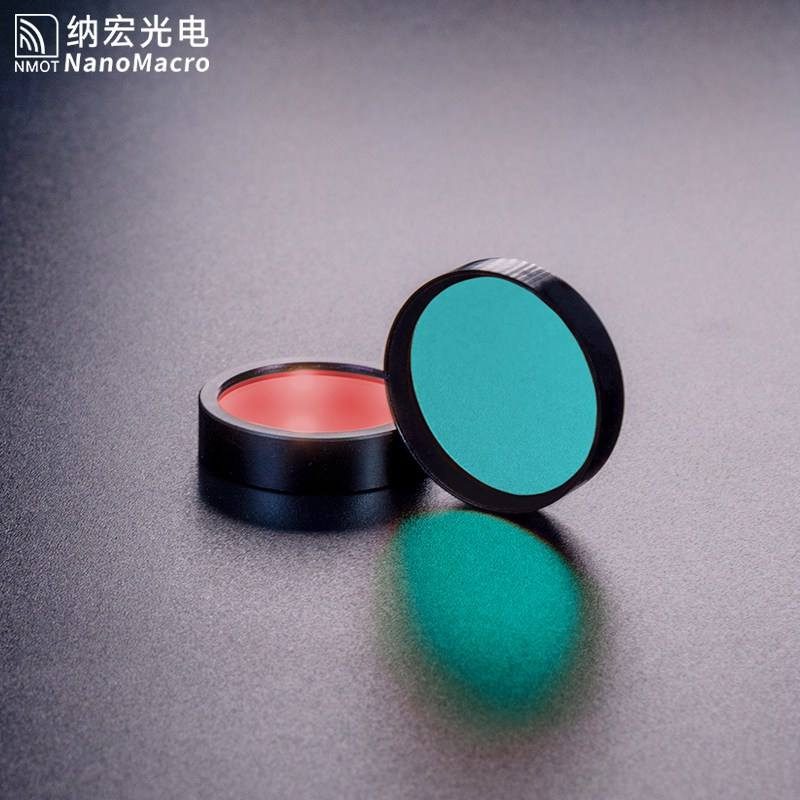

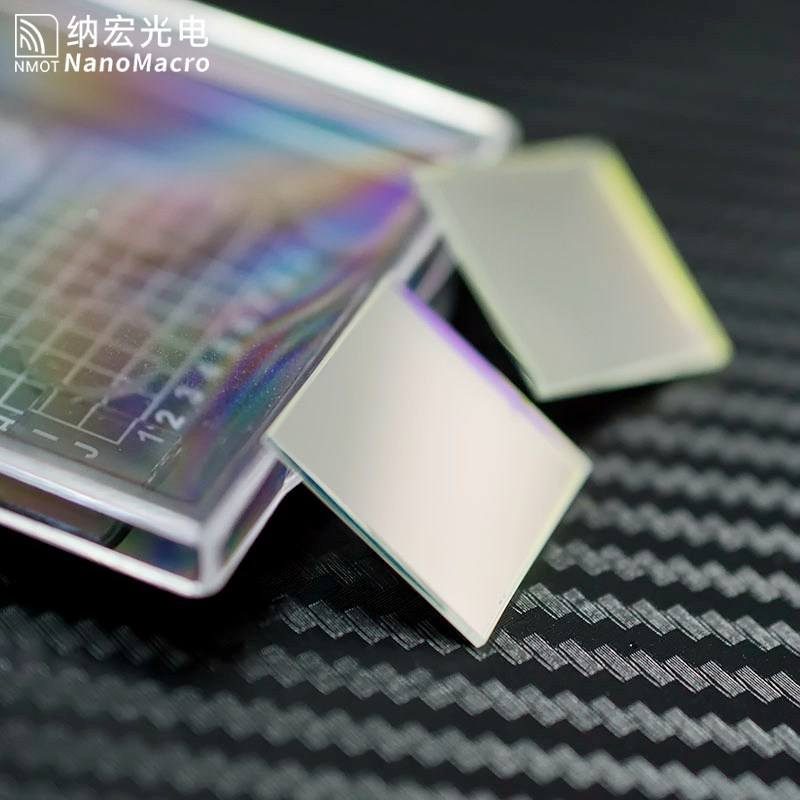

Custom Size Optical Glass Optical Filter

Product description

This bandpass filter is designed for laser applications, providing high transmittance of 90% at a center wavelength of 1533nm with a narrow FWHM of 10nm. It effectively blocks unwanted wavelengths outside the 0.7-1.7 μm range, ensuring optimal performance in fluorescence microscopy and other precision optical applications. Its robust optical glass construction ensures durability and reliability in various environments.

Key Features

High transmittance of 90% ensures efficient light throughput.
Bandpass filter type tailored for specific laser applications.
Effective blocking with an optical density greater than 3.
Customizable options available for OEM and ODM projects.
Designed for a wide range of wavelengths from 800-1750nm.

Applications

Laser

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	80/50
Transmittance	90%
Filter Type	bandpass
Cwl	1533nm
Fwhm	10nm
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	90%; T>90%
Customized Support	OEM, ODM
Warranty	1 year
Cwl	1533nm
Cut Off Wavelength	800-1750nm
Optical Density	OD>3

FAQ

Can I get custom sizes?

Custom sizes and thicknesses are available through OEM and ODM support.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
