1 / 6Optical Filters

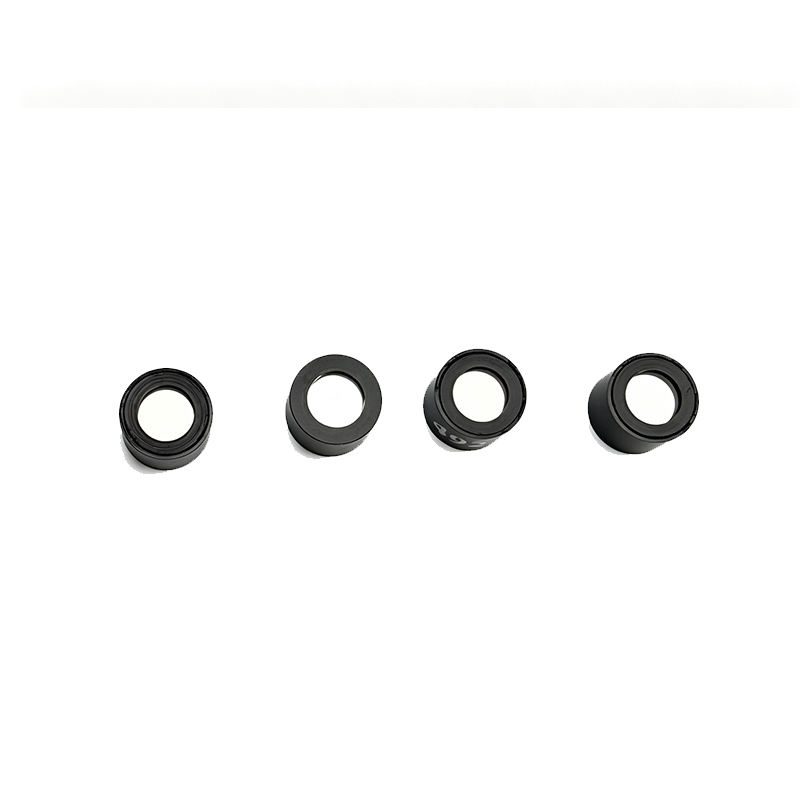

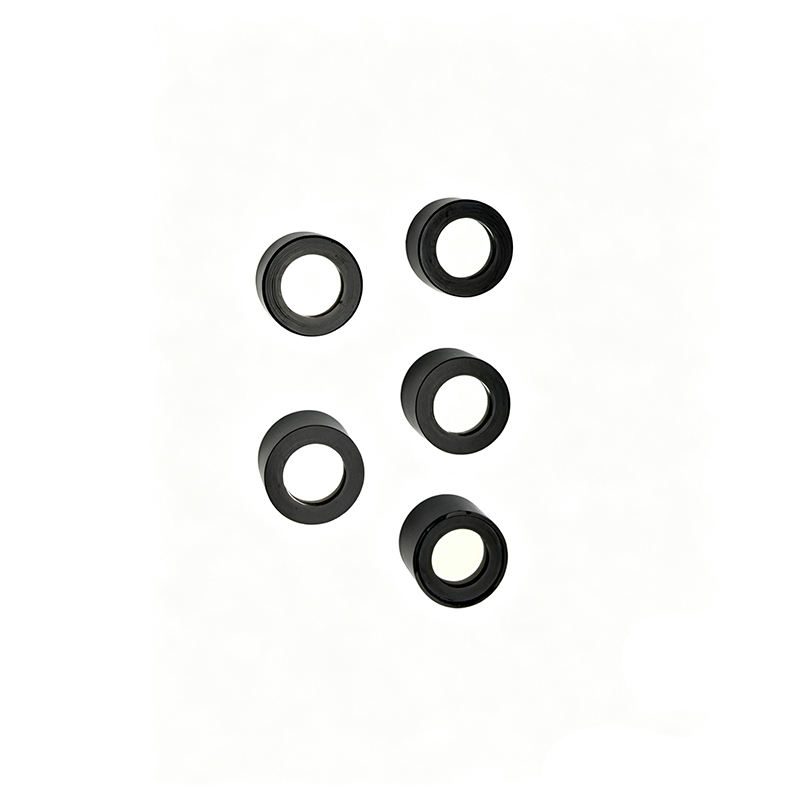

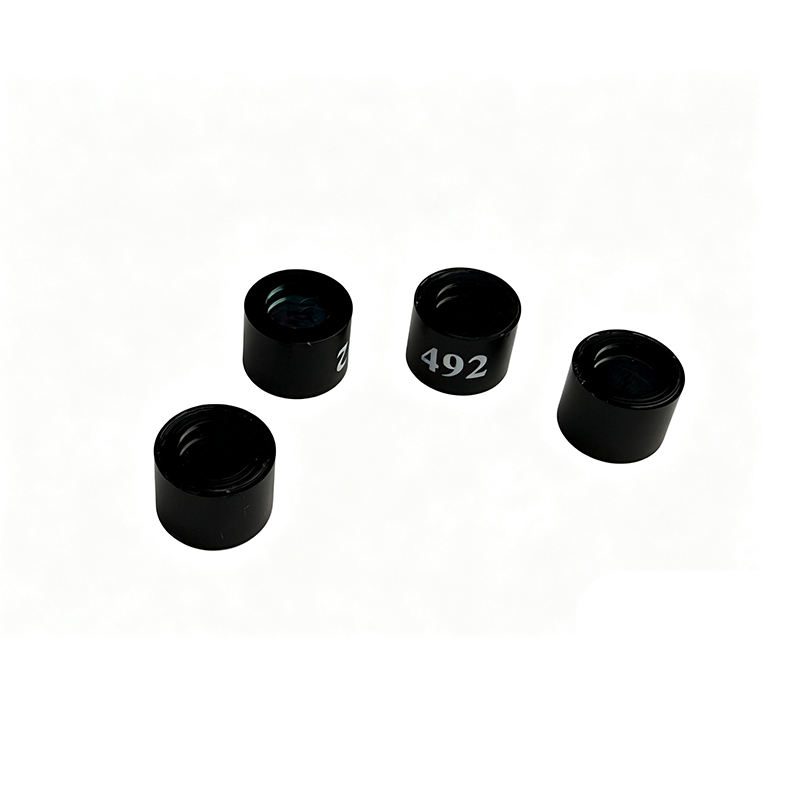

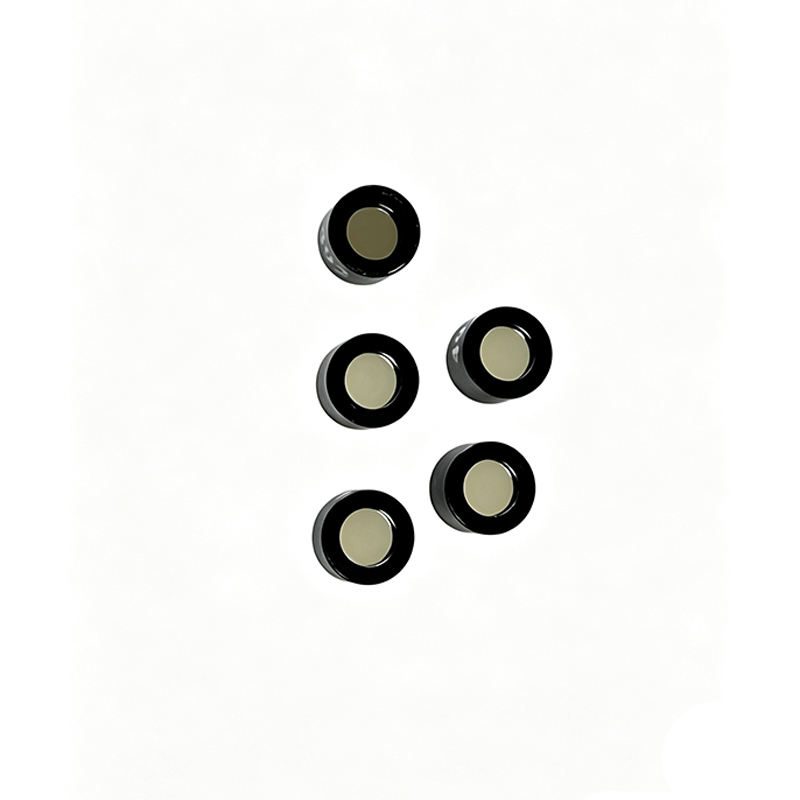

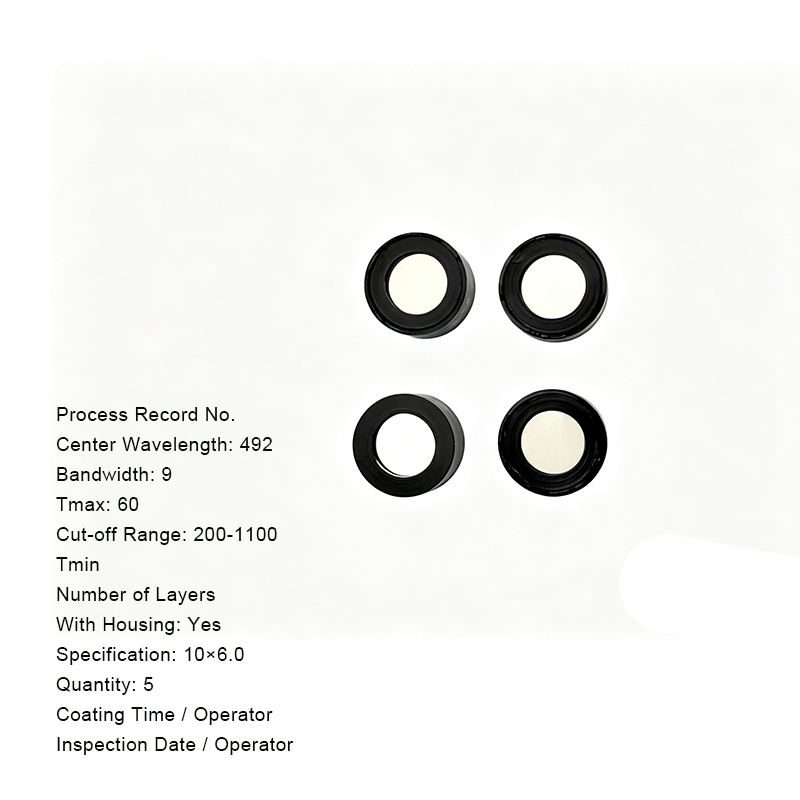

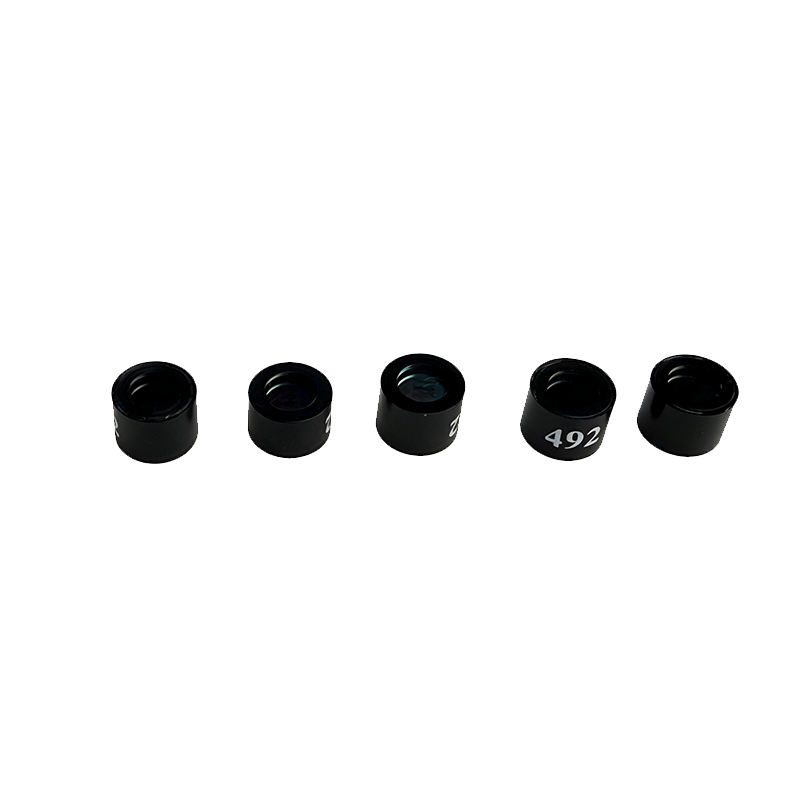

Custom Size Optical Glass Optical Filter
High-performance bandpass filter with 80% transmittance, ideal for biochemical applications and customizable solutions.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 80%
- Filter Type
- bandpass
- Cwl
- 577.5nm
- Fwhm
- 60nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 80%
- Filter Type
- bandpass
- Cwl
- 577.5nm
- Fwhm
- 60nm
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the visible spectrum, specifically centered at 577.5 nm with a FWHM of 60 nm. It is ideal for biochemical detection and other applications within the 400-700 nm range. With an 80% transmittance, it ensures excellent visibility for precise measurements, making it suitable for fluorescence microscopy and other optical applications.
Key Features
- Center Wavelength: 577.5 nm for targeted spectral performance.
- FWHM: 60 nm for effective bandwidth coverage.
- Transmittance: 80% ensuring high visibility and measurement accuracy.
- Material: Optical glass for superior optical properties.
- Customizable: OEM options available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 80% |
| Filter Type | bandpass |
| Cwl | 577.5nm |
| Fwhm | 60nm |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 80%; 60-90% |
| Customized Support | OEM |
| Warranty | 3 Years |
| Center Wavelength | 492 |
FAQ
Can I get custom sizes?
Yes, customizable solutions are available through OEM options.
What is the minimum order quantity?
Minimum order quantity details are not specified.
