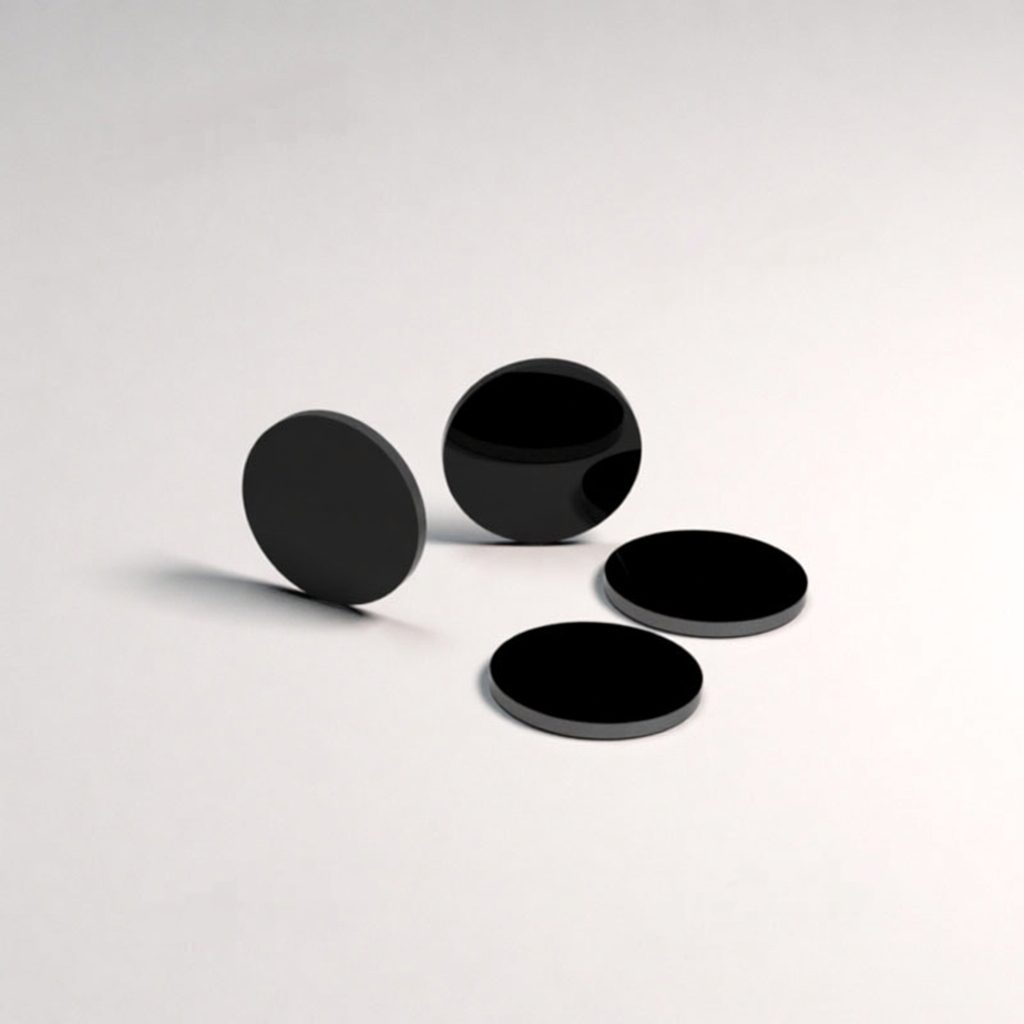

Custom Size Optical Glass Optical Filter

Product description

This bandpass filter is designed to effectively isolate wavelengths around 850 nm, making it ideal for applications in fluorescence microscopy and other optical systems operating within the 0.7-1.7 μm range. With a high transmittance of 90%, it ensures maximum light throughput while blocking unwanted wavelengths. Its customizable features allow for tailored solutions to meet specific application requirements.

Key Features

High transmittance of 90% ensures efficient light passage.
Customizable center wavelength (CWL) at 850 nm for precise spectral fit.
FWHM options from 10-50 nm enable tailored bandwidth selection.
Supports OEM, ODM, and OBM for flexible sourcing solutions.
Bevel customization (0.1-0.3 mm at 45 degrees) for specific installation needs.

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Transmittance	90%
Filter Type	bandpass
Cwl	850nm
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	90%; As requirements
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Transmission	T>93%
Bevel	0.1-0.3mm X45 Degree as require
Fwhm	10-50nm /Custom

FAQ

Can I get custom sizes or thicknesses?

Yes, this filter can be customized for specific sizes and thicknesses.

What is the minimum order quantity (MOQ)?

The MOQ is not specified; please inquire for details.
