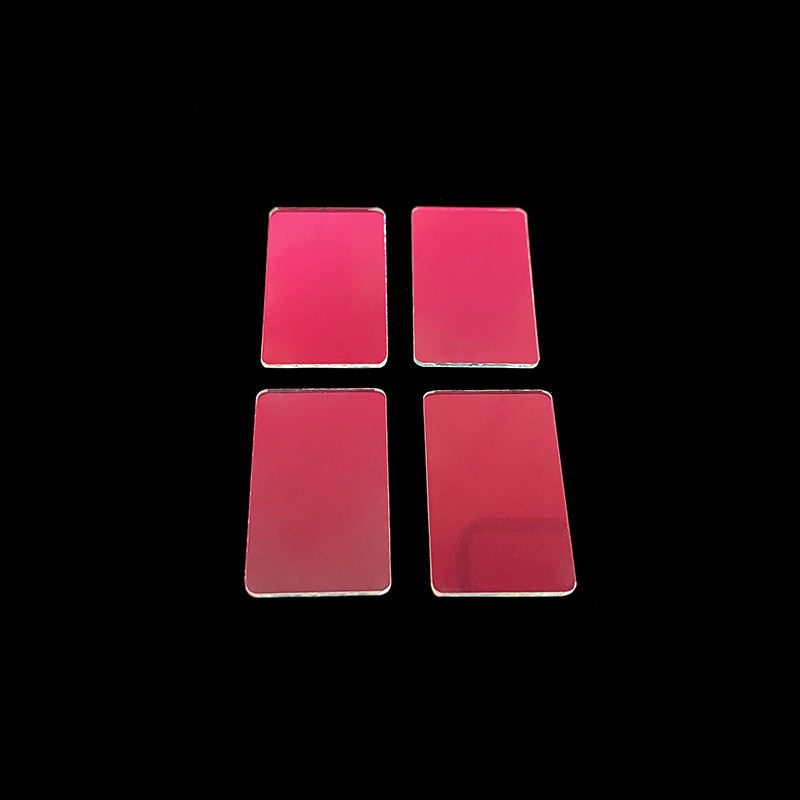

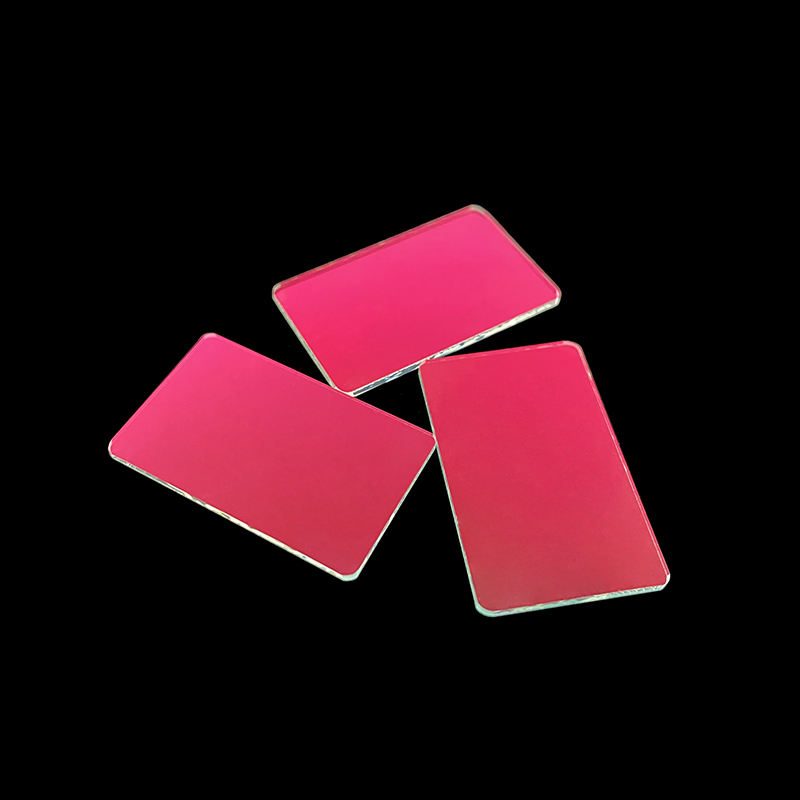

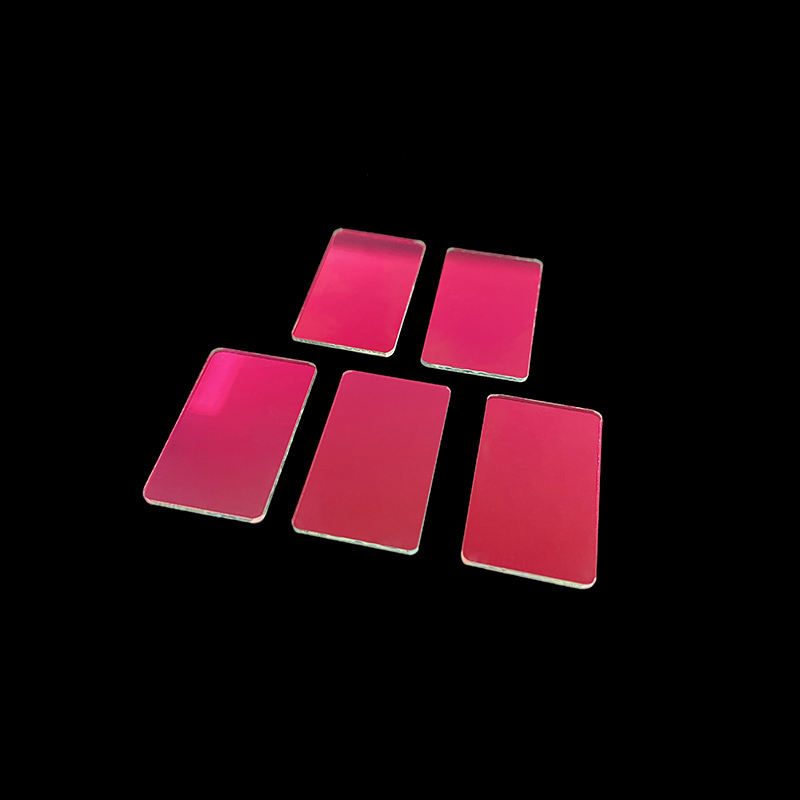

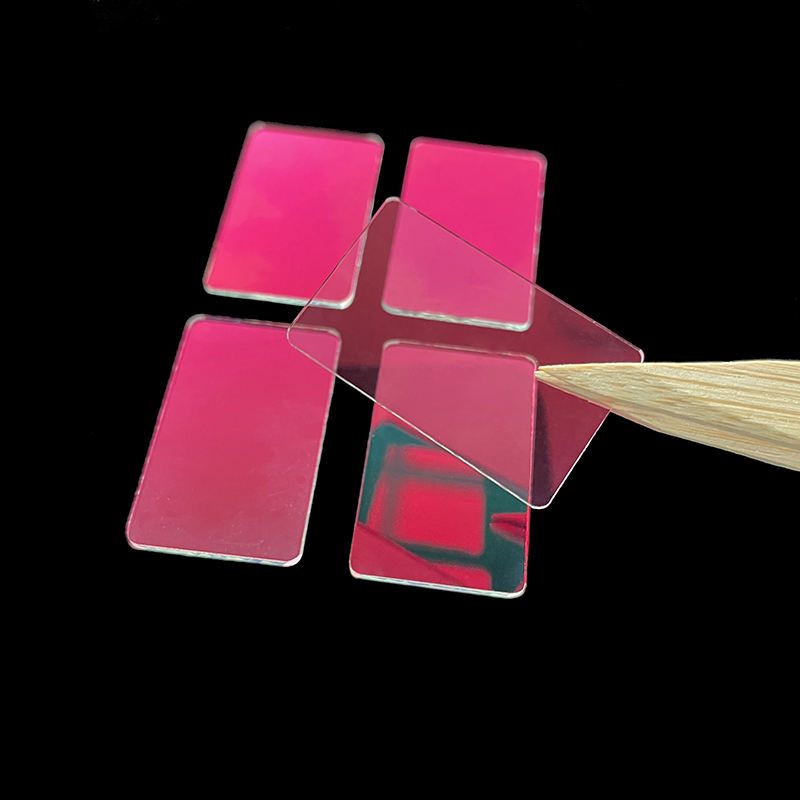

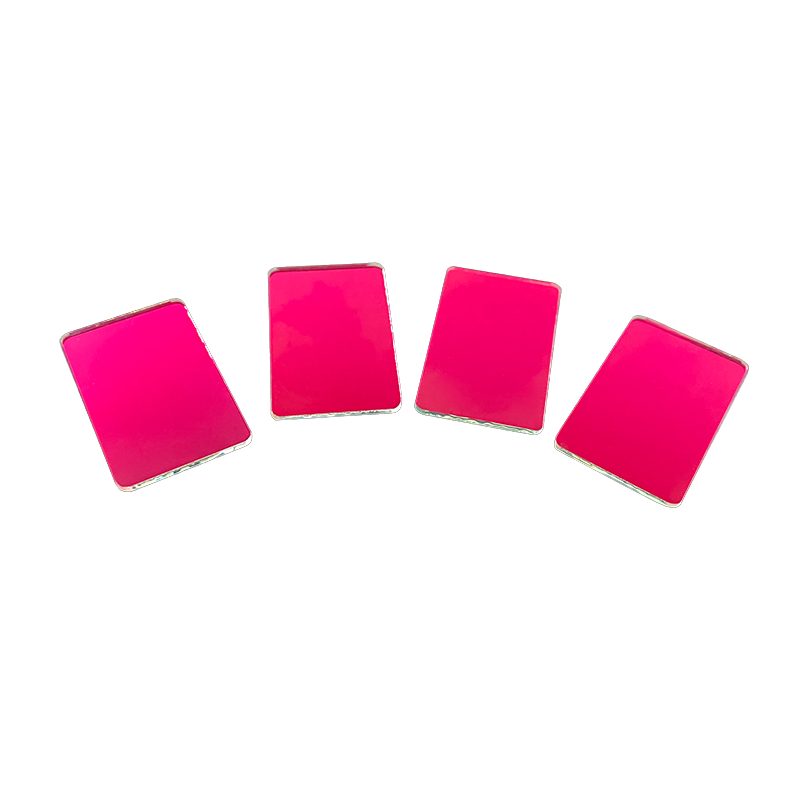

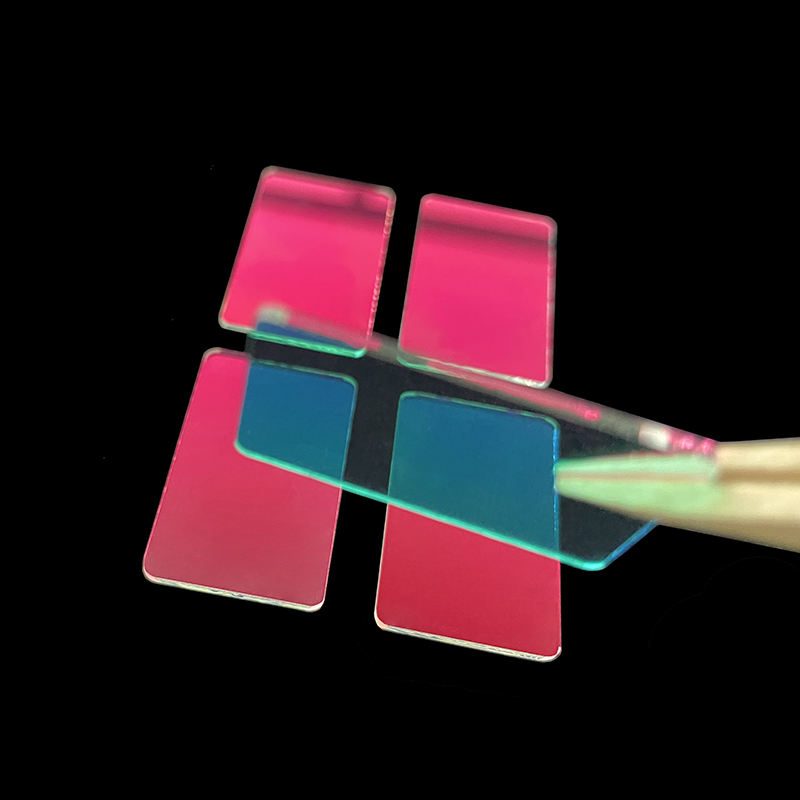

Custom Size Optical Glass Optical Filter

Product description

This bandpass filter is designed for applications in laser systems, particularly effective in the 0.7-1.7 μm range. With a center wavelength of 920 nm and a full width at half maximum (FWHM) of 10 nm, it ensures precise spectral fit for various laser applications. The filter’s optical glass construction offers durability and reliability, making it suitable for demanding environments.

Key Features

Bandpass filter type optimized for laser applications.
Center wavelength of 920 nm with a FWHM of 10 nm for precise spectral selection.
Surface quality of 40/20 ensures minimal distortion in optical performance.
Clear aperture ranging from 80% to 95% for enhanced light transmission.
Centration tolerance of <3 Arcmin for accurate alignment in optical systems.

Applications

Laser

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	40/20
Filter Type	bandpass
Cwl	920nm
Fwhm	10nm
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Transmittance	customized
Clear Aperture	80%~95%
Centration	<3 Arcmin
Color	Clear Transparent
Radius Tolerance	+/-0.5%
Use	laser lidar,prospecting instrument,sensor

FAQ

Can I get custom sizes for this filter?

Custom sizes are available upon request, supporting OEM, ODM, and OBM options.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
