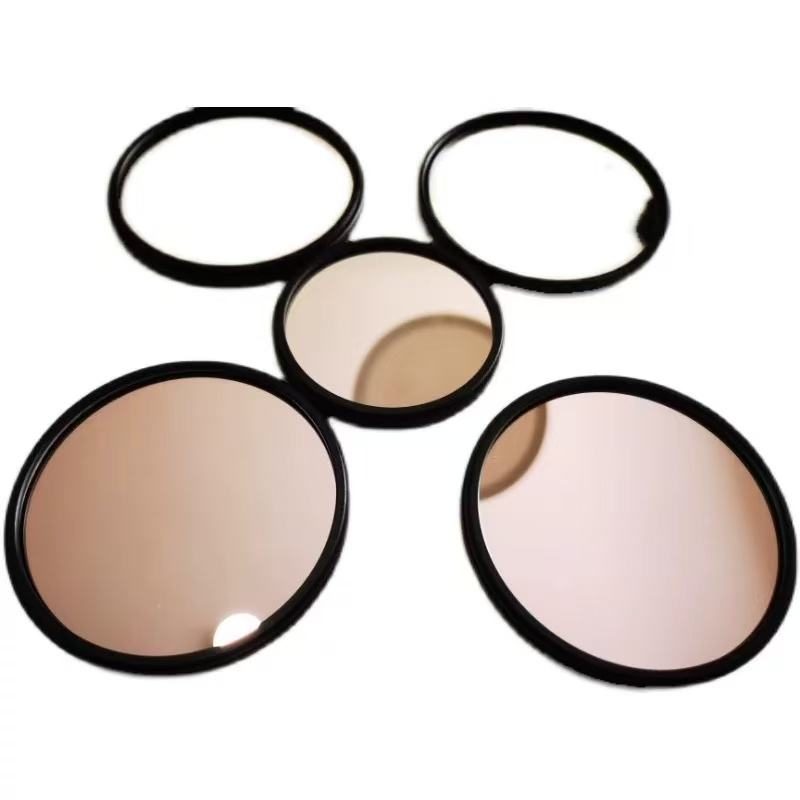

Custom Size Optical Glass Optical Filter

Product description

The longpass filter, with a center wavelength of 840 nm, is designed to effectively transmit wavelengths from 0.7 to 1.7 μm while blocking shorter wavelengths. This filter is ideal for applications in fluorescence microscopy and other optical systems requiring high transmittance. With a 90% transmittance and an optional 95%, it ensures optimal performance in light-sensitive environments.

Key Features

Center wavelength at 840 nm for precise spectral fit in optical applications.
High transmittance of 90% (up to 95%) ensures maximum light throughput.
Longpass filter type effectively blocks unwanted shorter wavelengths.
Surface quality rated at 60/40 for reliable optical performance.
Custom options available for FWHM (30 nm or custom) to meet specific needs.

Specification Summary

Item	Value
Material	Optical Glass
Size	Custom
Thickness	Custom
Surface Quality	60/40
Transmittance	90%
Filter Type	longpass
Cwl	840nm

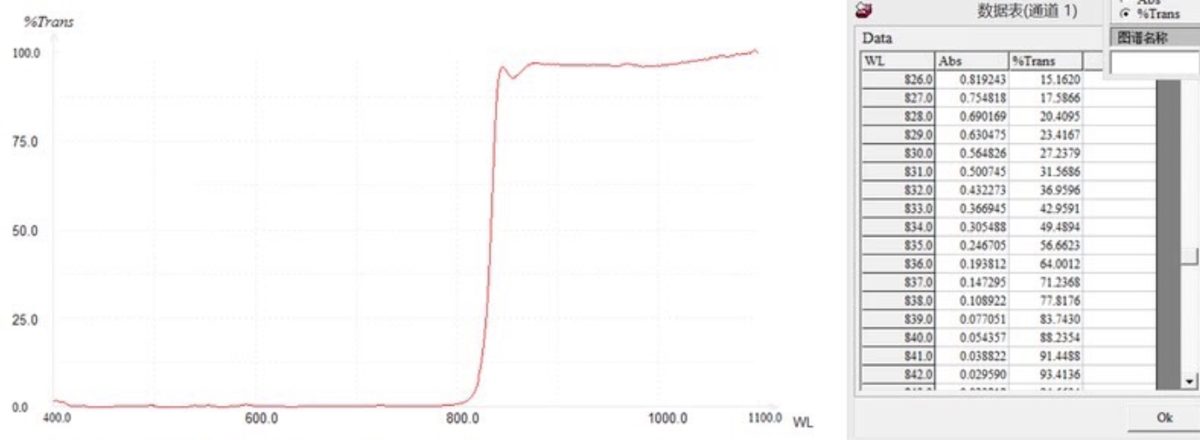

Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Transmittance	90%; 95%
Customized Support	OEM, ODM
Warranty	3 Years
Type	Bandpass Filter
Substrate	Glass
Wavelength	840nm
Fwhm	30nm or custom
Transmission	95%

FAQ

Can I get custom sizes and thicknesses?

Custom sizes and thicknesses are available upon request.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
