1 / 6Optical Filters

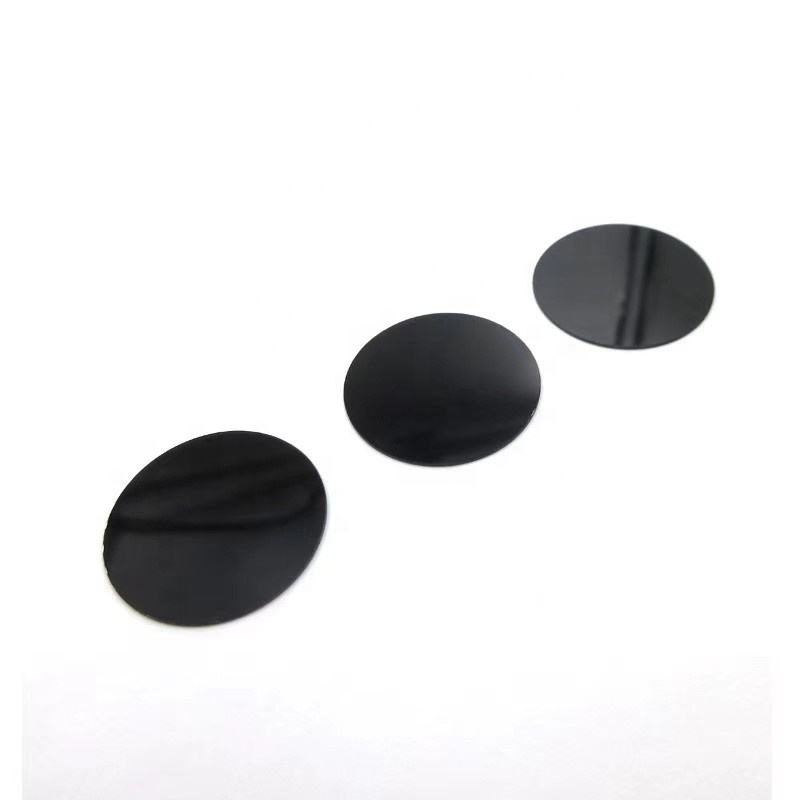

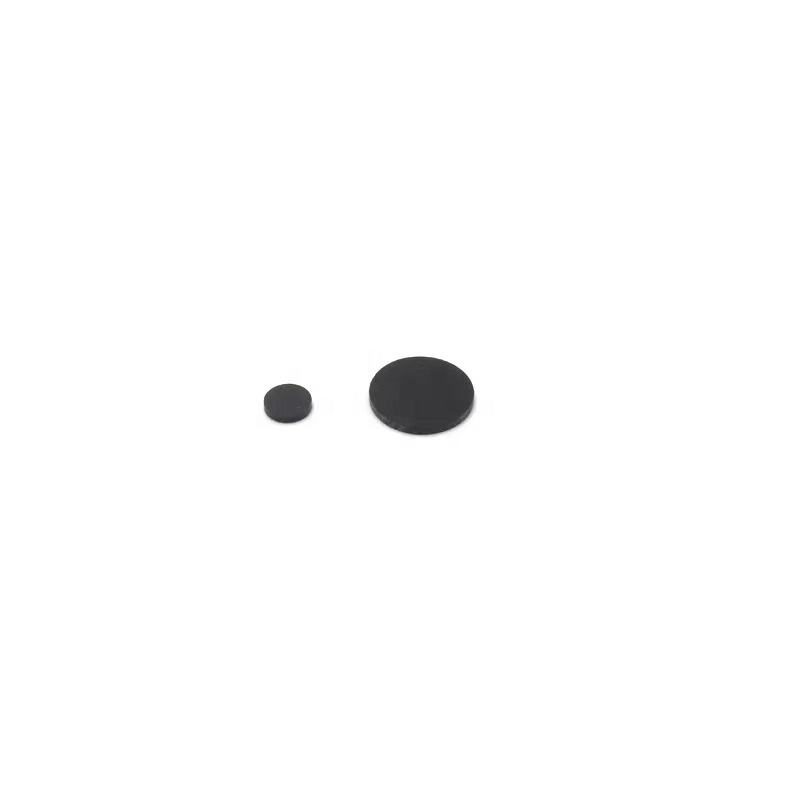

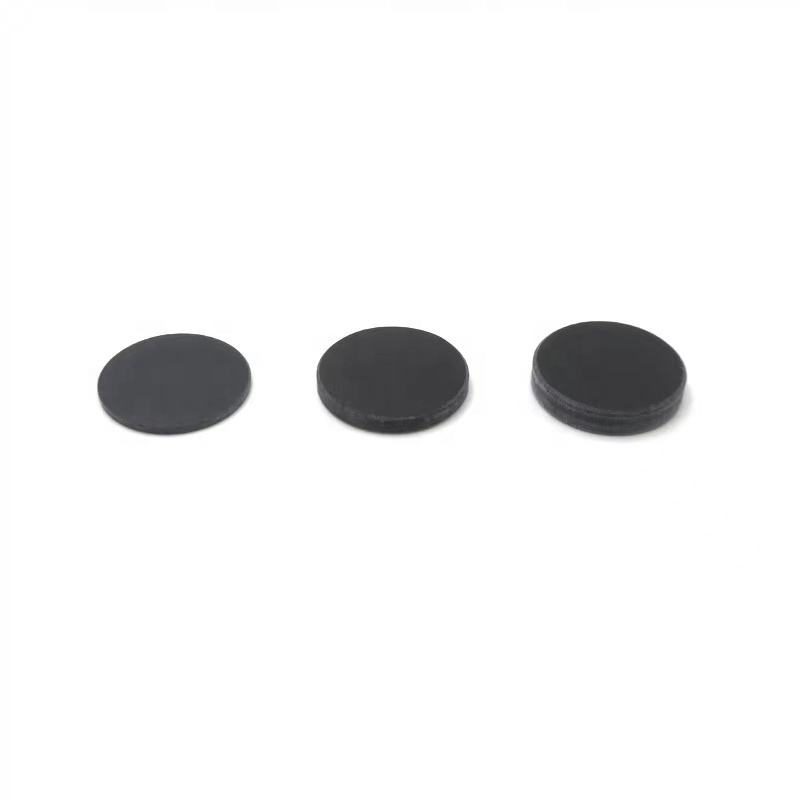

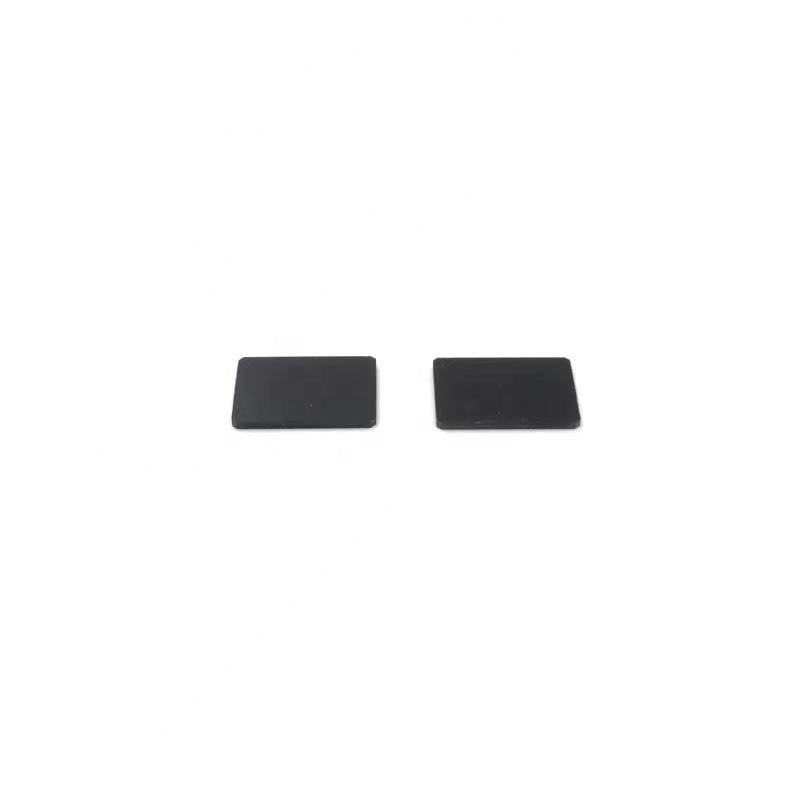

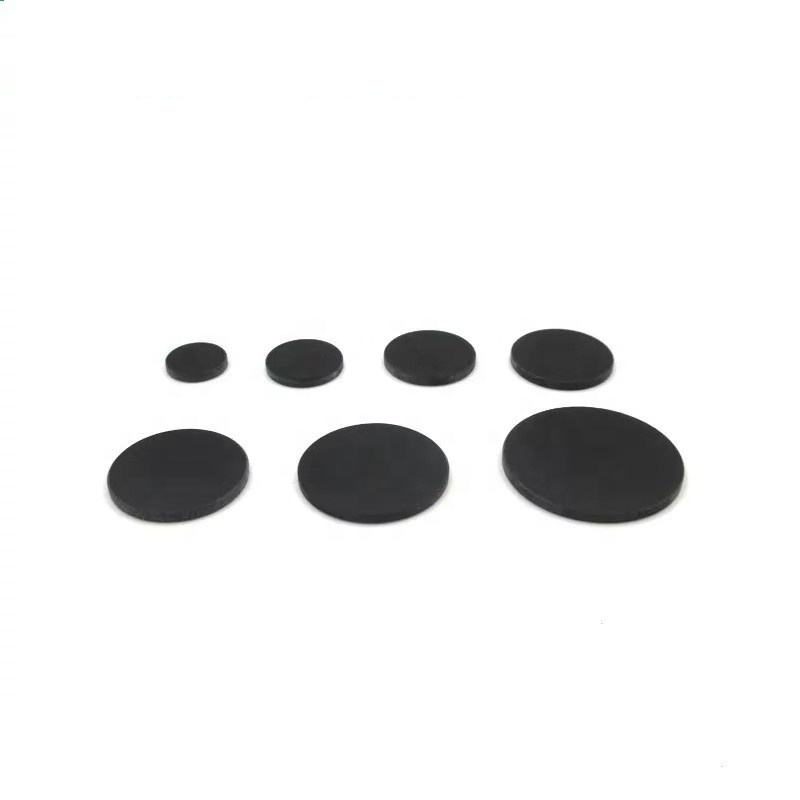

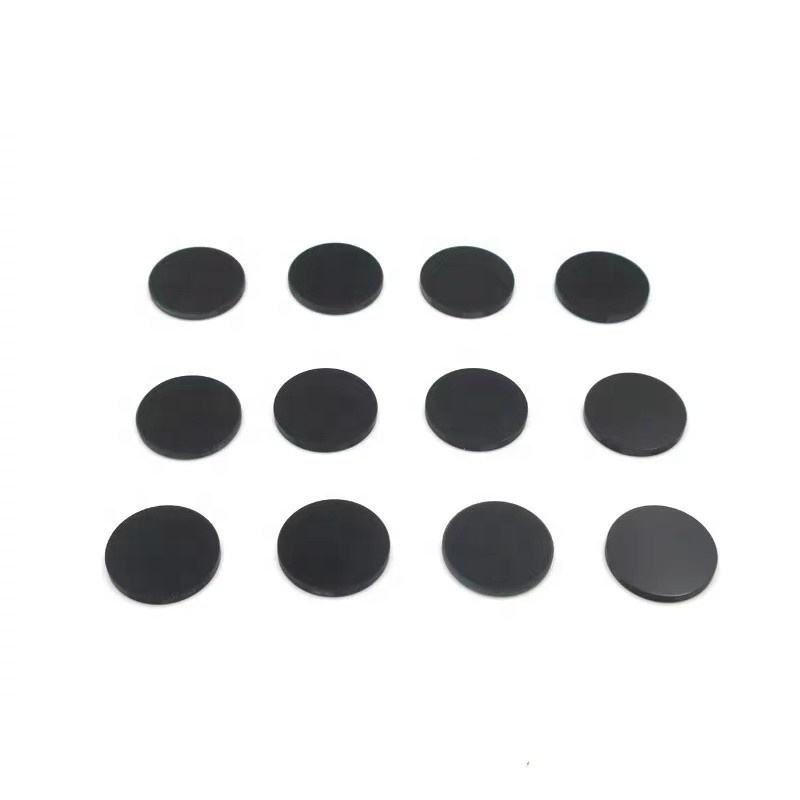

Custom Size Optical Glass Optical Filter
Longpass filter with 90% transmission at 950nm, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 950nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 90%
- Filter Type
- longpass
- Cwl
- 950nm
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This longpass filter is designed to effectively transmit light above 950 nm, making it ideal for applications in fluorescence microscopy and other optical systems requiring high transmittance. With a 90% transmission rate and a wavelength range of 0.7-1.7 μm, it ensures optimal performance in capturing desired wavelengths while blocking unwanted lower wavelengths. The filter’s optical glass substrate provides durability and reliability for consistent results in various environments.
Key Features
- Transmittance: 90% - Ensures high light transmission for effective imaging.
- Type: Longpass Filter - Ideal for applications requiring selective wavelength transmission.
- Wavelength: 950nm - Perfectly suited for systems operating in the near-infrared range.
- Customized Support: OEM, ODM - Options available for tailored solutions to fit specific needs.
- FWHM: 30nm - Provides a defined bandwidth for precise wavelength selection.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Filter Type | longpass |
| Cwl | 950nm |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90% |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Type | long pass Filter |
| Substrate | Glass |
| Wavelength | 950nm |
| Fwhm | 30nm |
| Transmission | 90% |
FAQ
Can I get custom sizes or thicknesses for this filter?
Custom sizes and thicknesses are available through OEM and ODM options.
What is the minimum order quantity (MOQ) for this filter?
The minimum order quantity is not specified; please inquire for details.
