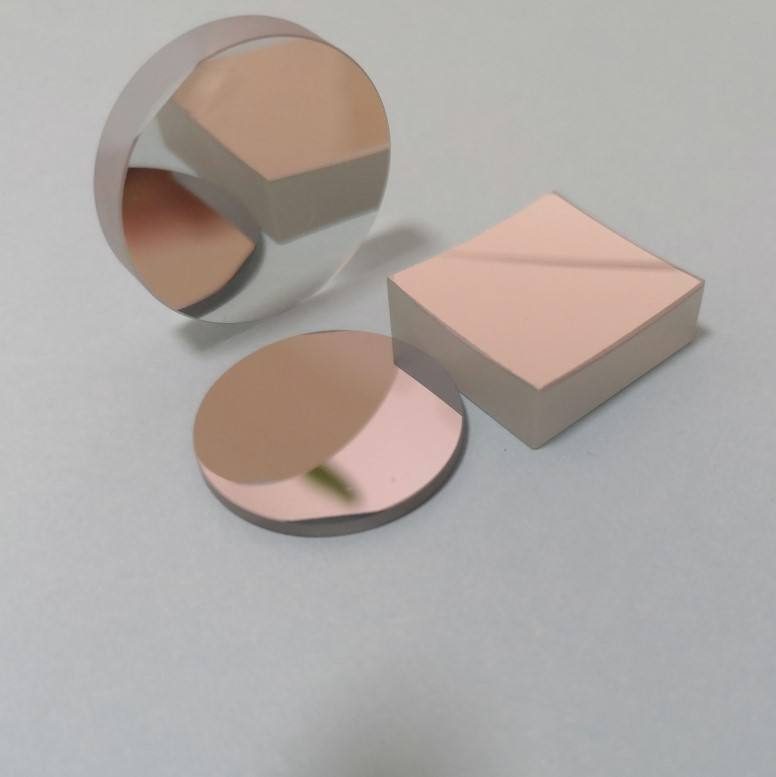

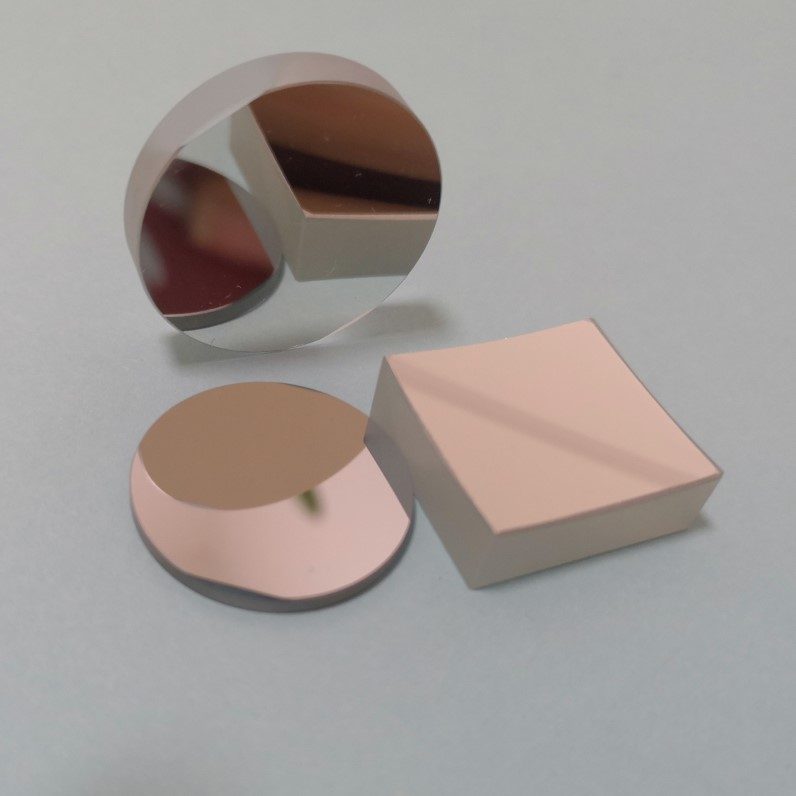

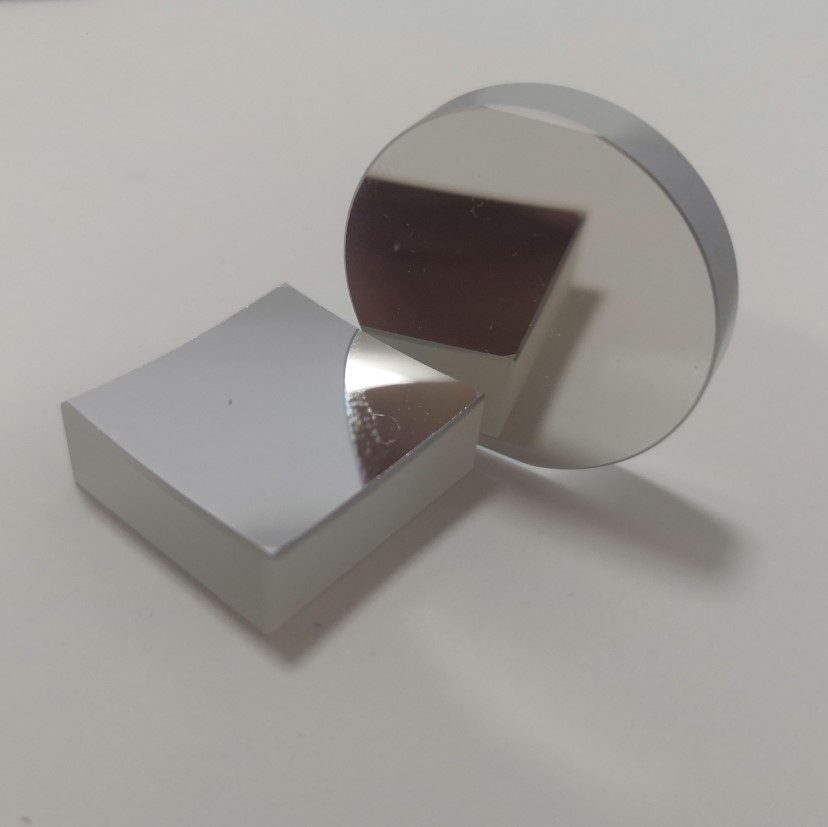

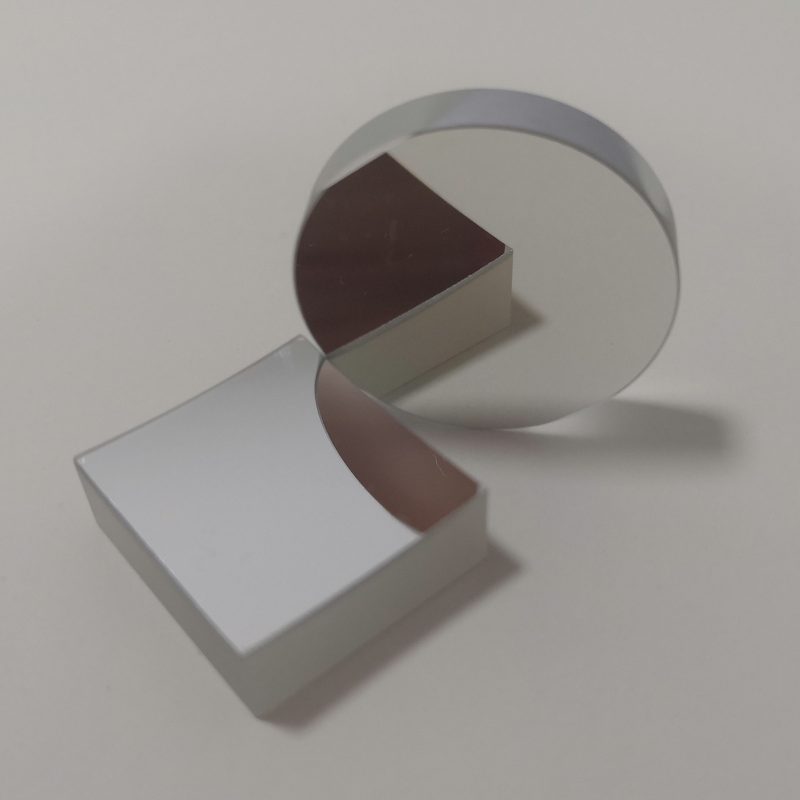

Custom Size Optical Glass Optical Mirror
High-performance optical mirror with 98% reflectance and customizable options for optical instruments.
Core attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Reflectance
- 98%
- Coating
- dielectric HR
Product facts
Key attributes
- Material
- Optical Glass
- Size
- Custom
- Thickness
- Custom
- Reflectance
- 98%
- Coating
- dielectric HR
Product description
This optical mirror is designed for high-performance applications in optical instruments, featuring a dielectric high-reflectance coating that ensures 98% reflectance. With a surface flatness of 1/4 at 633nm, it minimizes wavefront distortion, making it ideal for precision optical setups. Customization options are available to meet specific project requirements.
Key Features
- 98% reflectance for efficient light utilization in optical instruments.
- Dielectric HR coating provides durability and high performance.
- Surface flatness of 1/4@633nm ensures minimal wavefront distortion.
- Custom sizes and thicknesses available to fit unique application needs.
- Tolerance of ±0.1mm for precise integration into optical systems.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Size | Custom |
| Thickness | Custom |
| Reflectance | 98% |
| Coating | dielectric HR |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical mirror |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | custom |
| Use | Optical Instrumetns |
| Surface Flatness | 1/4@633nm |
| Tolerance | +-0.1mm |
FAQ
Can I get custom sizes for this mirror?
Yes, custom sizes and thicknesses are available to meet specific project requirements.
What is the surface flatness specification?
The mirror has a surface flatness of 1/4 at 633nm, ensuring high wavefront quality.
