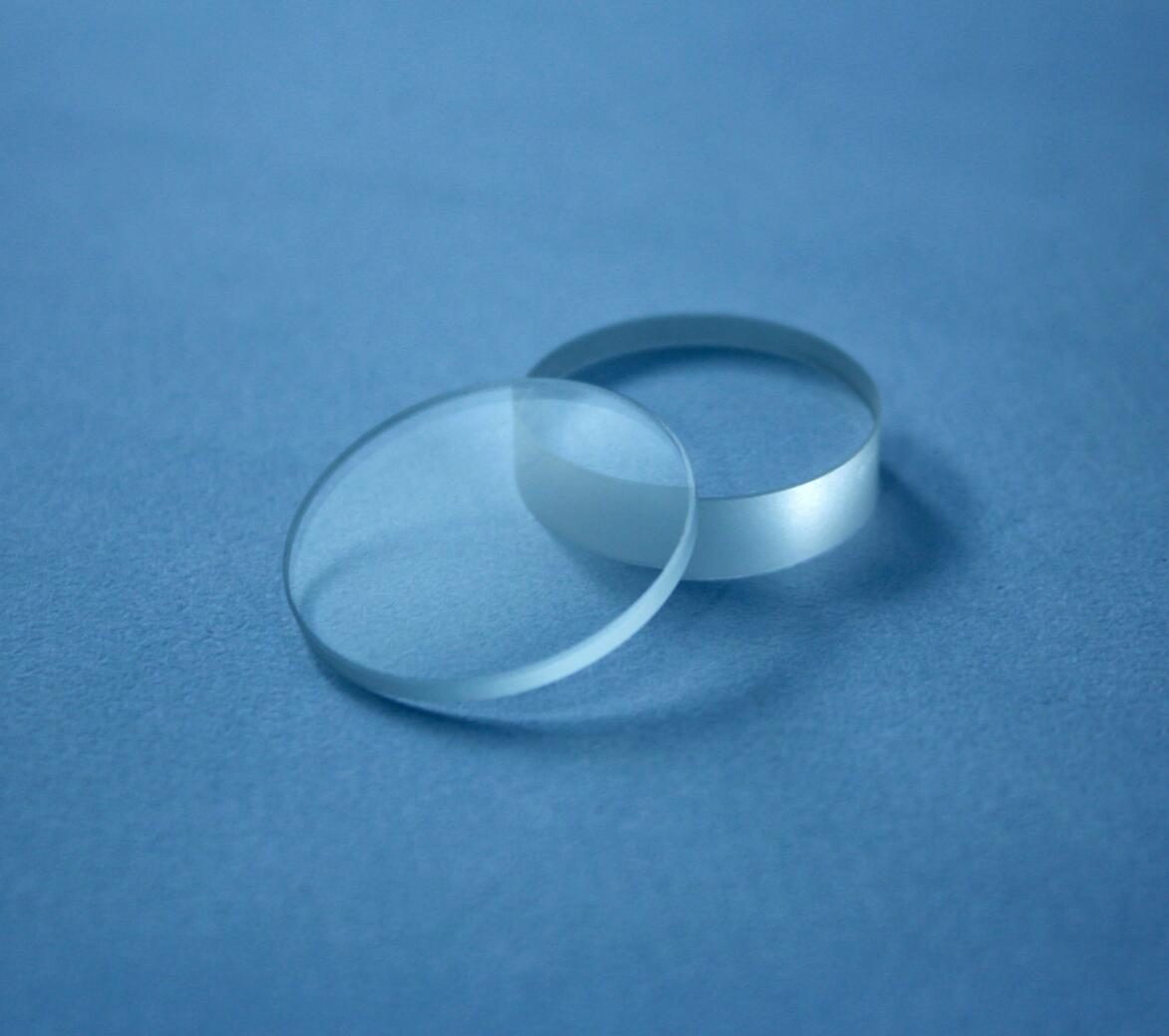

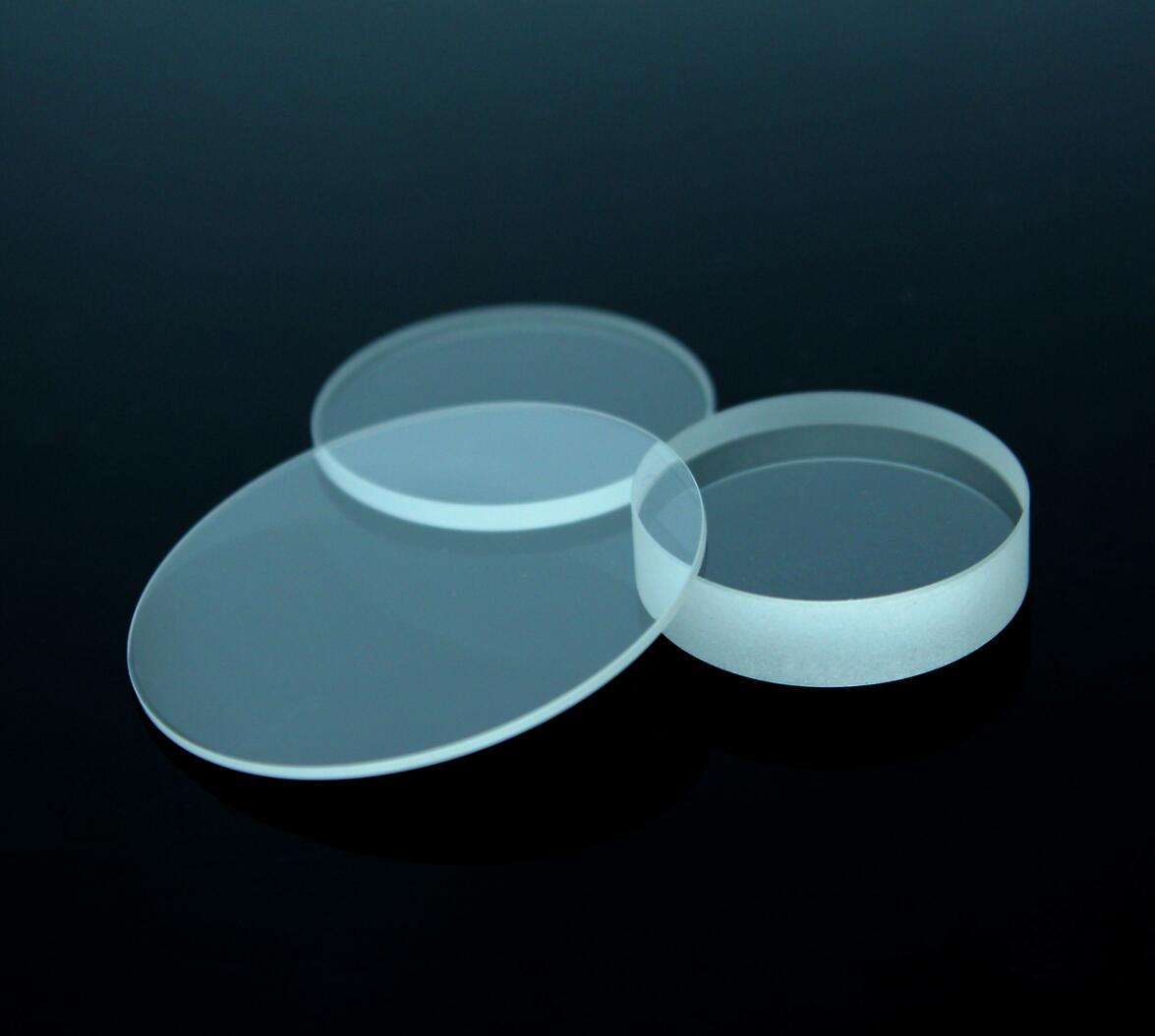

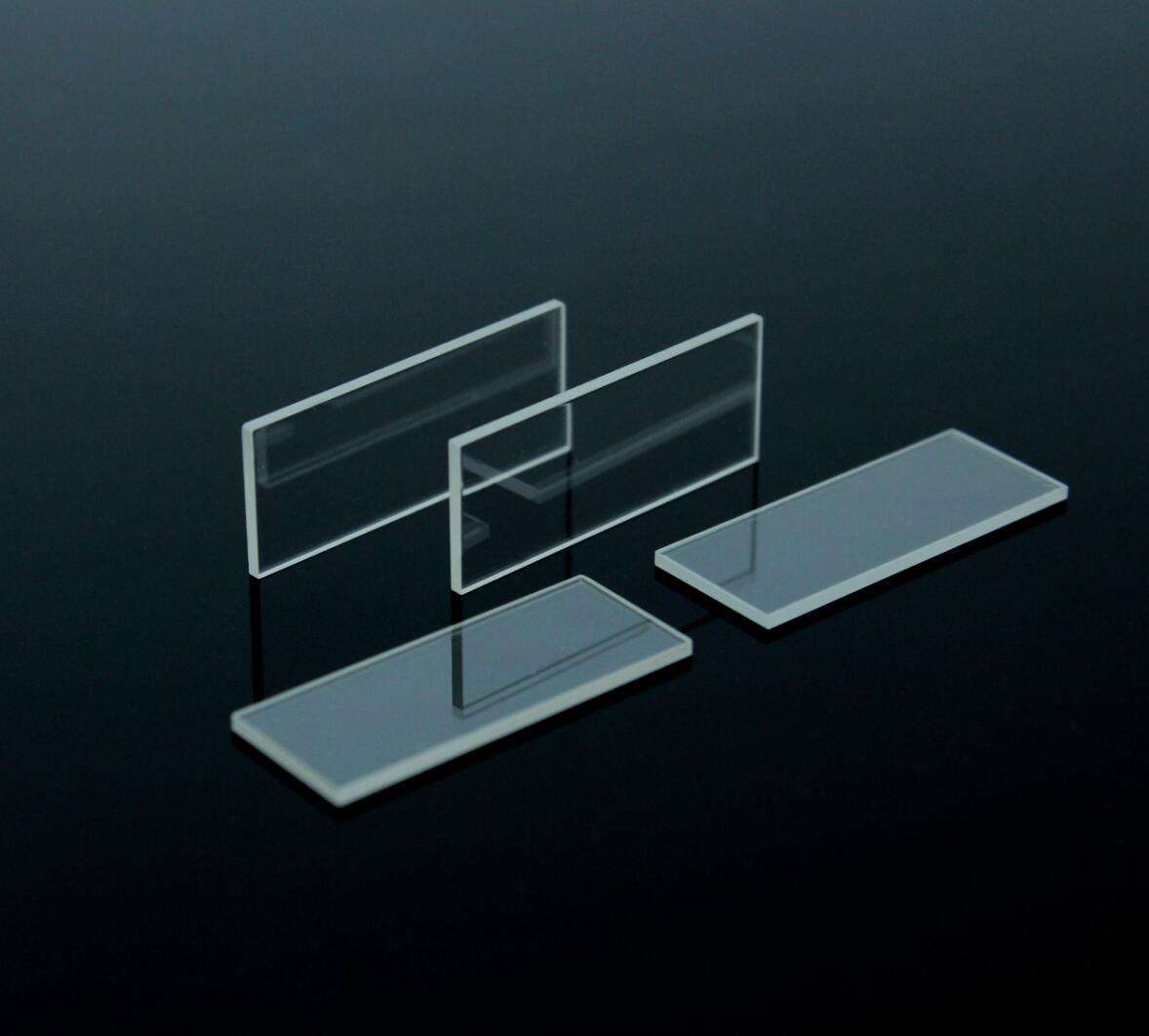

52x15 mm Optical Glass Optical Window, AR Coated

Product description

This optical glass window is specifically designed for thermal imaging applications, providing enhanced clarity and durability. With a flat glass design, it ensures smooth surfaces and uniform optics, making it ideal for high-precision environments. The anti-reflective coating reduces glare and improves light transmission, critical for accurate thermal imaging. Its dimensions of 52mm diameter and 15mm thickness, along with customizable sizes, make it versatile for various applications.

Key Features

Diameter of 52mm with a thickness of 15mm for standard applications.
Surface flatness of Lambda/10 ensures high precision in optics.
Anti-reflective coating enhances light transmission and reduces glare.
Diameter tolerance of +/-0.1mm and thickness tolerance of +/-0.1mm for consistency.
Custom sizes available, including variants of 72mm diameter and 20mm thickness.

Available Sizes

Diameter x Thickness (mm)
52 x 15
72 x 20

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	Optical Glass
Diameter	52 mm
Thickness	15 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Flat Glass
Warranty	1 Year
Weight	0.05
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	+/-0.1mm
Surface Flatness	Lambda/10
Clear Aperture	80%~95%
Parallelism	+/- 3 '
Bevel	0.2x45

FAQ

Can I get custom sizes for this optical glass?

Yes, custom sizes are available, including variants of 72mm diameter and 20mm thickness.

What are the tolerances for diameter and thickness?

The diameter tolerance is +/-0.1mm and the thickness tolerance is also +/-0.1mm.
