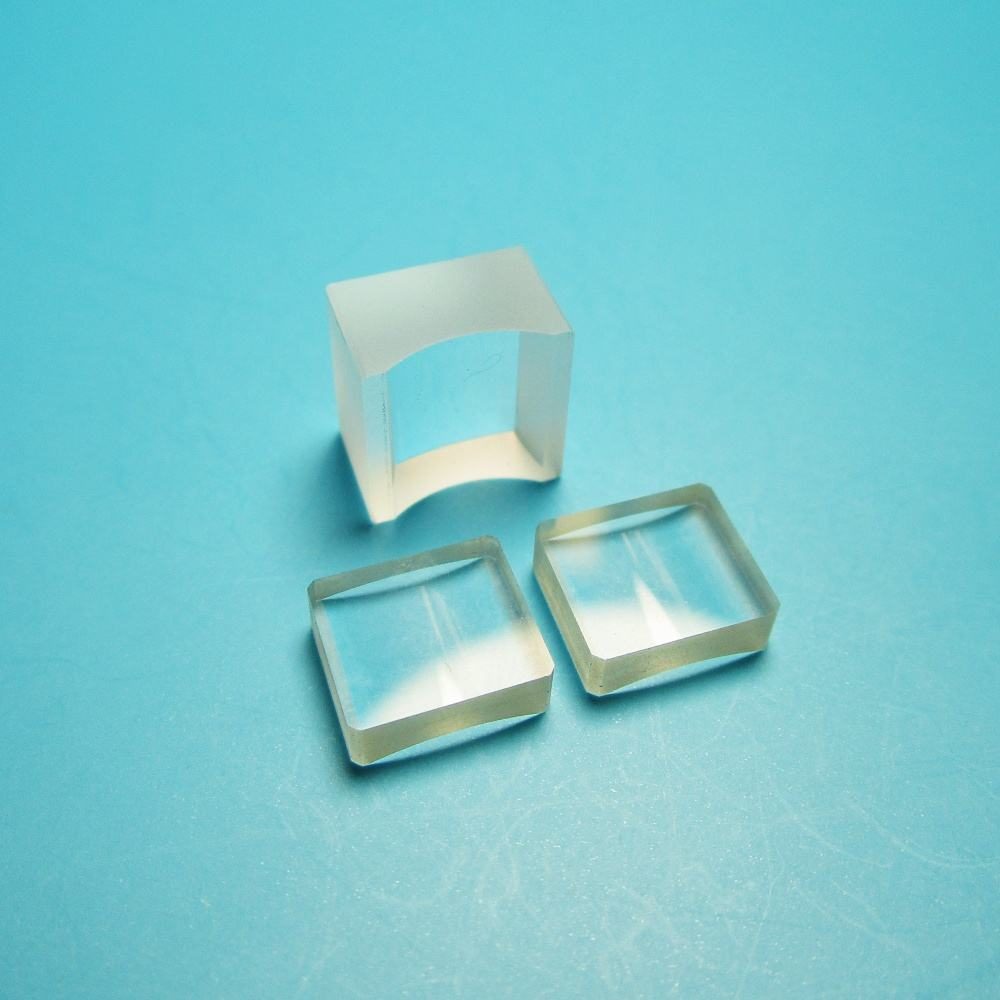

2 mm Optical Glass Plano-concave Lens, AR Coated
Plano-concave optical glass lens for imaging applications, customizable sizes, and high clarity.
Core attributes
- Material
- Optical Glass
- Shape
- Plano-concave
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Plano-concave
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product description
This plano-concave lens made from optical glass is designed for imaging applications, providing high clarity and durability. With a diameter range from 2.0 mm to 300.0 mm and customizable dimensions, it suits various optical systems. The anti-reflective coating enhances light transmission, ensuring optimal performance in precision optics. The lens also features a clear aperture greater than 90%, making it ideal for high-quality imaging tasks.
Key Features
- Diameter range: 2.0 mm to 300.0 mm for versatile application fit.
- Surface quality rated at 1/4 for minimal distortion.
- Customizable support with OEM, ODM, and OBM options.
- Dimension tolerance of +0.0/-0.1 mm for precise integration.
- Centration within <3’ for accurate optical alignment.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Plano-concave |
| Diameter | 2 mm |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.04 |
| Dimension | 1.0mm-200.0 mm |
| Focus Length | 1mm-100000mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Centration | <3' |
| Clear Aperture | >90% |
| Bevelling | <0.2x45° |
FAQ
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Can I get custom sizes?
Yes, customizable sizes range from 1.0 mm to 200.0 mm.
