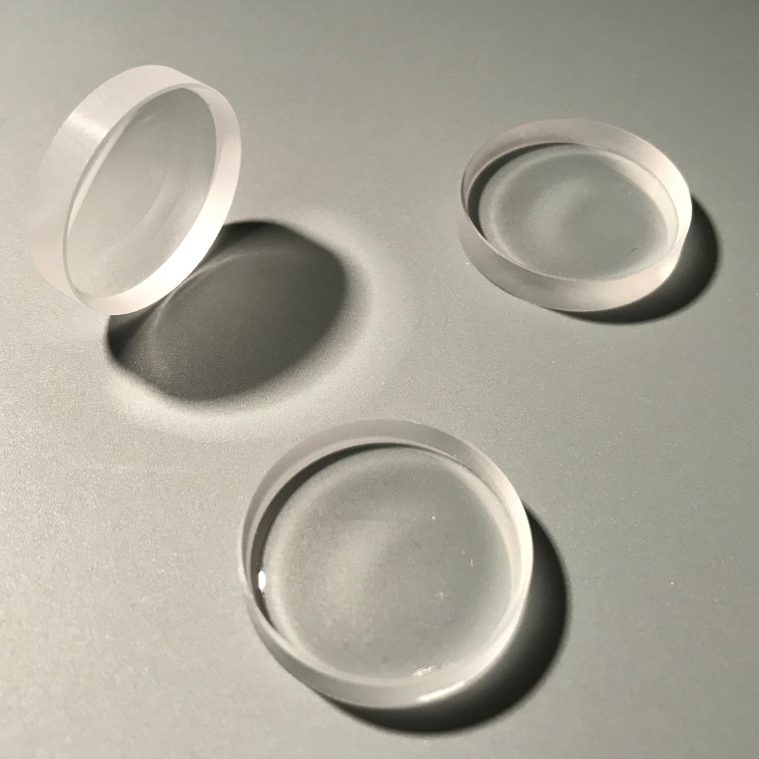

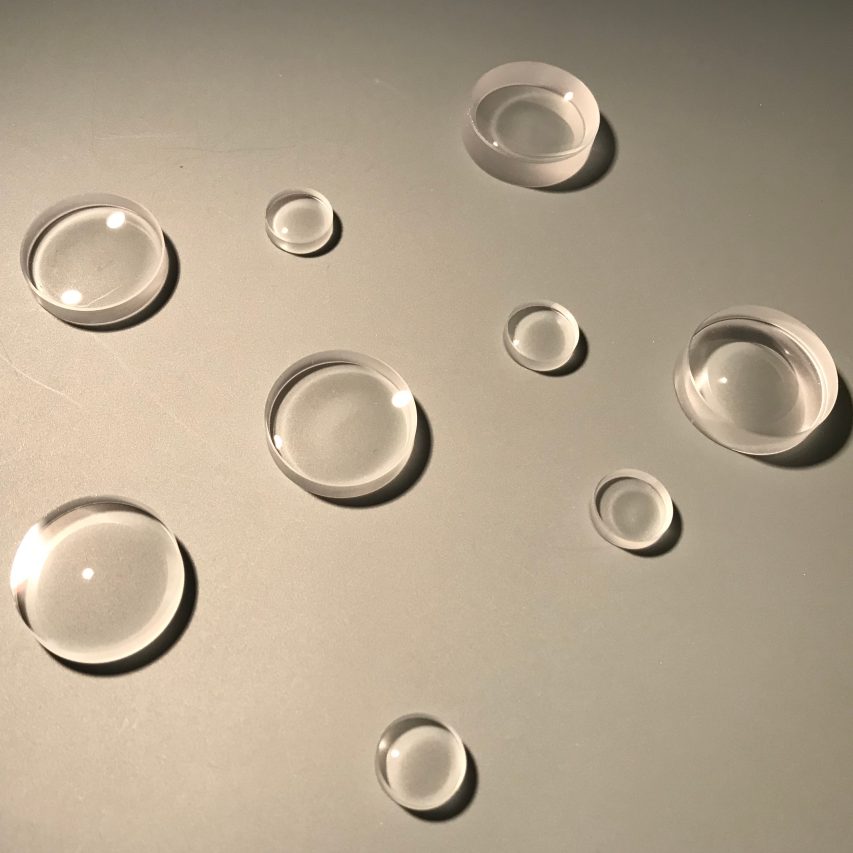

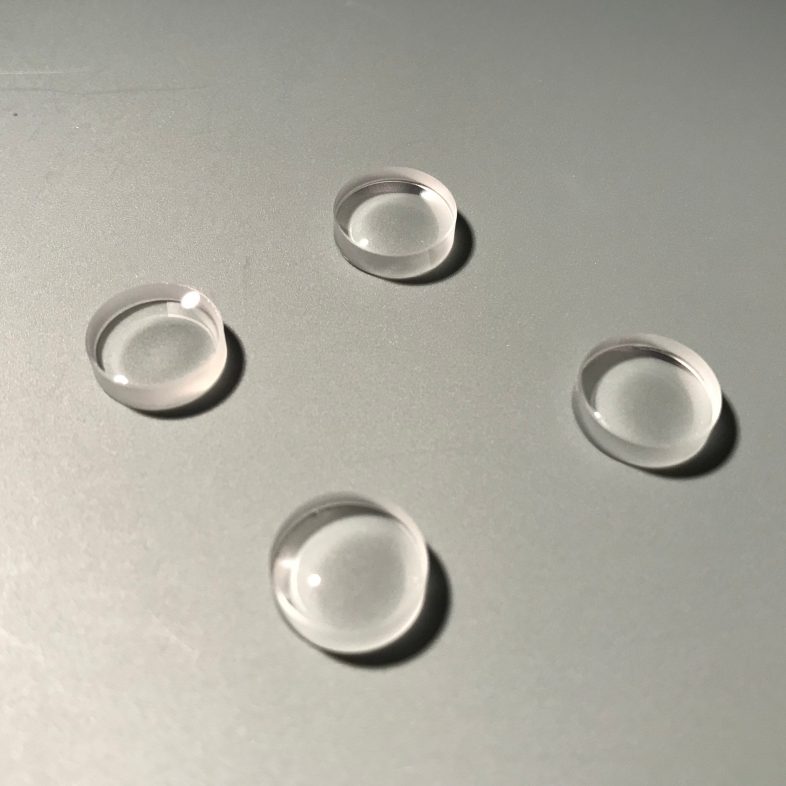

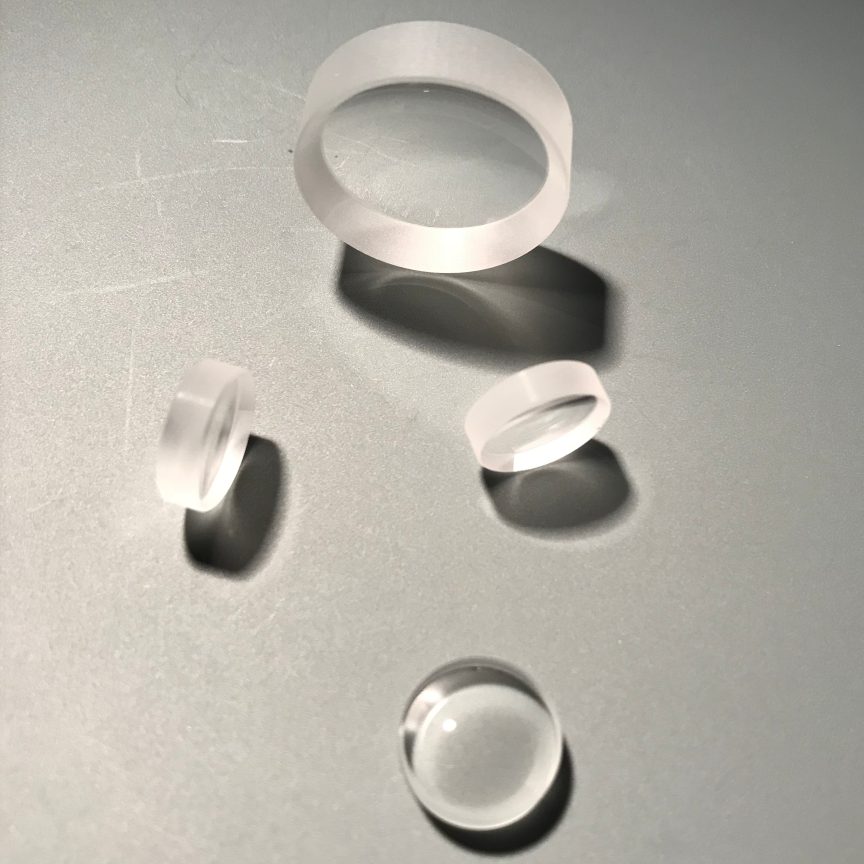

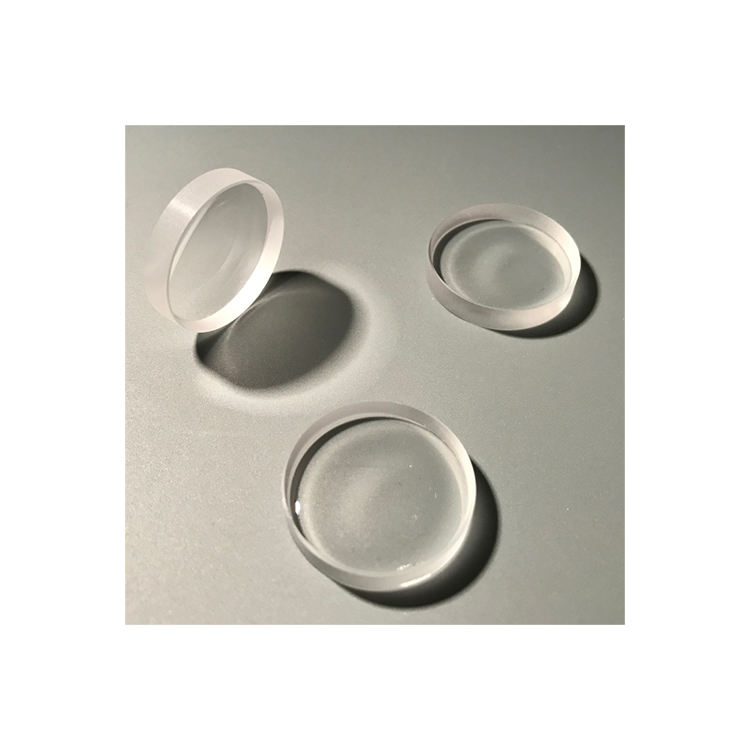

5 mm Optical Glass Plano-concave Lens, AR Coated
Explore our plano-concave optical glass lens for 400-700 nm applications, customizable sizes, and OEM support.
Core attributes
- Material
- Optical Glass
- Shape
- Plano-concave
- Diameter
- 5 mm
- Thickness
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Plano-concave
- Diameter
- 5 mm
- Thickness
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product description
The plano-concave lens made from optical glass is designed for applications within the 400-700 nm wavelength range. This lens effectively diverges light beams, making it ideal for use in optical systems requiring beam expansion or light collimation. With a diameter of 5.0 mm and a thickness of 100.0 mm, it offers flexibility for various setups. The lens is available with anti-reflective (AR) coatings or uncoated options to suit specific application needs.
Key Features
- Diameter of 5.0 mm for compact designs, fitting into tight spaces.
- Surface quality of 60/40 ensures reliable performance in optical applications.
- Customizable dimensions from 5 mm to 400 mm for tailored solutions.
- OEM and ODM support available for unique project requirements.
- Lightweight design at 0.5 kg (1.10 lb) facilitates easy integration.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Plano-concave |
| Diameter | 5 mm |
| Thickness | 0.1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Dimension | 5-400mm |
| Surface Flatness | 1/4@633nm |
| Parallel | 30 Arc Sec |
FAQ
Can I get custom sizes?
Yes, the lens can be customized with dimensions ranging from 5 mm to 400 mm.
What is the surface flatness specification?
The surface flatness is specified at L/4 at 633 nm.
