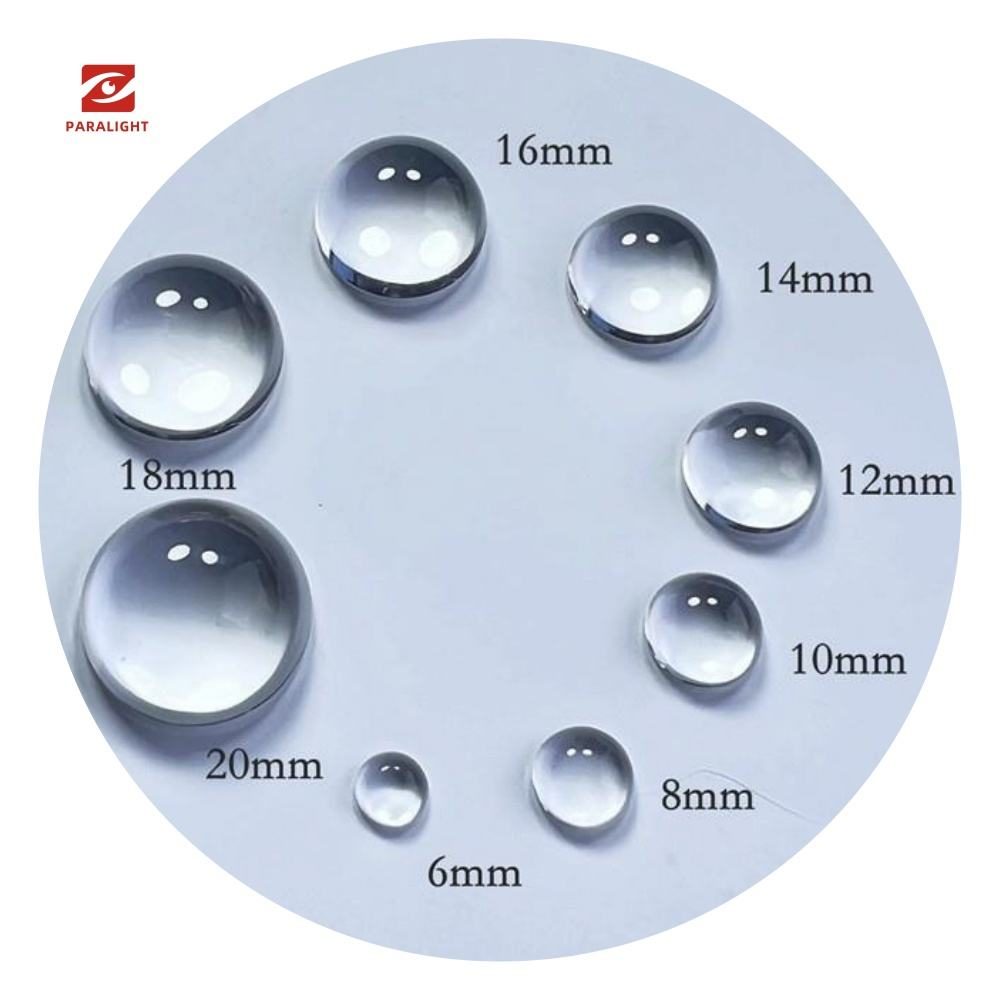

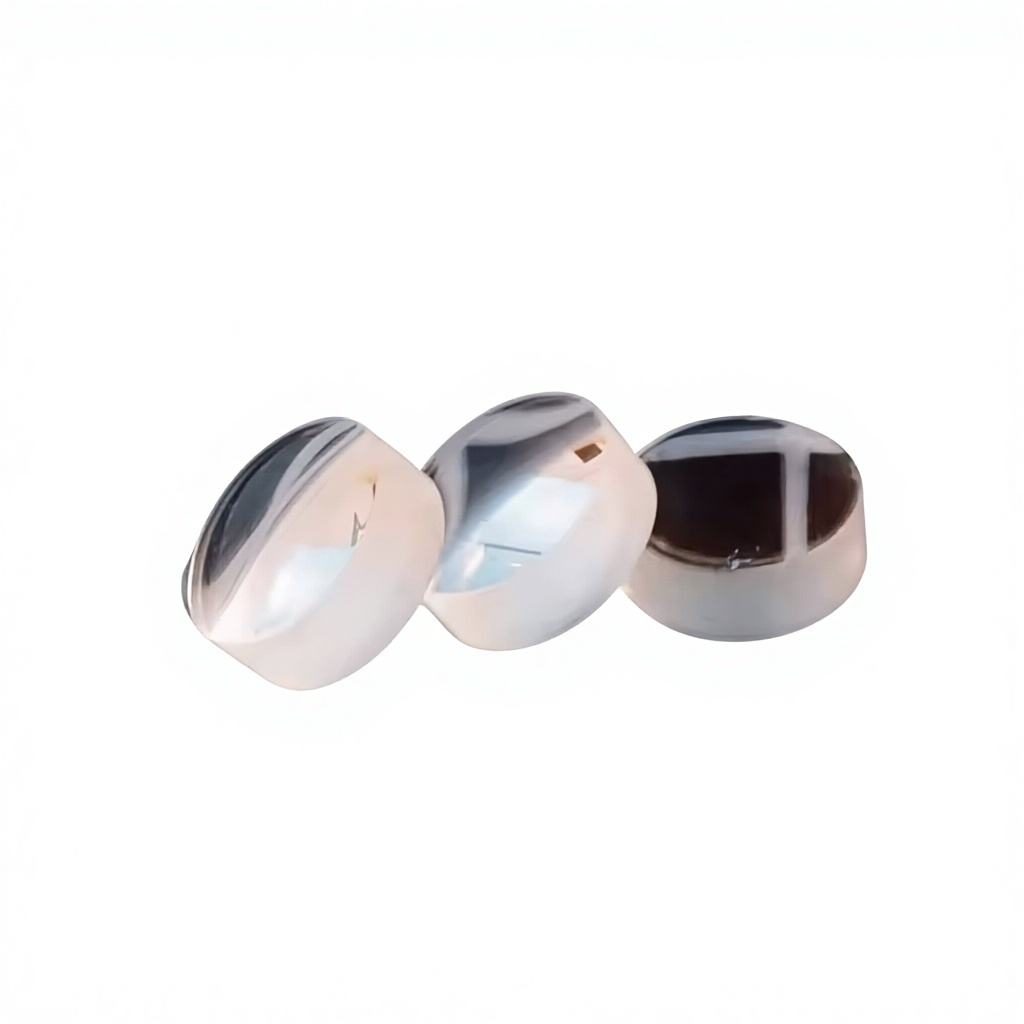

3 mm Optical Glass Plano-convex Lens, AR Coated
Plano-convex optical glass lens for medical and imaging applications, featuring AR coating and precise specifications.
Core attributes
- Material
- Optical Glass
- Shape
- Plano-convex
- Diameter
- 3 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Plano-convex
- Diameter
- 3 mm
- Coating
- anti-reflective (AR)
Product description
The plano-convex lens made from optical glass is ideal for medical and imaging applications, particularly in compact sensors and endoscopes. With a design wavelength of 546.1 nm, this lens features a multi-layer anti-reflection coating that enhances light transmission, ensuring optimal performance in high-end imaging systems. Its small diameter of 3.0 mm and precise specifications make it suitable for demanding optical requirements.
Key Features
- Diameter of 3.0 mm ensures compatibility with compact devices.
- AR coating maximizes light transmission for improved image quality.
- Centration within <3 arc minutes enhances imaging accuracy.
- Clear aperture greater than 90% allows for efficient light usage.
- Customized support available for OEM and ODM projects.
Applications
Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Plano-convex |
| Diameter | 3 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.2kgs(0.44lb) |
| Bevel | 0.25 mm*45° |
| Design Wavelength | 546.1nm or as request |
| Diameter Tolerance | ±0.1mm |
| Centration | <3 arc minutes |
| Clear Aperture | > 90% |
FAQ
Is custom sizing available?
Customized support for OEM and ODM projects is available.
What is the diameter tolerance?
The diameter tolerance for this lens is ±0.1 mm.
