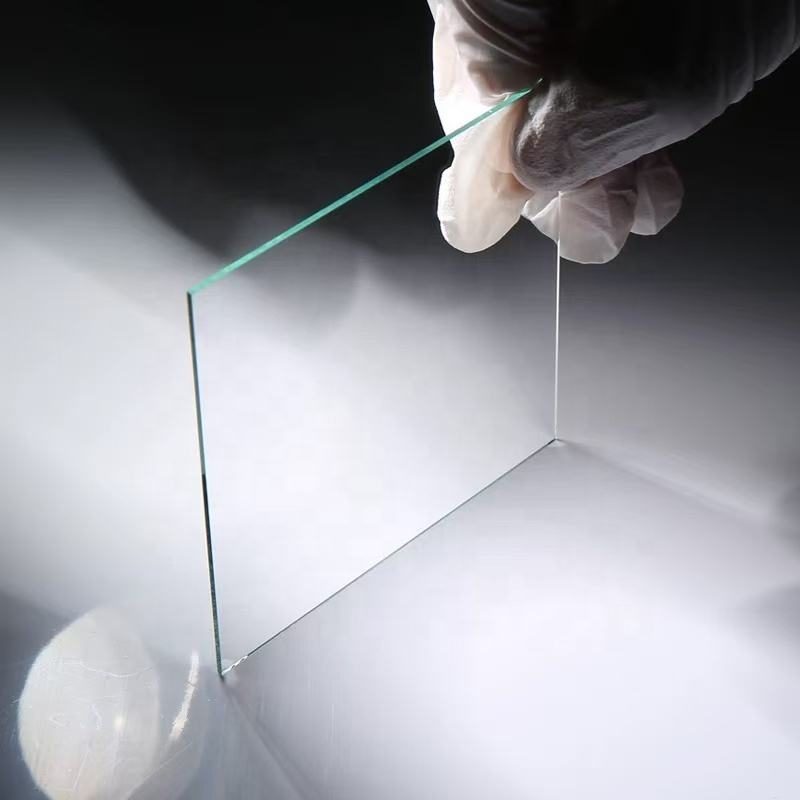

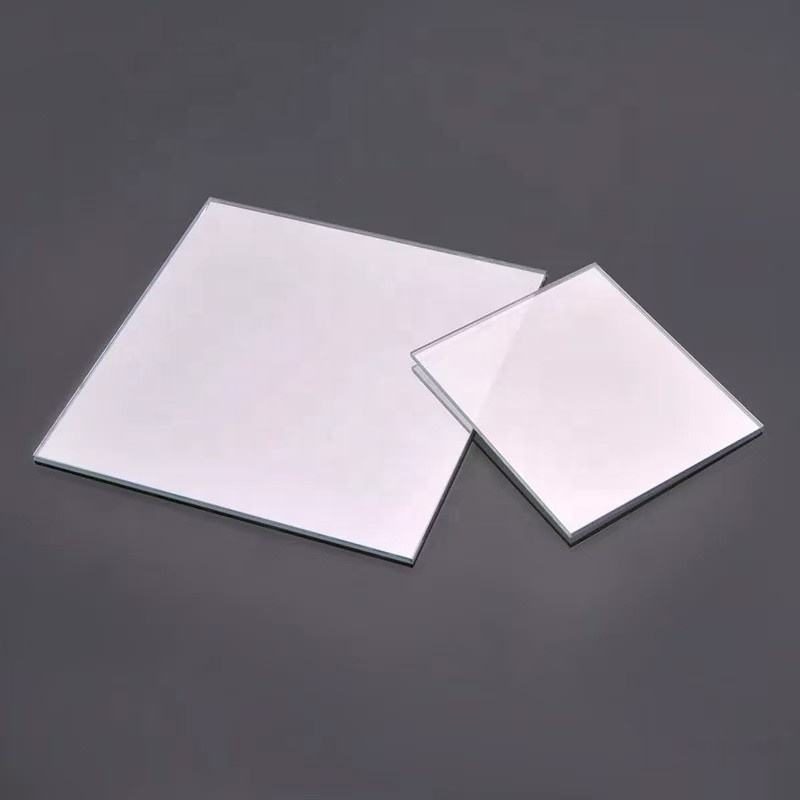

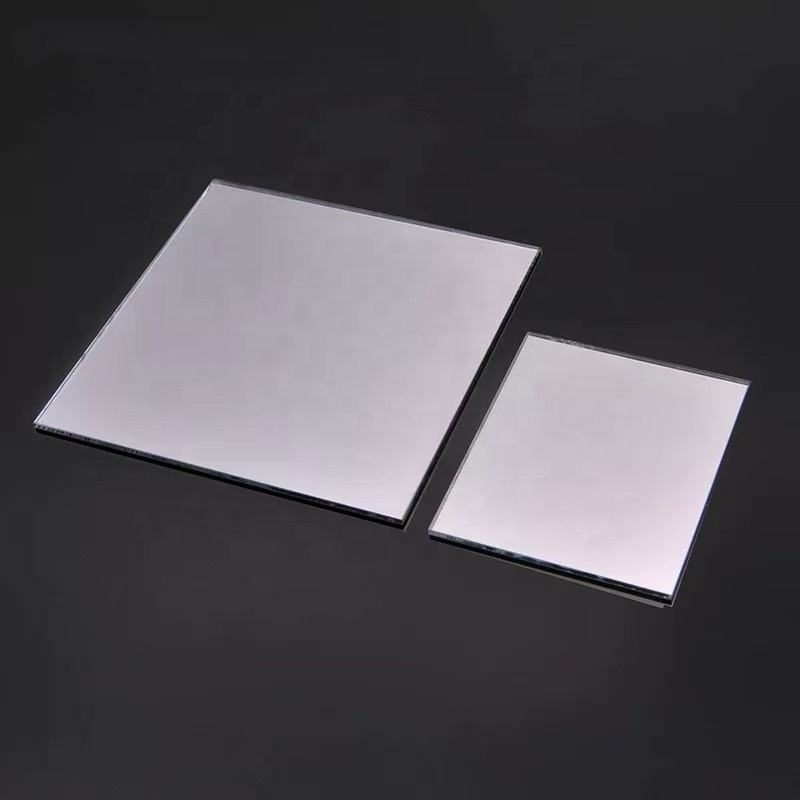

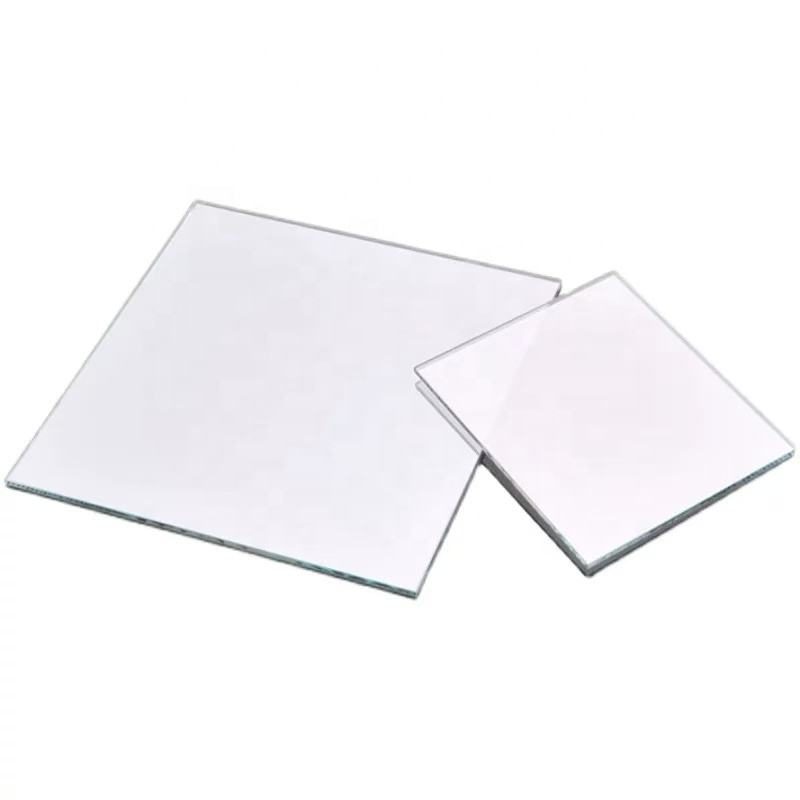

Custom Size Optical Glass Plate Beamsplitter

Product description

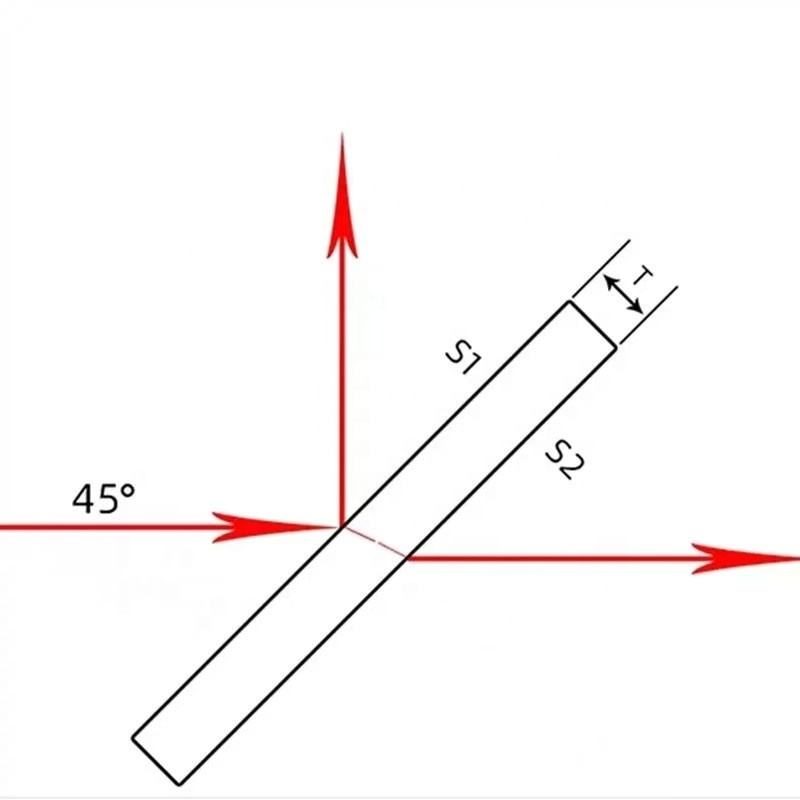

This optical glass beamsplitter effectively addresses the need for precise light division in applications requiring a 50/50 split ratio across the 400-700 nm and 0.7-1.7 μm wavelength ranges. Ideal for use in laser systems, machine vision, and microscopy, it ensures consistent performance with a surface quality of 60/40. The beamsplitter’s design allows for reliable operation in various optical setups.

Key Features

50/50 split ratio for balanced light division, enhancing imaging and measurement accuracy.
Surface quality of 60/40 ensures minimal distortion, improving optical performance.
Angle tolerance of +/-3’ for precise alignment in optical systems.
Size tolerance of +/-0.0-0.1mm for consistent batch production.
OEM, ODM, and OBM support available for customized solutions.

Specification Summary

Item	Value
Material	Optical Glass
Shape	Plate
Size	Custom
Thickness	Custom
Surface Quality	60/40
Split Ratio	50/50
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM, ODM, OBM
Power	no
Angle Tolerance	+/-3'
Size Tolerance	+/-0.0-0.1mm
Splitting Ratio	50:50/custom-made
Wavelength	400-700nm

FAQ

Is custom sizing available?

Yes, the beamsplitter can be custom-made to meet specific size requirements.

What are the tolerances for this beamsplitter?

The angle tolerance is +/-3’, and the size tolerance is +/-0.0-0.1mm.
