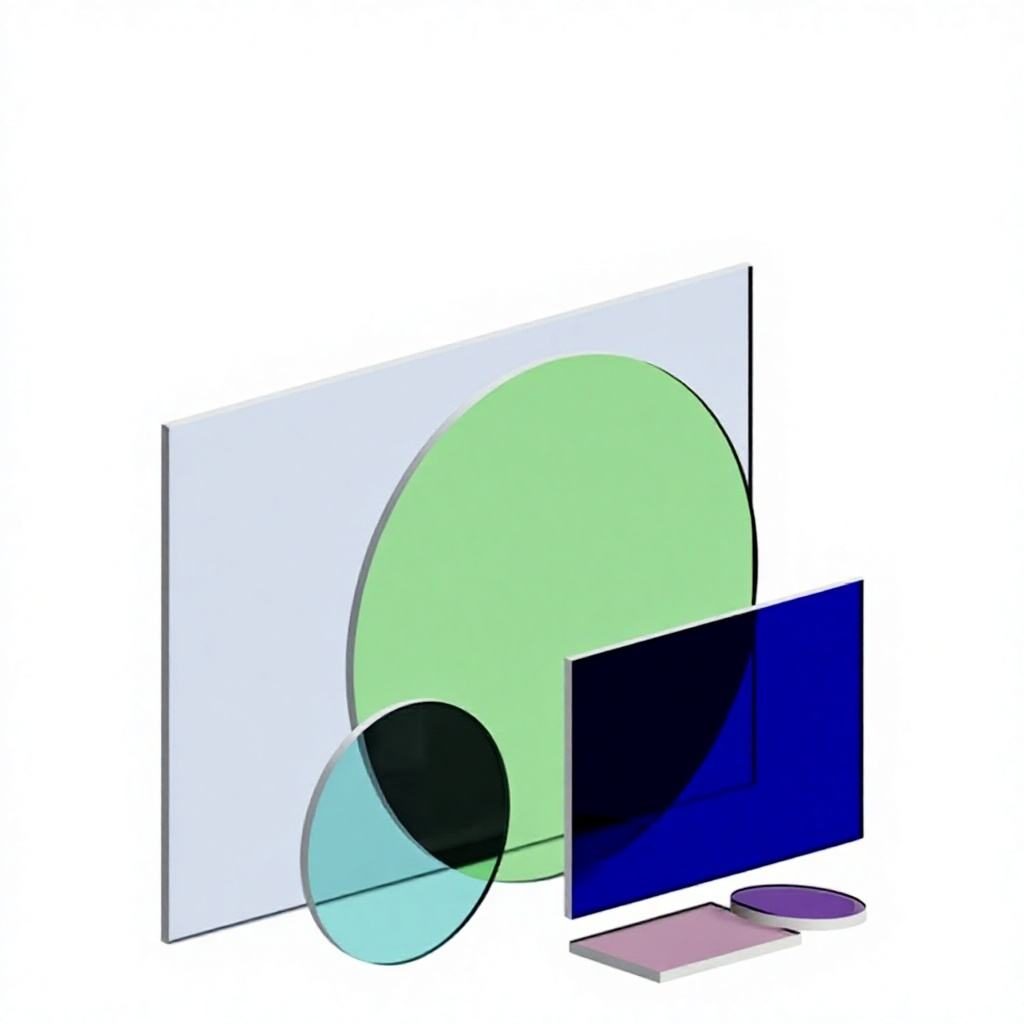

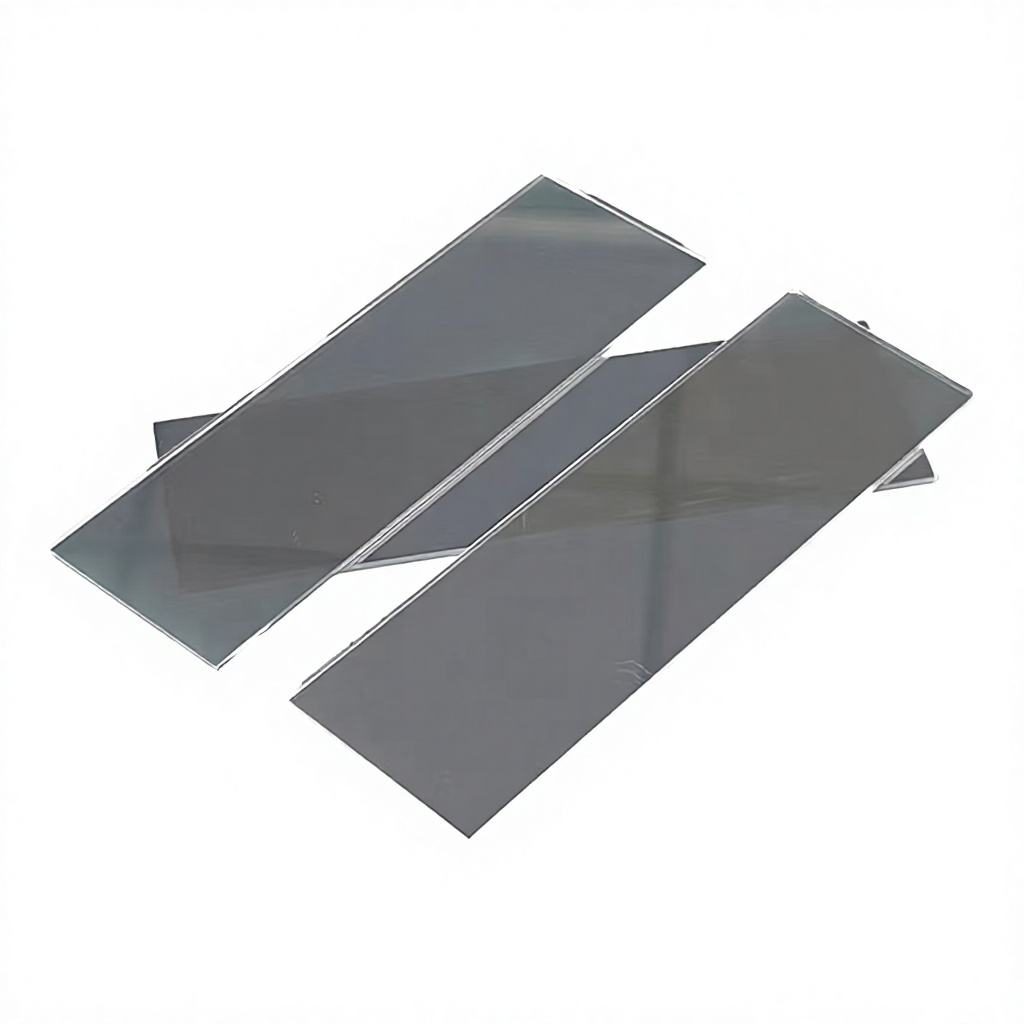

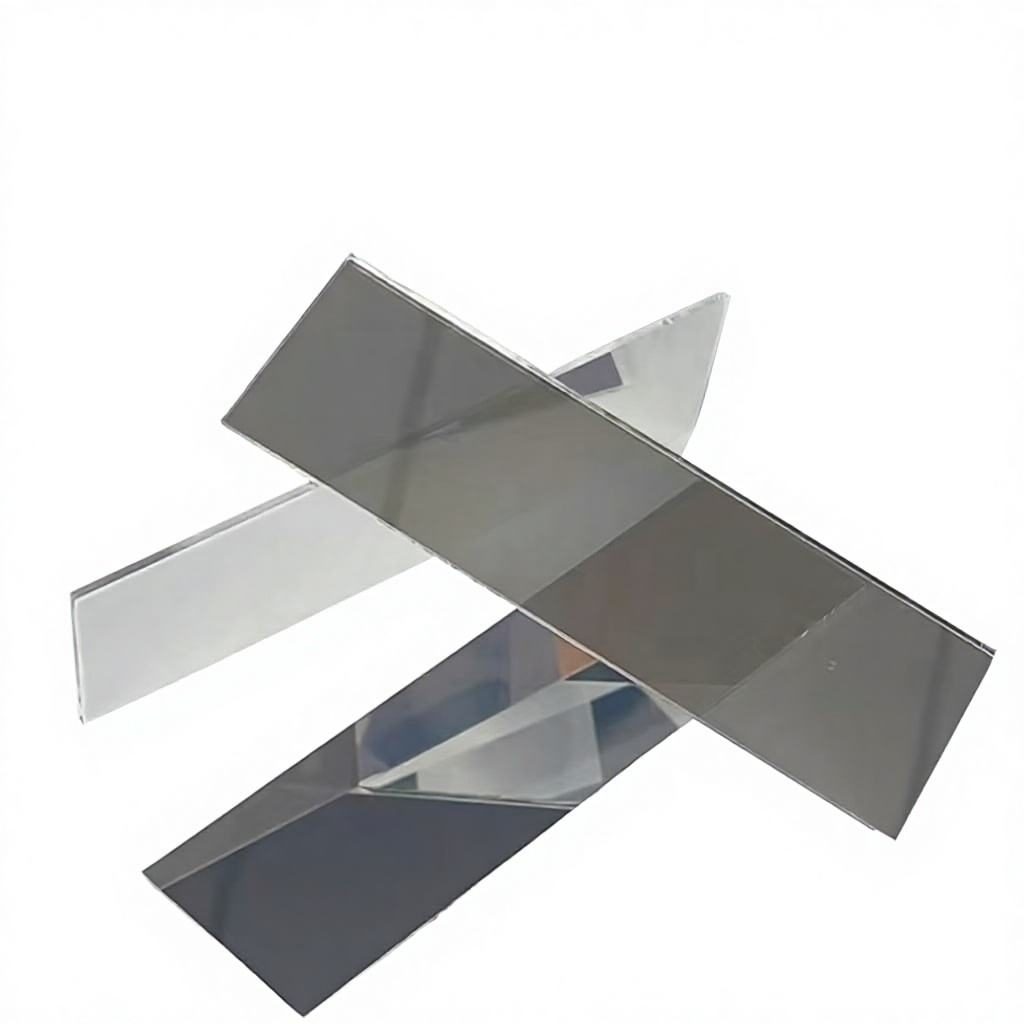

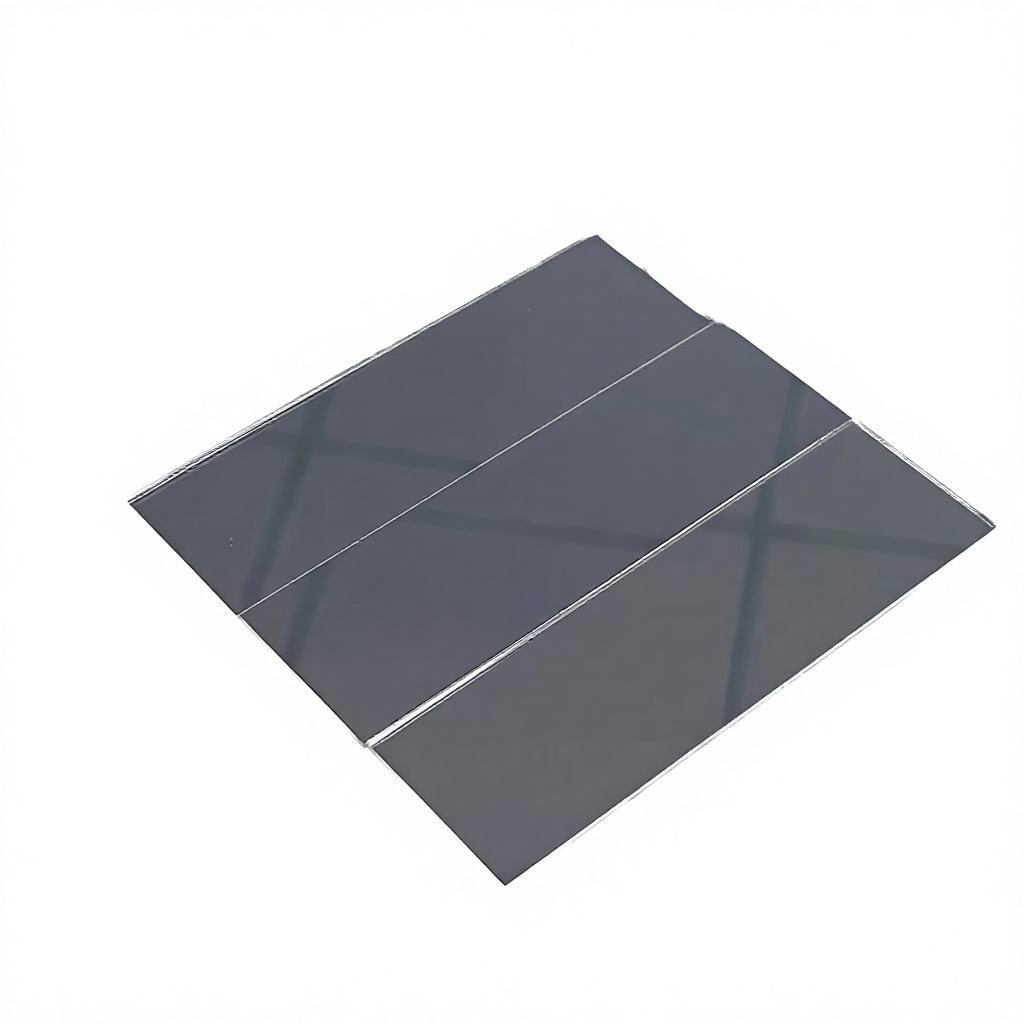

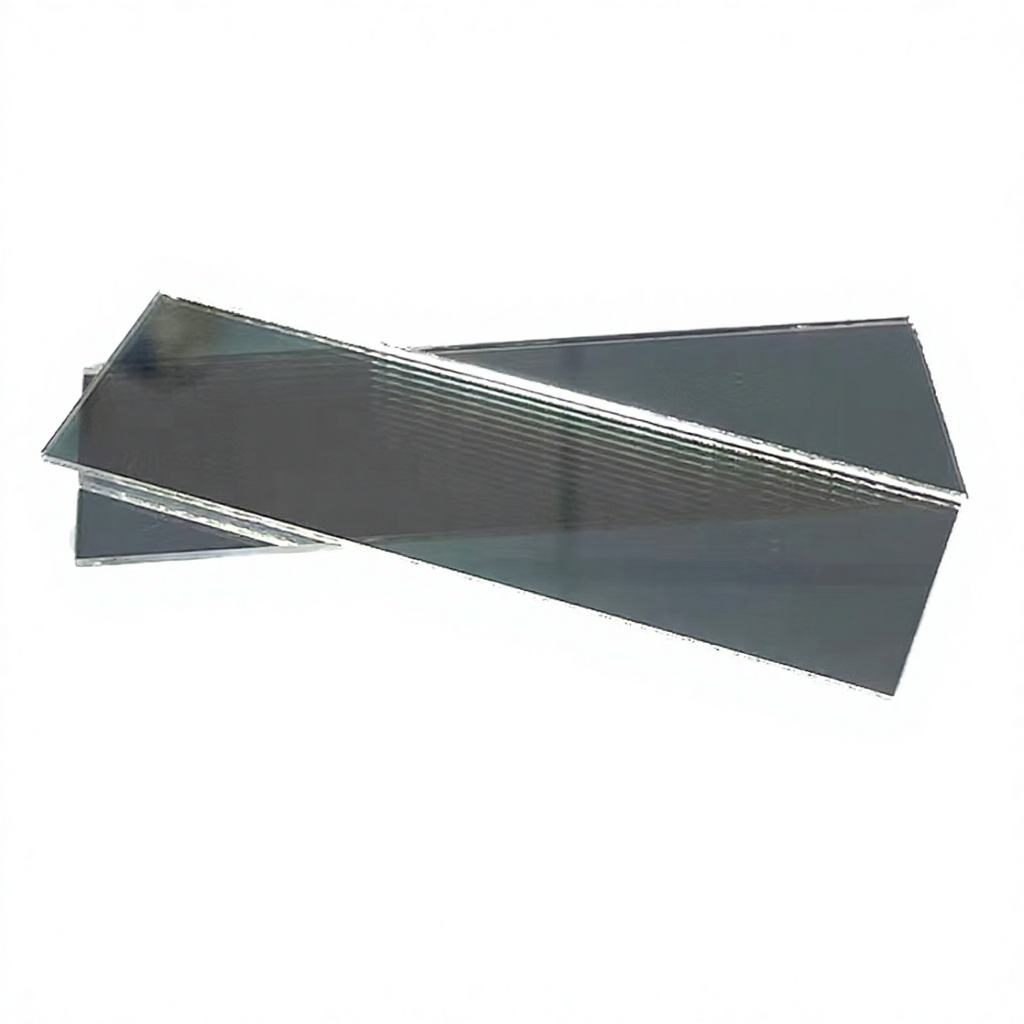

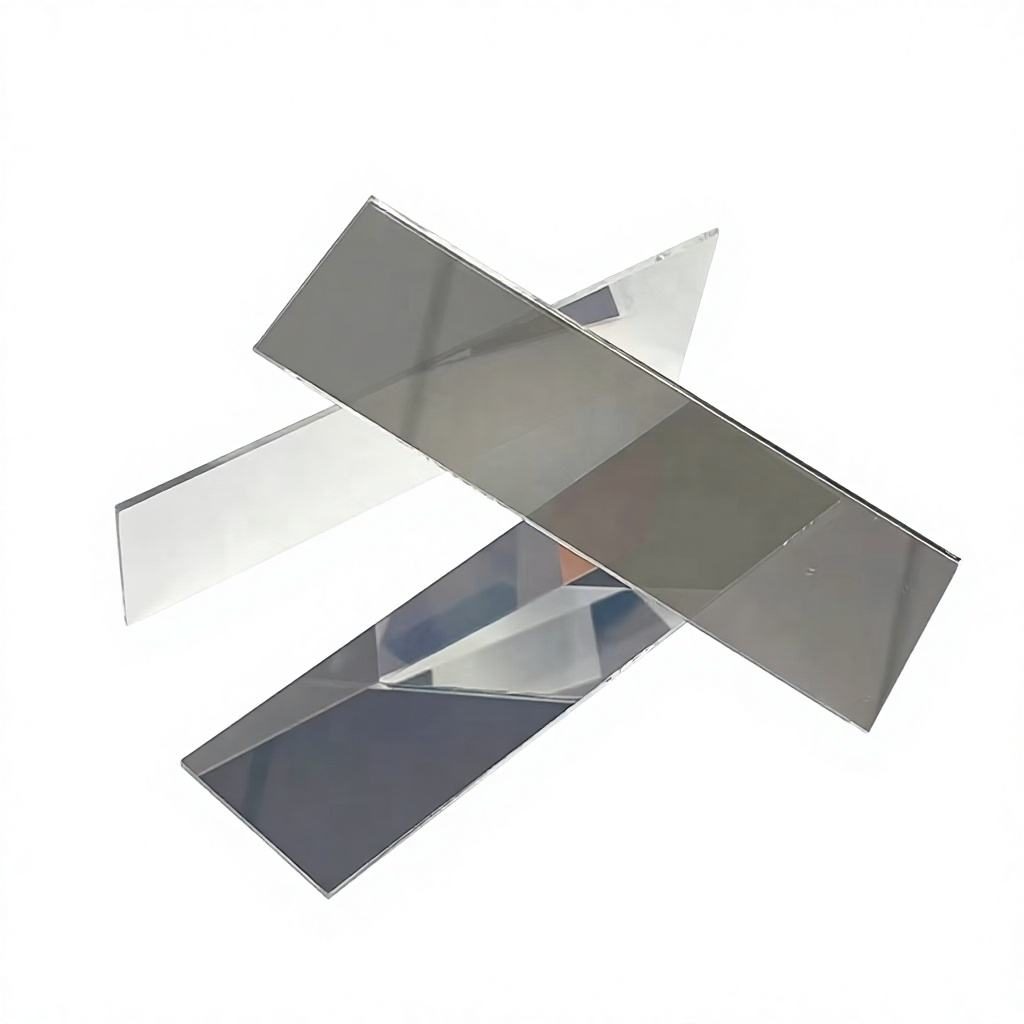

Custom Size Optical Glass Plate Beamsplitter

Product description

This optical beamsplitter addresses the need for precise beam splitting in laser applications, operating effectively across a wide wavelength range of 400-700 nm. With a customizable splitting ratio of 60/40, it provides optimal performance tailored to specific requirements. The high-quality optical glass ensures reliable functionality, while the accurate surface flatness of 1/4Lambda enhances precision in various applications.

Key Features

High Quality Optical Glass: Ensures precise beam splitting performance.
Customizable Splitting Ratio: Adjustable to 60/40 for optimal applications.
Surface Flatness: Maintains high precision with 1/4Lambda.
Wide Wavelength Range: Operates effectively across 400-700nm spectrum.
Size Tolerance: Offers a tolerance of +/-0.0-0.1mm for consistent performance.

Applications

Laser

Specification Summary

Item	Value
Material	Optical Glass
Shape	Plate
Size	Custom
Thickness	Custom
Surface Quality	60/40
Split Ratio	60/40
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM, ODM, OBM
Power	no
Size Tolerance	+/-0.0-0.1mm
Surface Flatness	1/4Lambda
Splitting Ratio	5:5/custom
Wavelength	400-700nm

FAQ

Can I get custom sizes for this beamsplitter?

Custom sizes are not specified; however, OEM and ODM support may be available.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified in the provided data.
