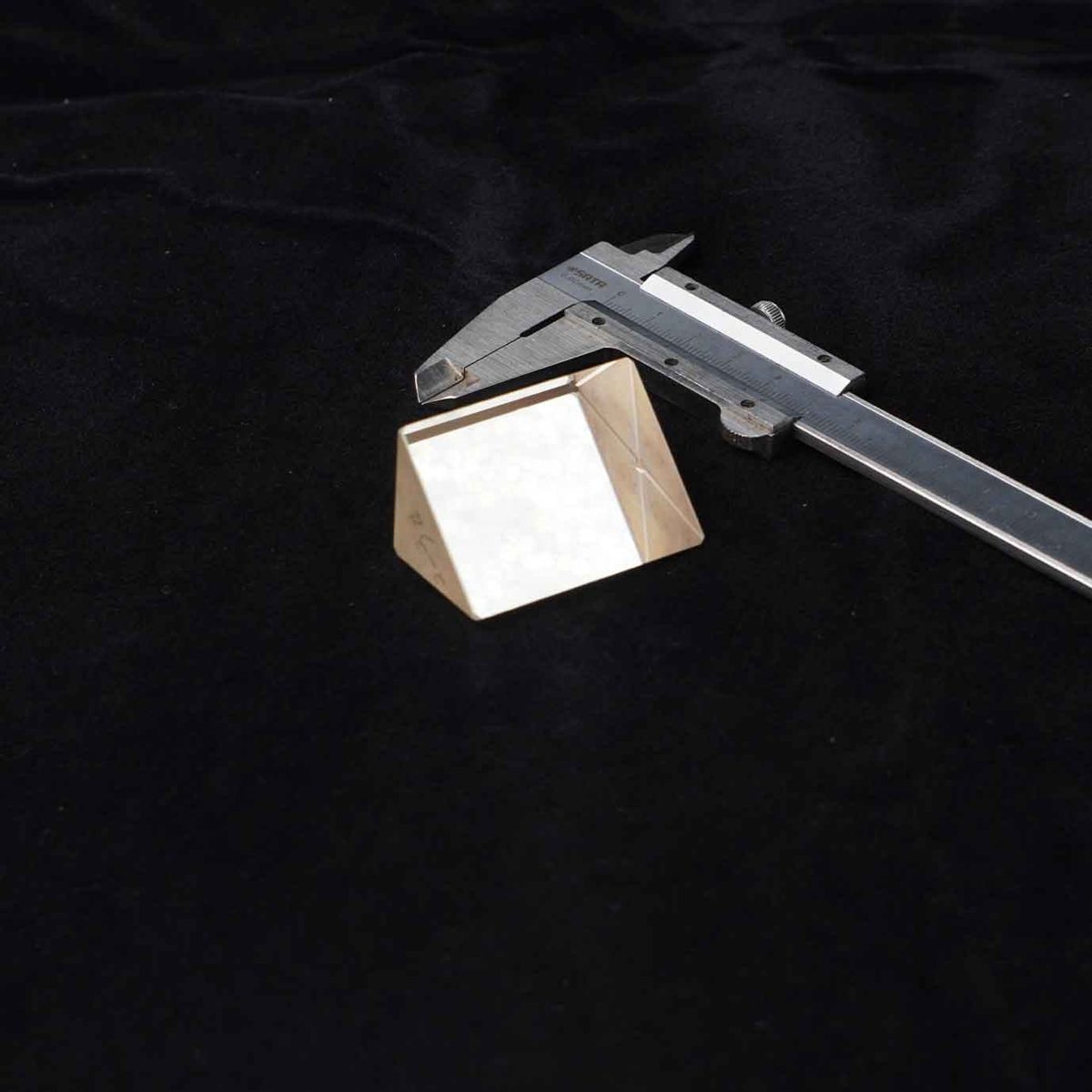

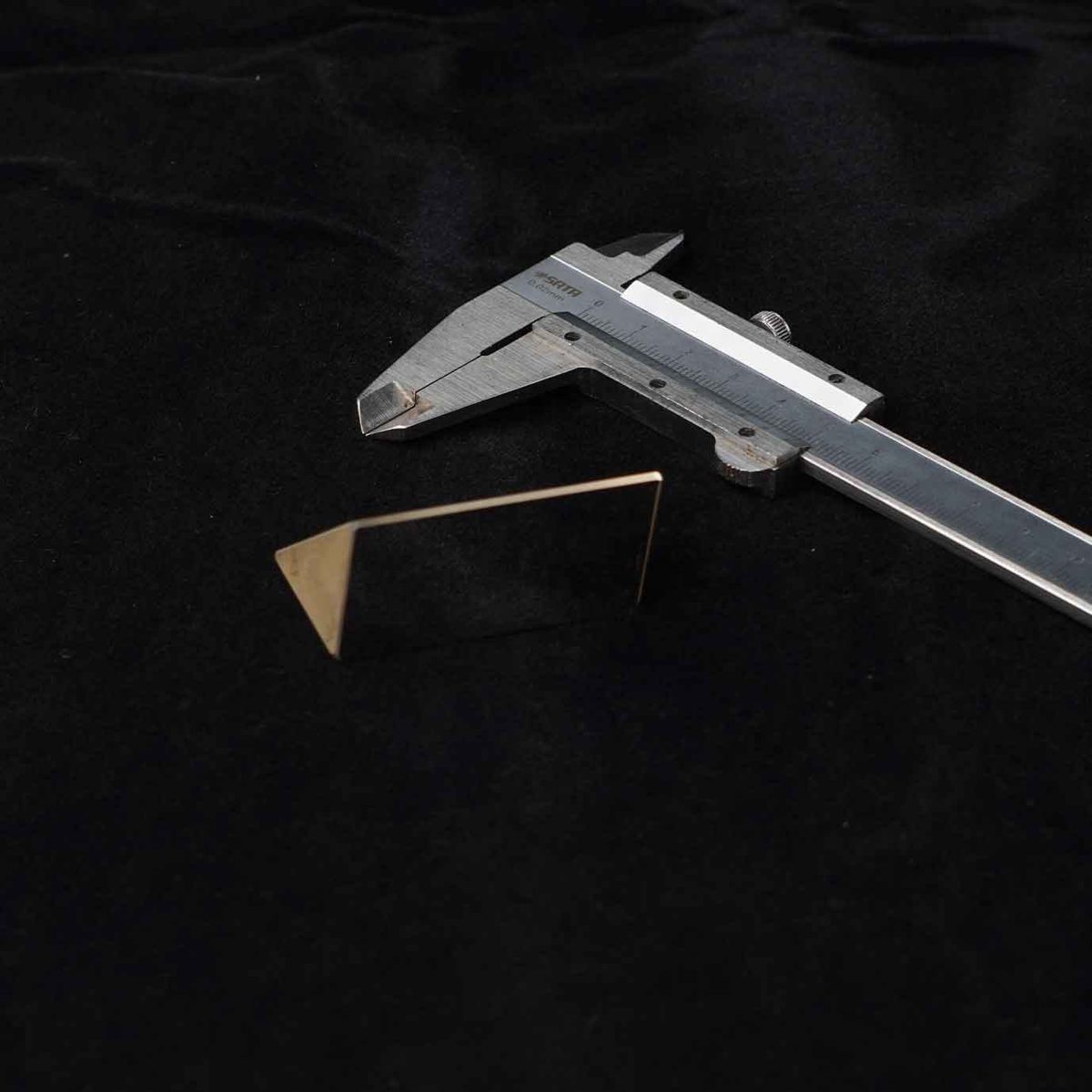

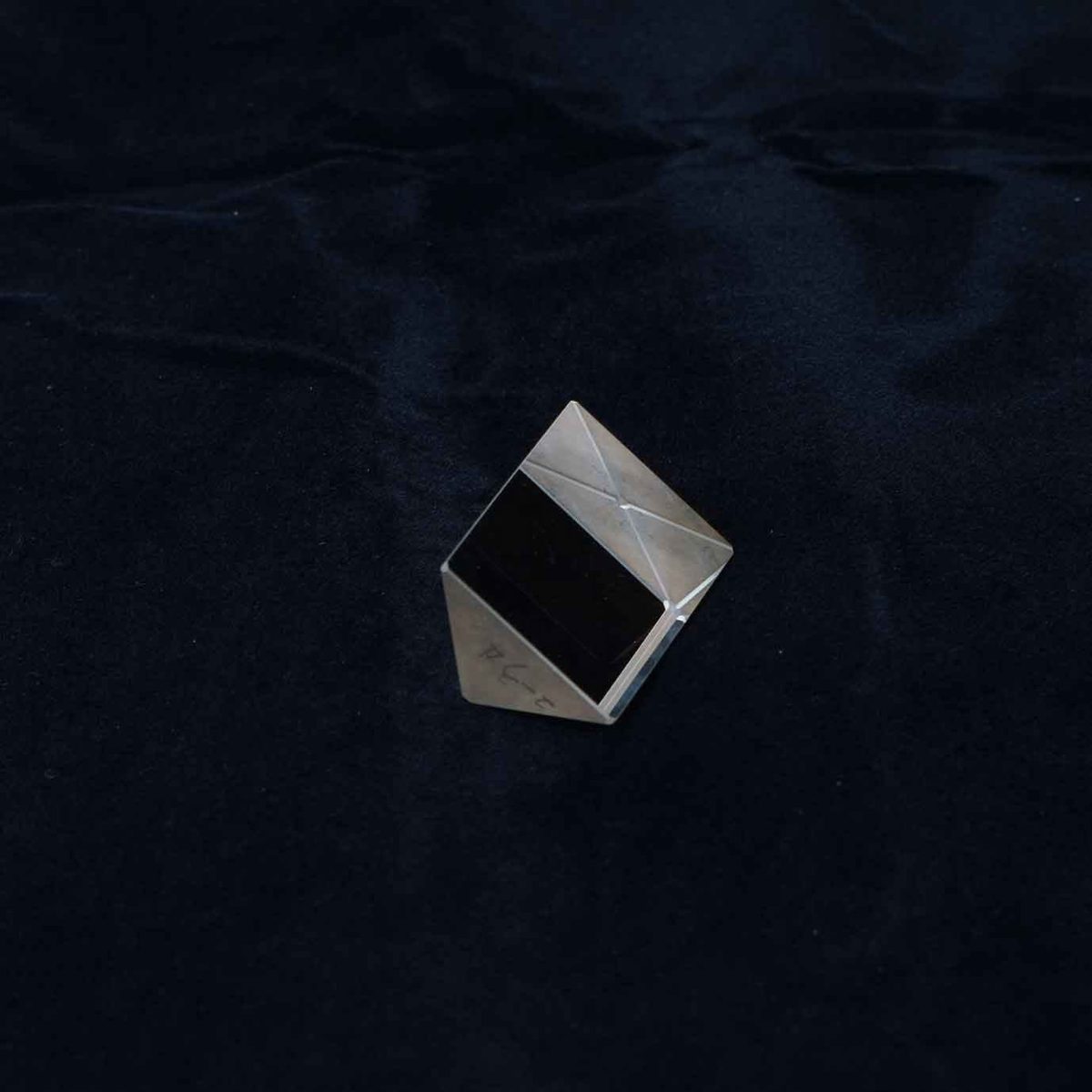

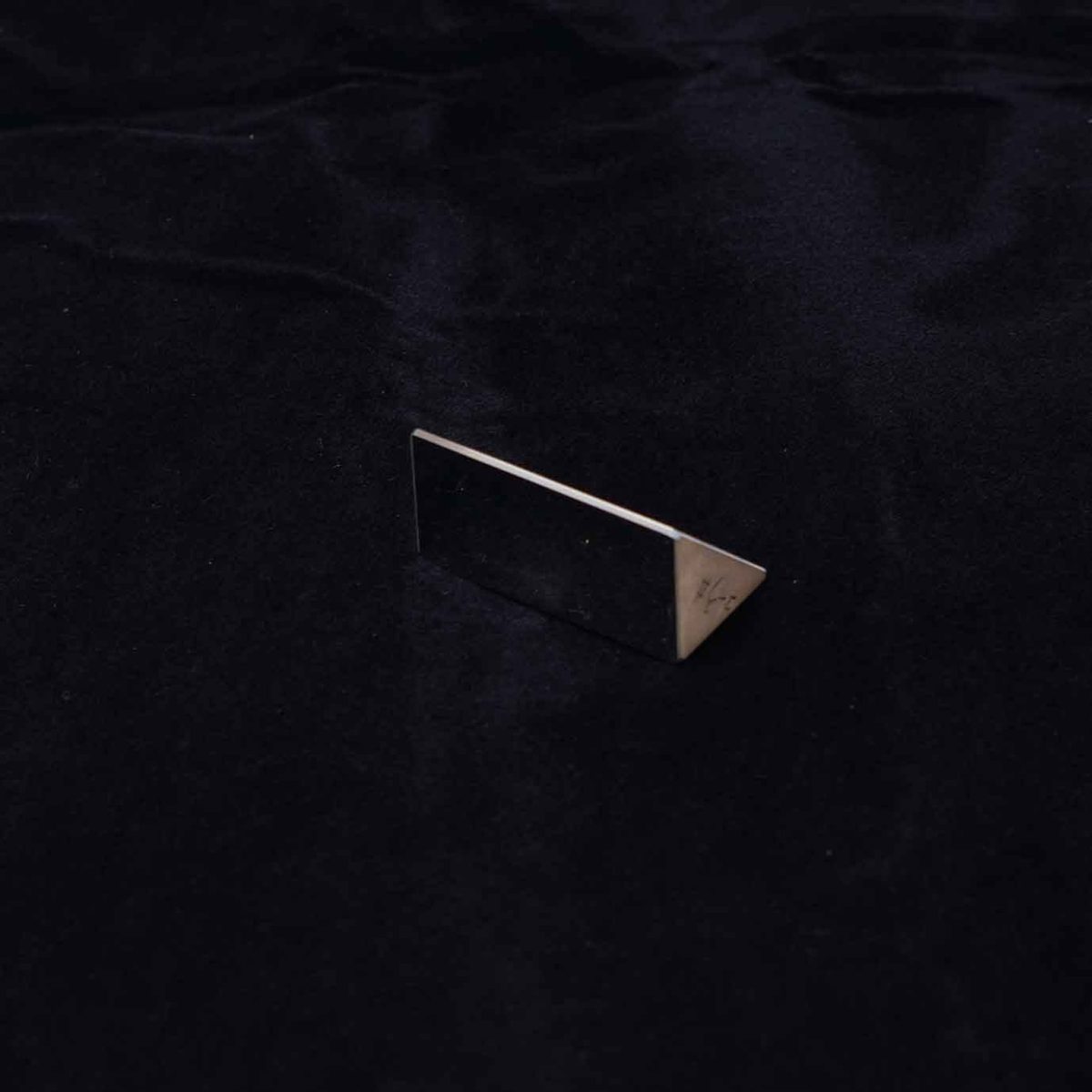

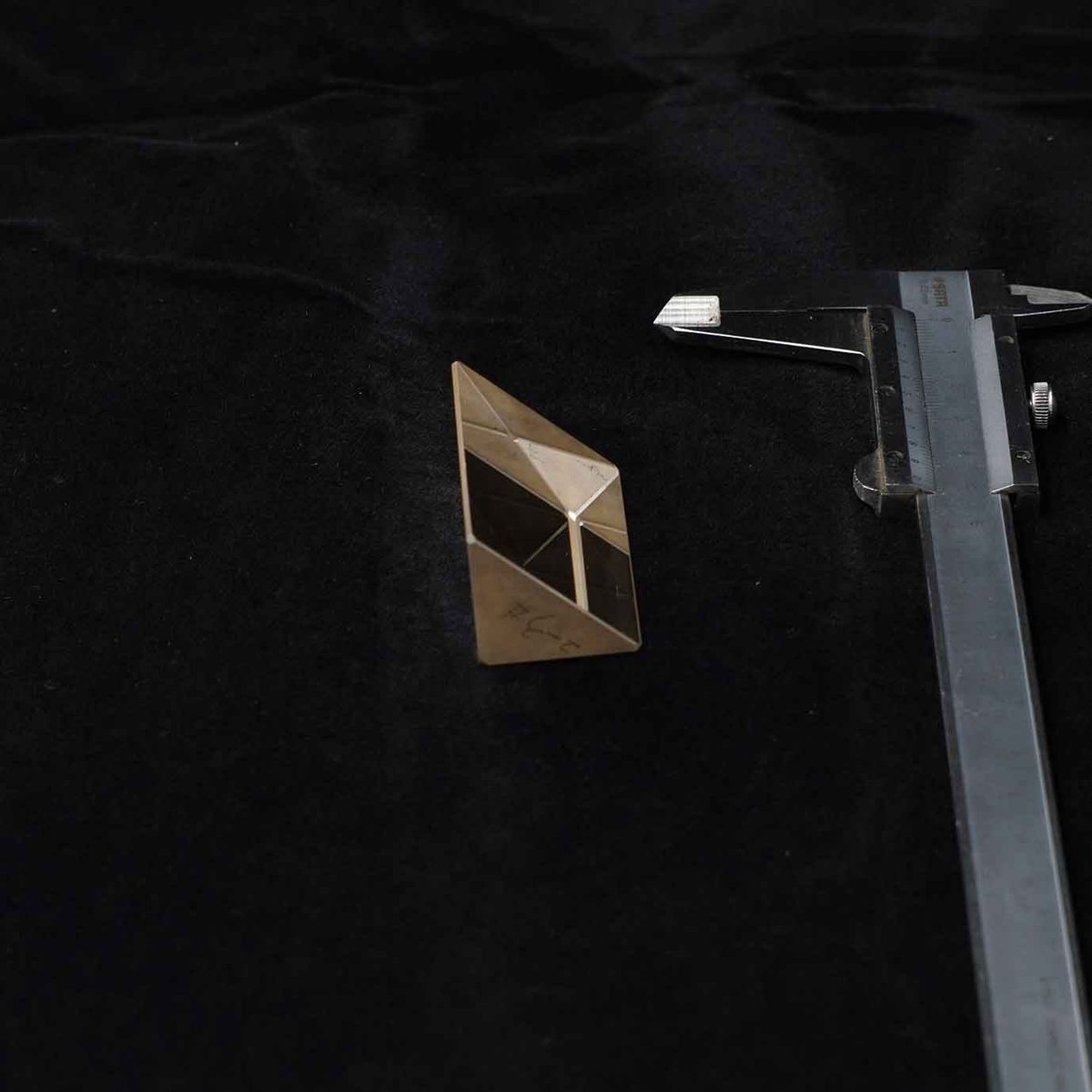

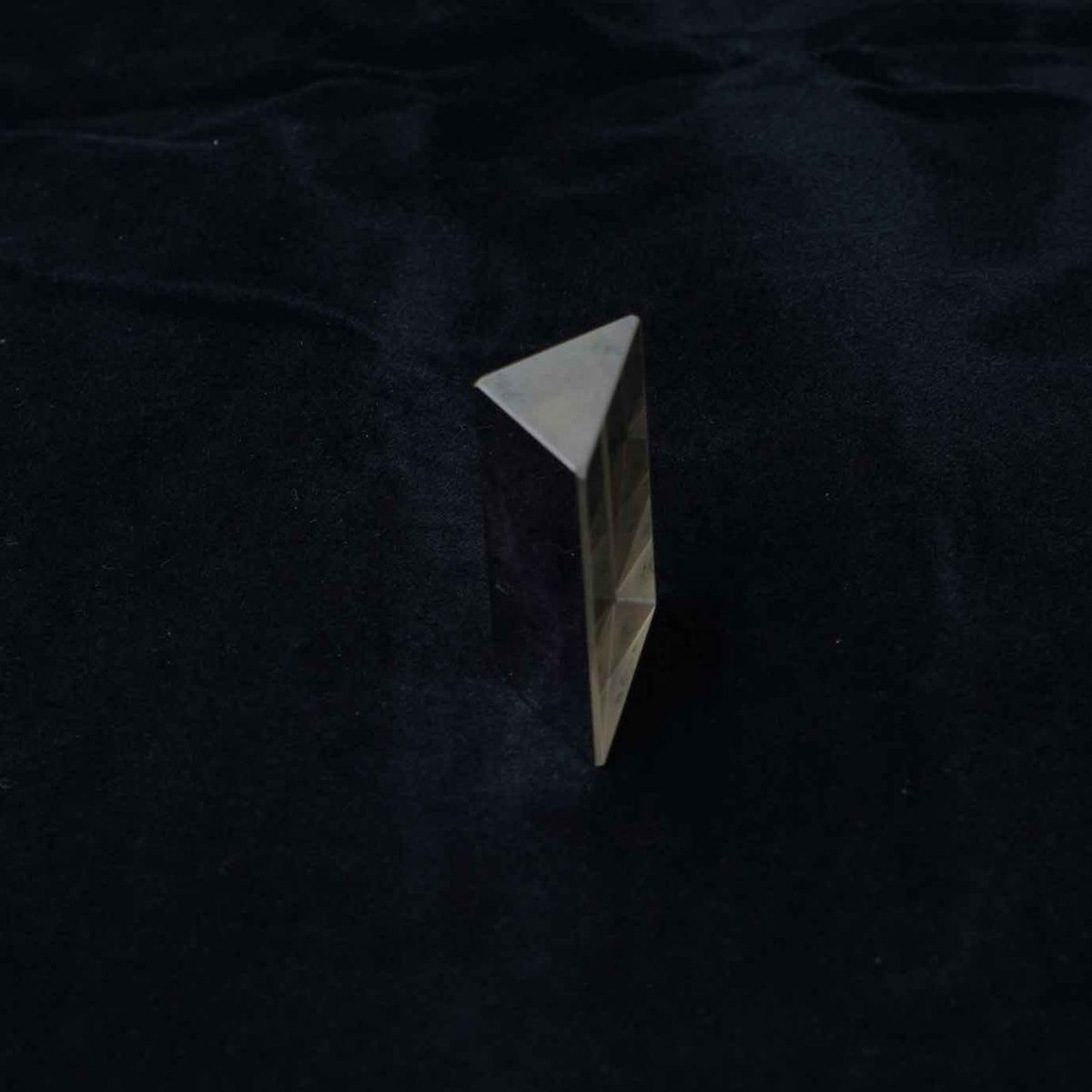

12.5 mm Optical Glass Right-angle Optical Prism, AR Coated
Explore our Right Angle Prism for enhanced accuracy in optical applications with customizable options.
Core attributes
- Material
- Optical Glass
- Shape
- Right-angle
- Size
- 12.5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Right-angle
- Size
- 12.5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
The Right Angle Prism is designed to enhance accuracy in optical applications such as medical imaging. With an anti-reflective coating, it minimizes glare, ensuring clearer images. Its durable and lightweight construction makes it ideal for long-term use in various environments. This prism offers customizable OEM and ODM options to fit specific project needs.
Key Features
- Angle Tolerance: ±2’’~±5’ for precise alignment in optical paths.
- Flatness: 1/4 Lambda ensures minimal wavefront distortion.
- Lightweight Design: Weighs only 0.03 grams for easy integration.
- Anti-Reflective Coating reduces glare, improving image clarity.
- Customizable Services available for OEM and ODM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Right-angle |
| Size | 12.5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM |
| Warranty | 1 Year; 1 year |
| Type | Right Angle Prism |
| Angle Tolerance | ±2’’~±5' |
| Flatness | 1/4 Lambda |
| Thickness Tolerance | 0.01~0.05 |
| Diameter Tolerance | +0/-0.05mm |
FAQ
What are the angle and thickness tolerances?
Angle tolerance is ±2’’~±5’, and thickness tolerance ranges from 0.01 to 0.05 mm.
Is customization available for this prism?
Yes, customizable OEM and ODM options are available.
