1 / 6Optical Filters

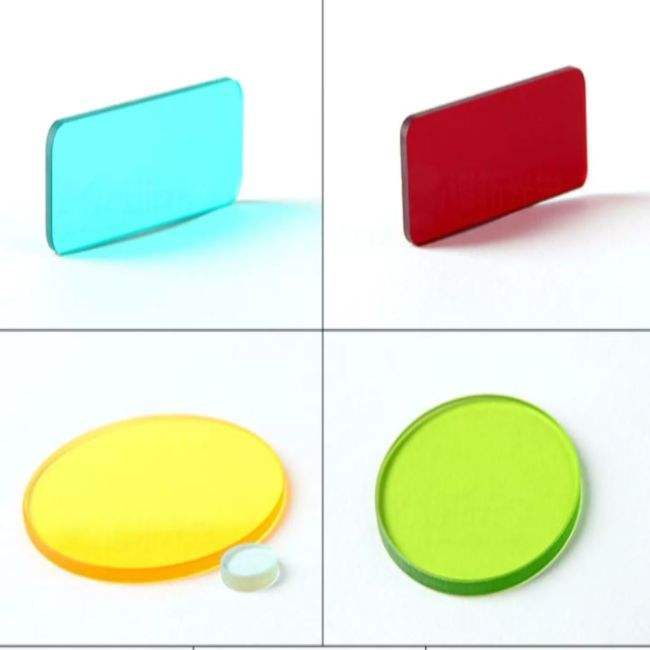

5 mm Optical Glass Round Optical Filter, AR Coated
Optical filter for machine vision, laser, and medical applications with 90% transmittance and customizable sizes.
Core attributes
- Material
- Optical Glass
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Round
- Size
- 5 mm
- Thickness
- Custom
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This optical filter is designed for applications in machine vision, laser, and medical fields, providing a reliable solution for light filtration. Made from colored optical glass, it filters light through intrinsic ion absorption, ensuring excellent optical stability and uniform color filtering. With a transmittance of 90%, it effectively retains specific bands of visible light while blocking irrelevant wavelengths, making it ideal for precise imaging and testing applications.
Key Features
- Transmittance of 90% ensures effective light filtering for various applications.
- Available in round shape, accommodating diverse installation requirements.
- AR coating option enhances transmittance to 83%-88%, minimizing surface reflections.
- Customizable sizes from 5mm to 150mm for tailored solutions.
- Deep absorption of irrelevant wavelengths (<0.1% cut-off) improves testing accuracy.
Applications
Machine Vision, Laser, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Round |
| Size | 5 mm |
| Thickness | Custom |
| Transmittance | 90% |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 90%; 90 |
FAQ
Can I get custom sizes?
Yes, sizes can be customized from a minimum of 5mm to a maximum of 150mm.
What is the minimum order quantity?
The product supports small sample trial orders and mass bulk orders.
