Custom Size Optical Glass Round Optical Filter
Dual-bandpass optical filter for machine vision and laser applications, offering high transmittance and excellent out-of-band blocking.
Core attributes
- Material
- Optical Glass
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 540nm
- Od
- 3
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 540nm
- Od
- 3
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description

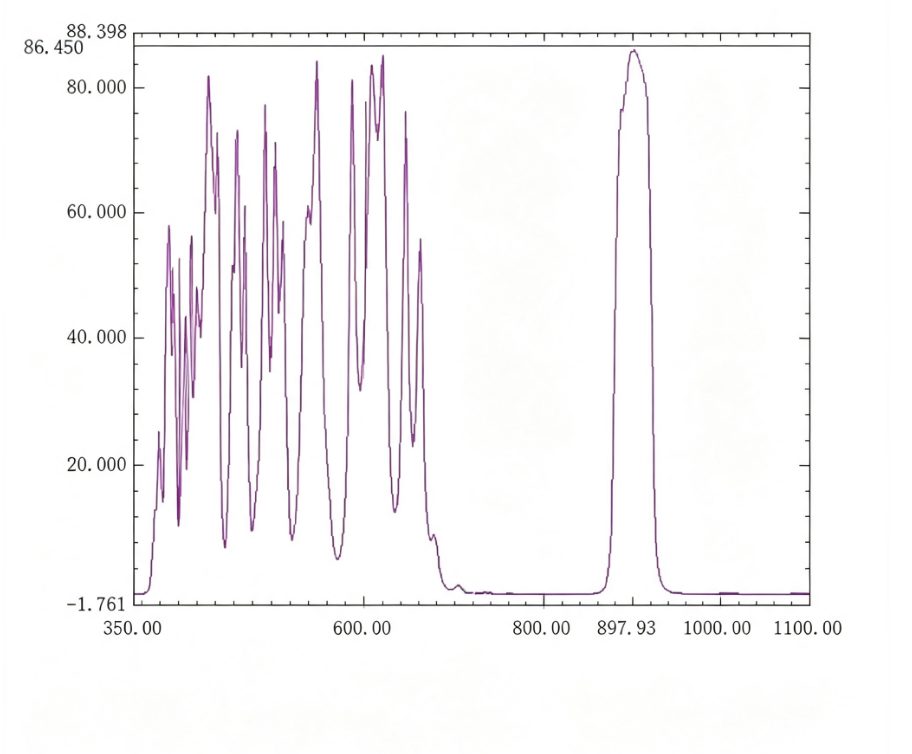

This dual-bandpass optical filter is designed for applications in machine vision and laser systems, enabling simultaneous transmission of visible light (400-680 nm) and 905 nm infrared signals. It effectively meets the technical requirements for co-existing imaging and laser ranging on a single optical lens, minimizing the need for multiple filters. With high transmittance and excellent out-of-band blocking, this filter enhances sensor performance by improving signal-to-noise ratios and reducing interference.
Key Features
- High transmittance of ≥85% in the visible band and ≥86% at 905 nm for clear imaging and stable signal reception.
- Optical density OD 3 for effective blocking of unwanted wavelengths, reducing stray light and enhancing image quality.
- Manufactured from high-quality BK7 optical glass for low birefringence and consistent optical performance.
- Custom dimensions, shapes, and thicknesses available to meet specific application needs.
- Suitable for OEM, ODM, and OBM projects to align with diverse customer requirements.
Applications
Machine Vision, Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Round |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 540nm |
| Od | 3 |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85-90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
FAQ
Can I get custom sizes and thicknesses?
Yes, custom dimensions, shapes, and thicknesses can be provided according to customer specifications.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing flexibility for various project sizes.
