Custom Size Optical Glass Round Optical Filter

Product description

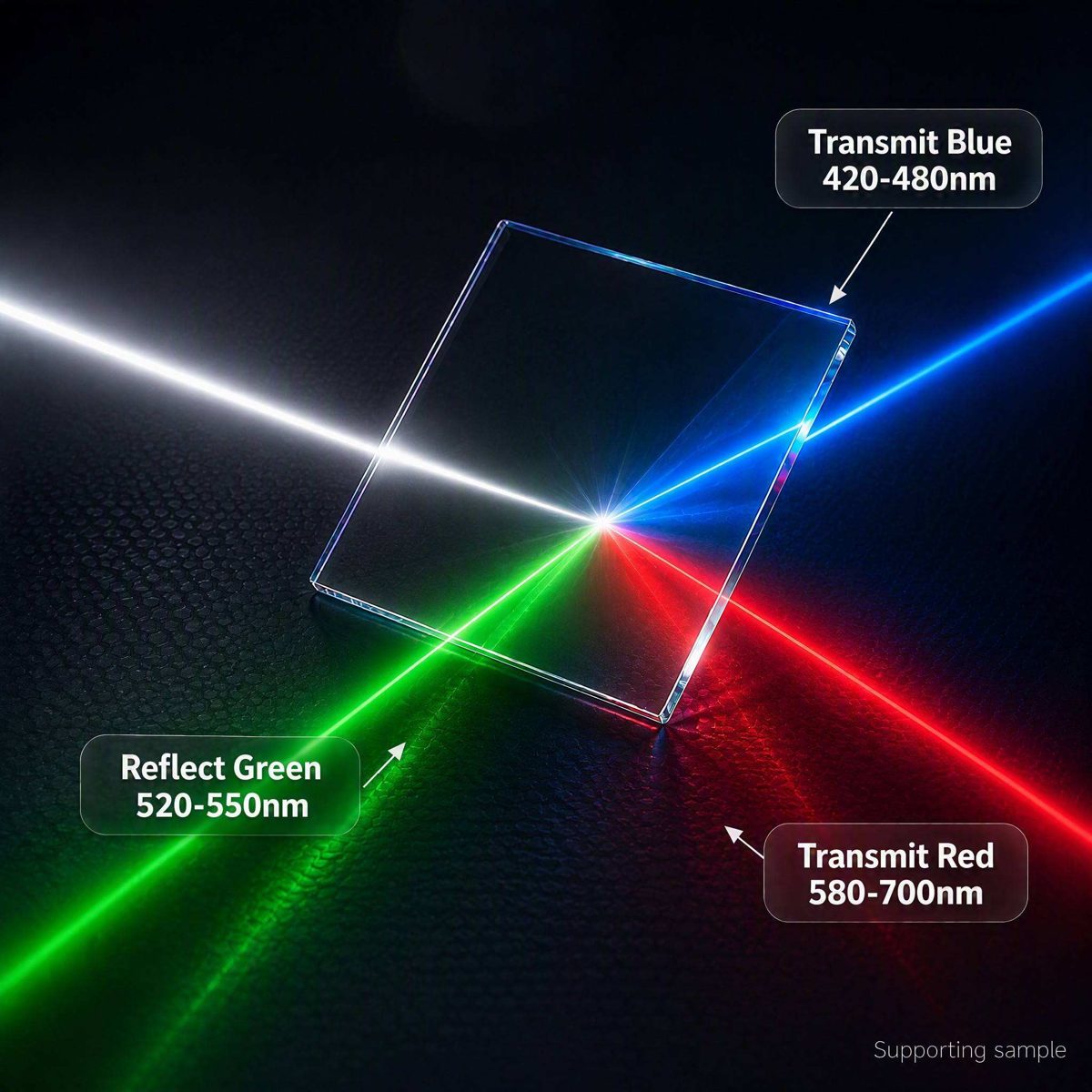

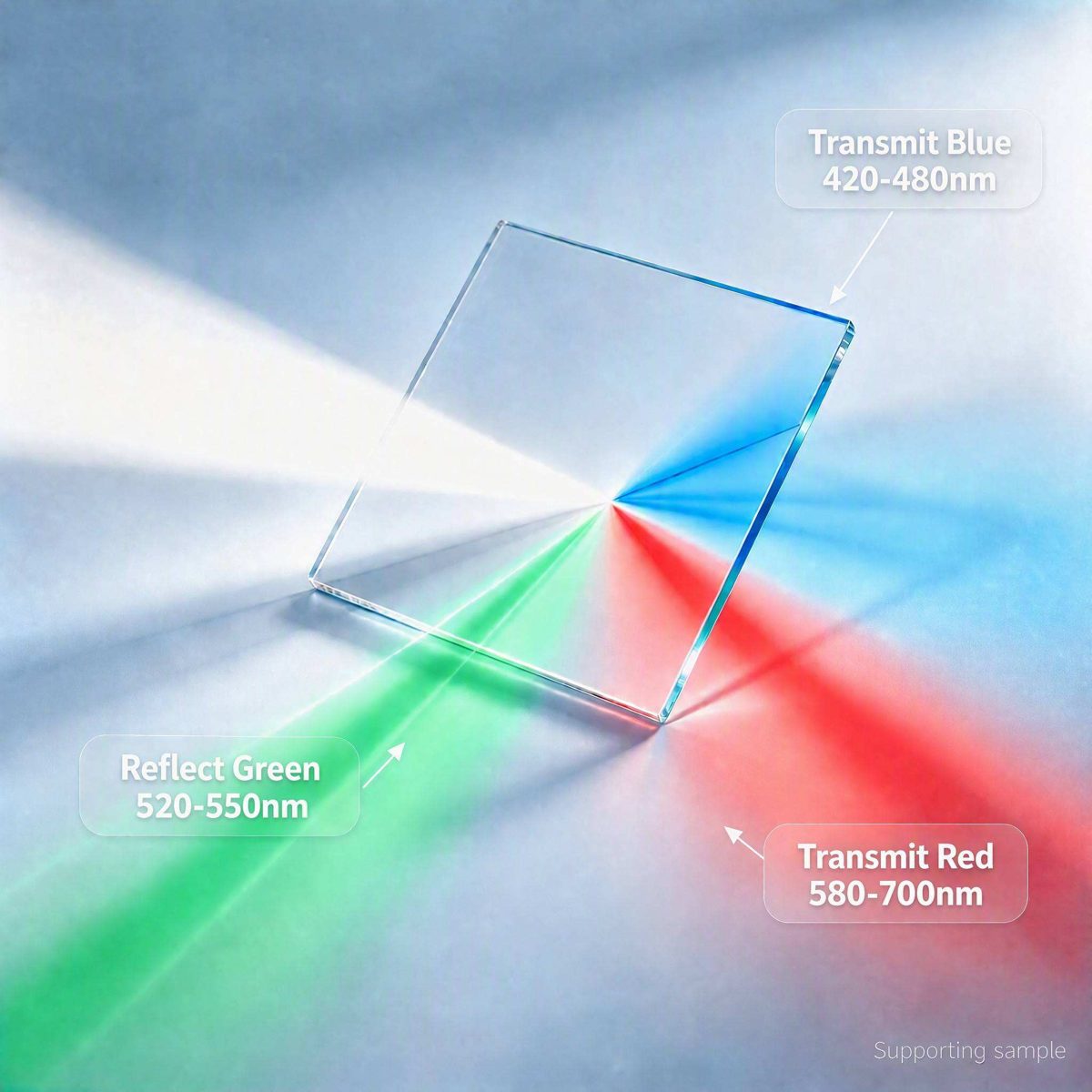

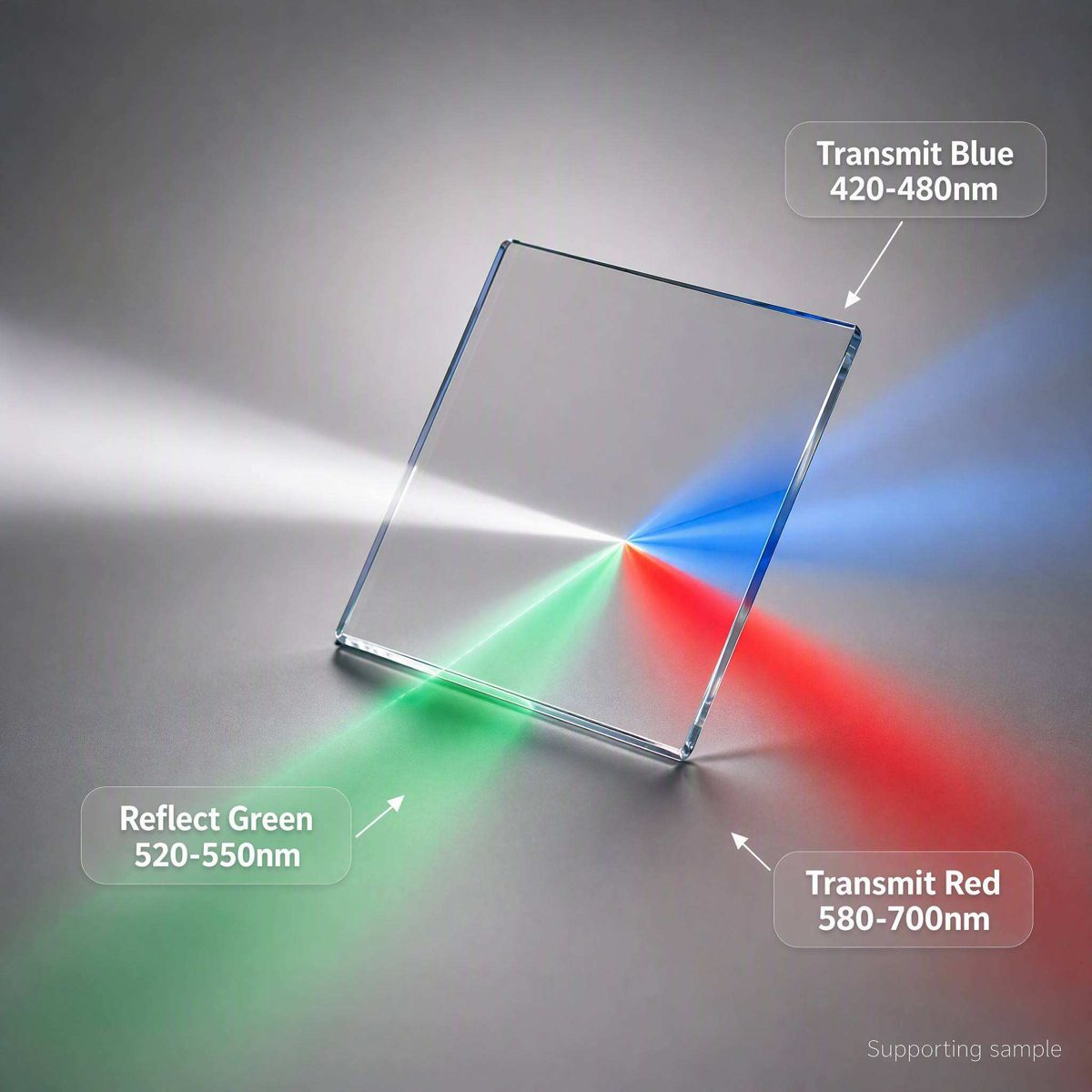

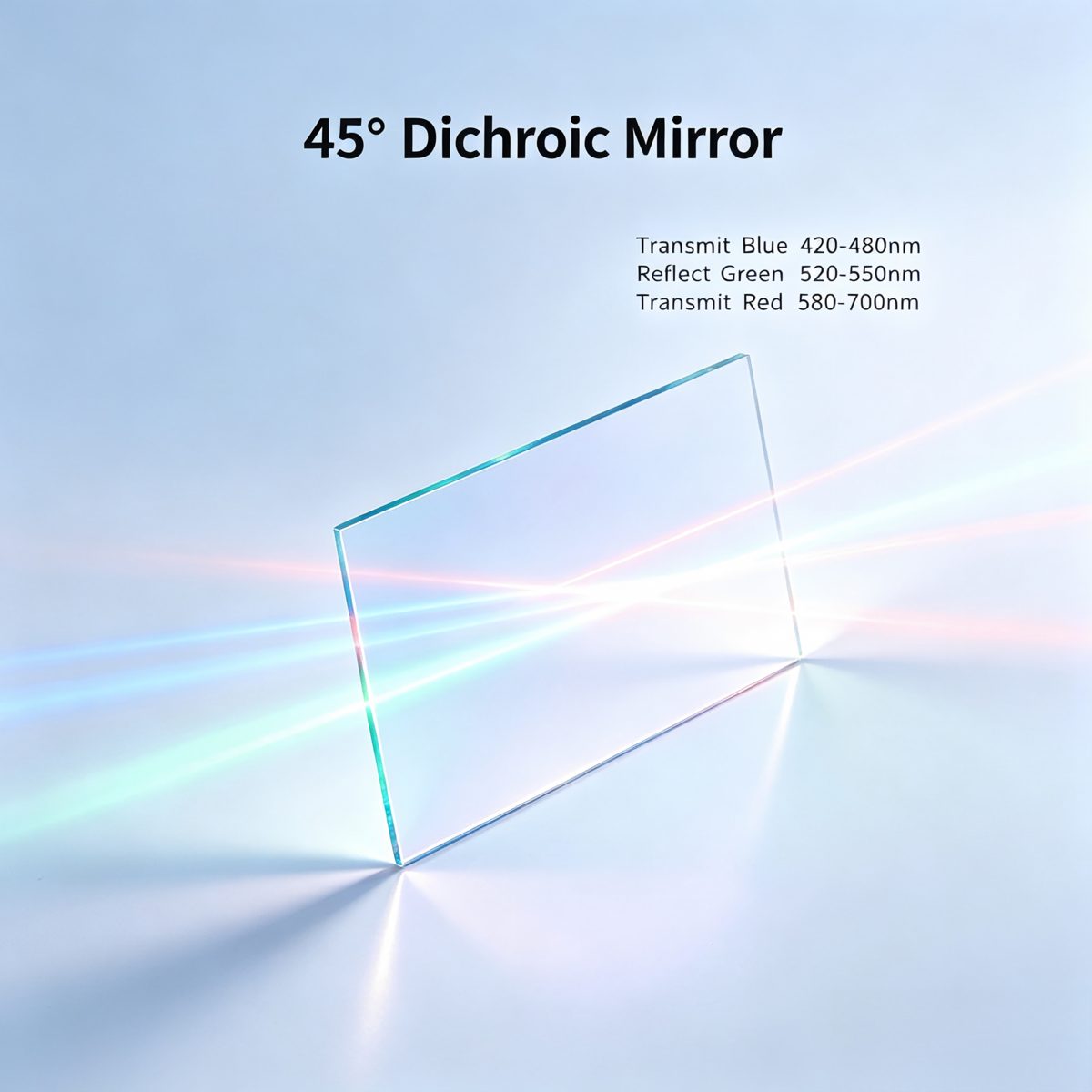

This dichroic filter is engineered for precise spectral separation, ideal for applications in fluorescence microscopy, machine vision, and laser systems. It effectively transmits blue light (420-480 nm) and red light (580-700 nm) while reflecting green light (520-550 nm) with over 95% transmittance. The filter ensures minimal light absorption and chromatic dispersion, making it suitable for applications requiring high optical quality and stability.

Key Features

Transmits blue (420-480 nm) and red (580-700 nm) light while reflecting green (520-550 nm) for accurate color separation.
High transmittance of 95% ensures minimal energy loss and enhanced signal clarity.
Identical optical performance on both sides simplifies installation without surface distinction.
Customizable dimensions available, including round and rectangular shapes, for specific application needs.
Suitable for various applications including medical imaging, spectroscopy, and laser systems.

Applications

Fluorescence, Microscopy, Machine Vision, Laser, Medical, Spectroscopy

Specification Summary

Item	Value
Material	Optical Glass
Shape	Round
Size	Custom
Thickness	Custom
Transmittance	95%
Filter Type	dichroic
Cwl	450nm
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	95%
Customized Support	customization; OEM, ODM, OBM
Warranty	None
Surface Treatment	Coating
Brand	JLGD
Principle	Dichroic filter
Sample	Avaliable

FAQ

Can I get custom sizes?

Yes, full customization of all dimensions is supported, including round and rectangular substrates.

What is the minimum order quantity?

The minimum order quantity is not specified; please inquire for details.
