Custom Size Optical Glass Round Optical Filter

Product description

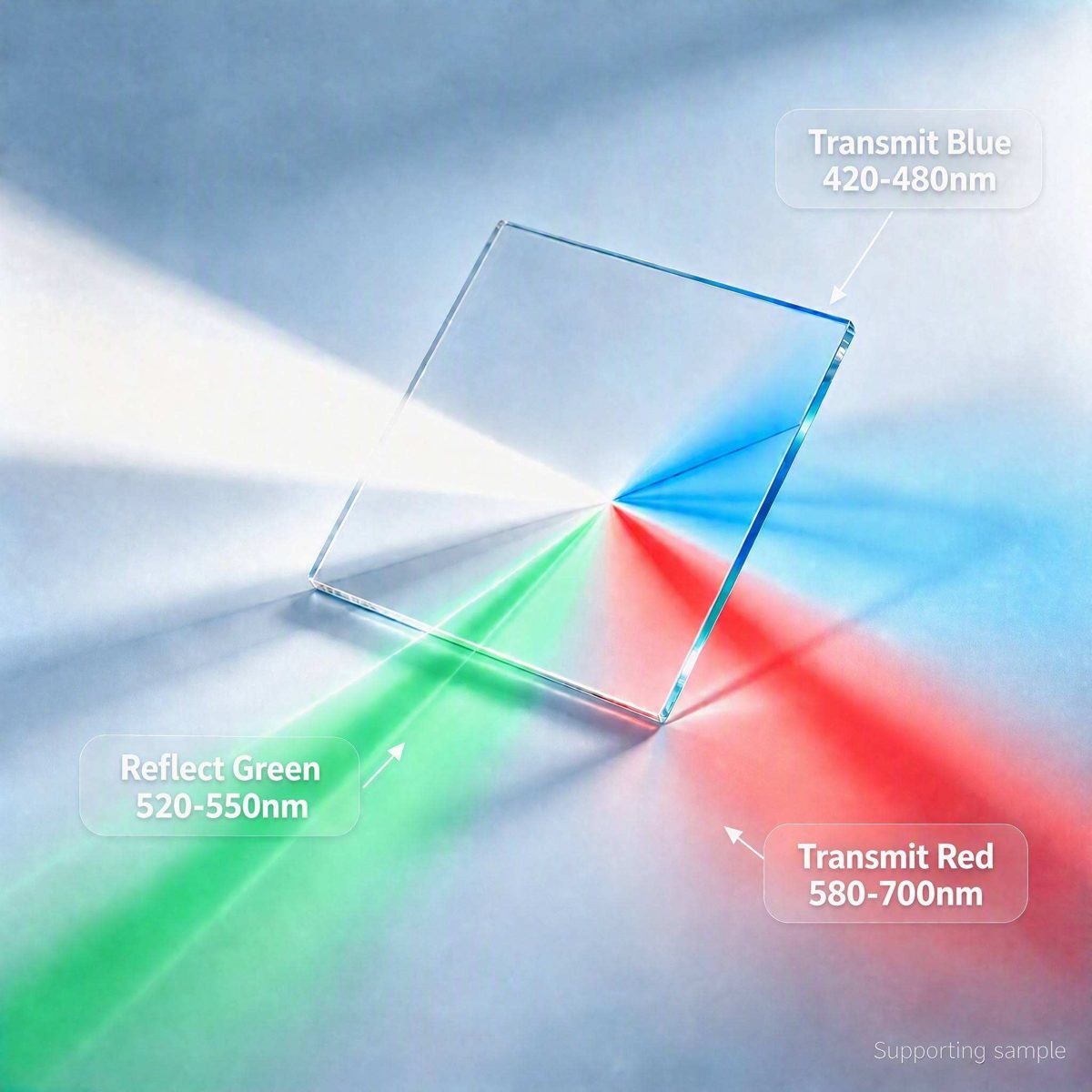

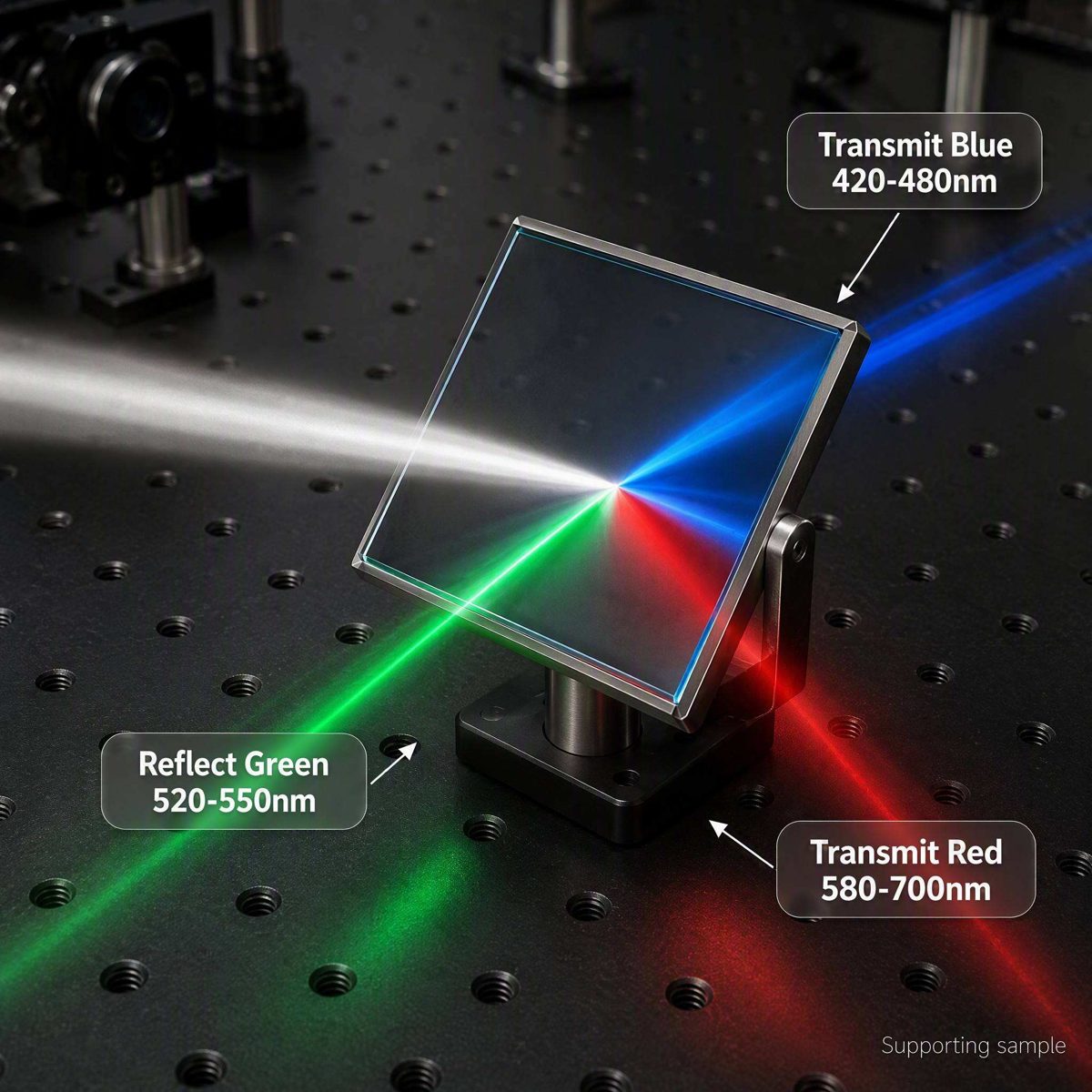

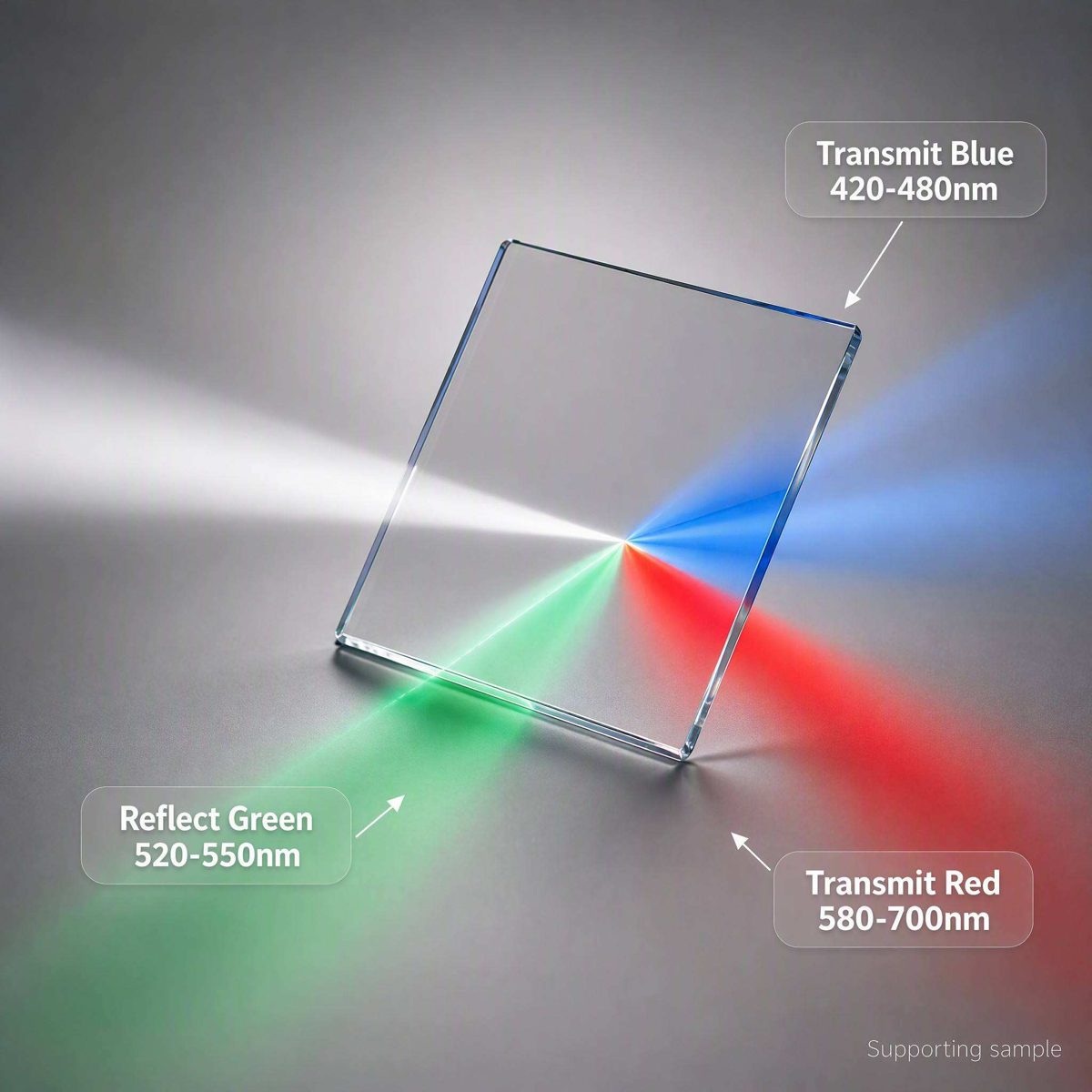

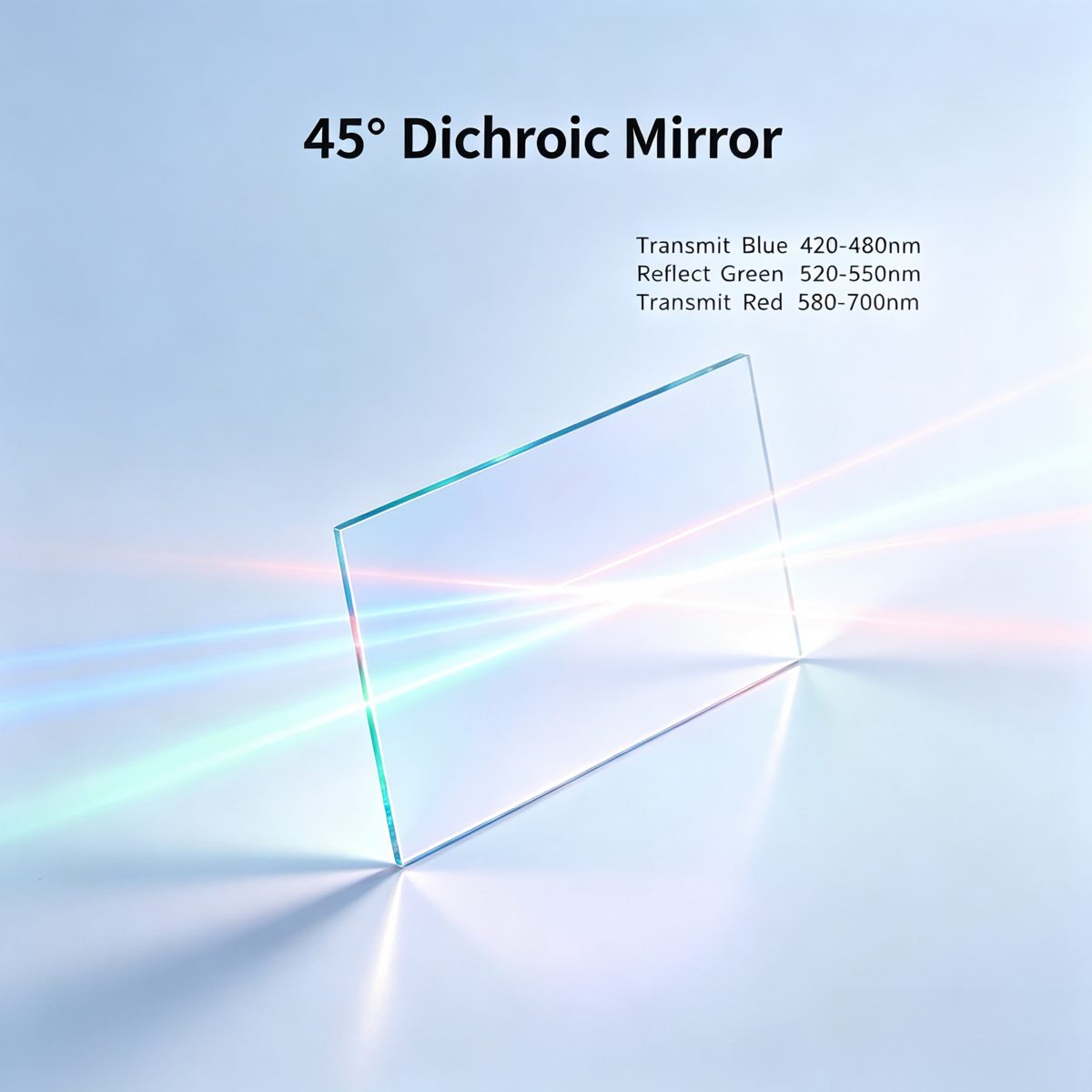

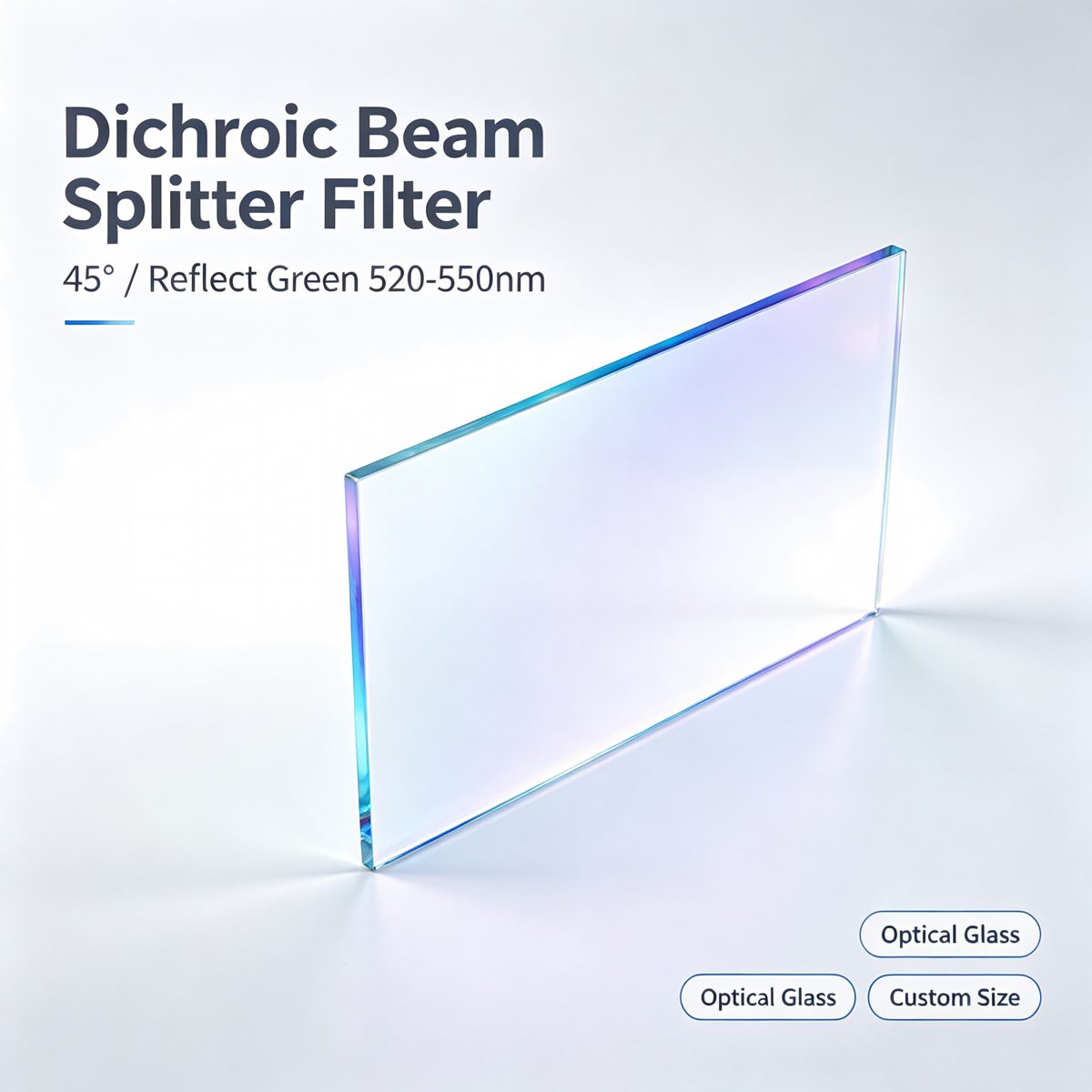

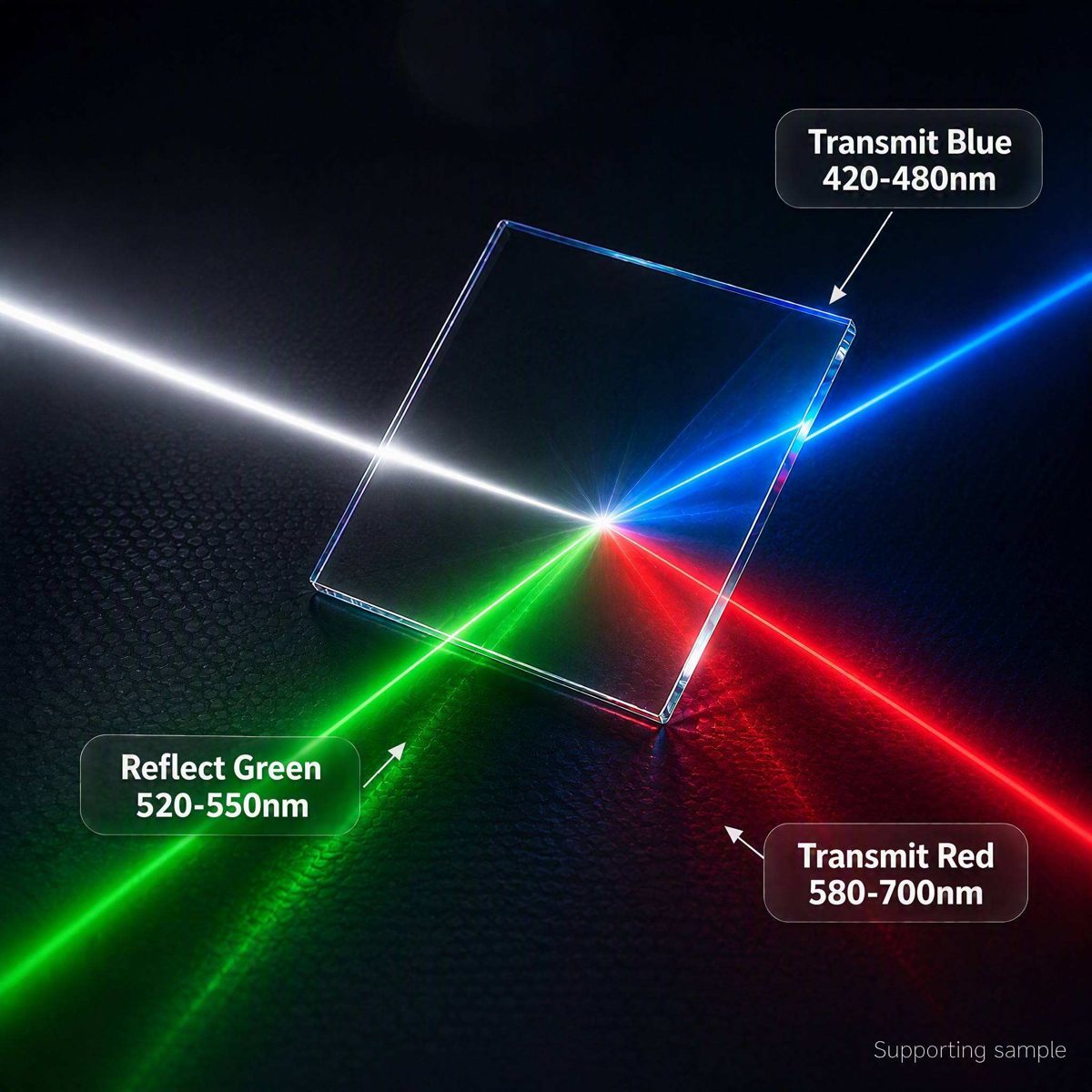

The dichroic filter is designed for precise spectral separation, effectively transmitting blue light (420-480 nm) and red light (580-700 nm) while reflecting green light (520-550 nm). With a transmittance of 95%, it ensures minimal light loss and is ideal for applications in fluorescence microscopy, machine vision, and laser systems. This filter’s superior optical quality minimizes stray light and enhances signal clarity, making it suitable for medical imaging and spectroscopy. Custom sizes and shapes are available to meet specific project requirements.

Key Features

Transmittance of 95% ensures high light efficiency for accurate imaging.
Dichroic design allows for effective color separation, enhancing application performance.
Custom sizing options available for tailored solutions to meet specific needs.
Compatible with various applications including fluorescence and laser systems.
Identical optical performance on both sides simplifies installation.

Applications

Fluorescence, Microscopy, Machine Vision, Laser, Medical, Spectroscopy

Specification Summary

Item	Value
Material	Optical Glass
Shape	Round
Size	Custom
Thickness	Custom
Transmittance	95%
Filter Type	dichroic
Cwl	535nm
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	95%
Customized Support	customization; OEM, ODM, OBM
Warranty	None
Surface Treatment	Coating
Brand	JLGD
Principle	Dichroic filter
Sample	Avaliable

FAQ

Can I get custom sizes?

Yes, full customization of dimensions is supported, including round, square, and rectangular substrates.

What is the minimum order quantity?

The minimum order quantity is not specified; please inquire for details.
