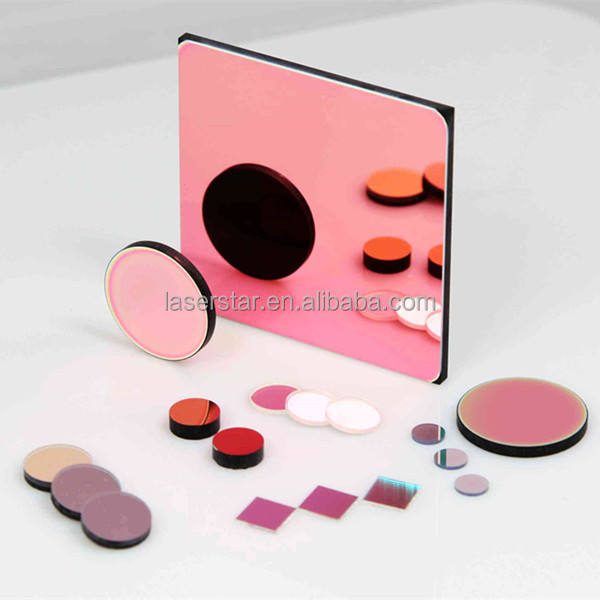

Custom Size Optical Glass Square Optical Filter, AR Coated
Bandpass filter for laser and night-vision applications, 95% transmittance, 905 nm center wavelength, customizable options available.
Core attributes
- Material
- Optical Glass
- Shape
- Square
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 905nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- Square
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmittance
- 95%
- Filter Type
- bandpass
- Cwl
- 905nm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications in laser and night-vision technologies, effectively transmitting wavelengths between 0.7 to 1.7 μm. With a center wavelength of 905 nm and a full width at half maximum (FWHM) of 25 nm, it provides excellent spectral fit for infrared detection systems. The filter boasts a high transmittance of 95%, ensuring optimal performance while blocking unwanted wavelengths.
Key Features
- High transmittance of 95% for enhanced signal clarity.
- Center wavelength of 905 nm tailored for IR detection applications.
- FWHM of 25 nm for precise filtering characteristics.
- Surface quality rated at 60/40 for reliable optical performance.
- Available with AR coatings to minimize reflections.
Applications
Laser, Night Vision
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | Square |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmittance | 95% |
| Filter Type | bandpass |
| Cwl | 905nm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 95%; 99.6% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Cwl | 905nm |
| Fwhm | 25nm |
| Key Word | bandpass filter |
| Use | IR detecting,CCTV,Laser Night Vision Device |
FAQ
Can I get custom sizes?
Custom sizes are not specified, but OEM and ODM options are available.
What is the minimum order quantity?
Minimum order quantity is not provided in the data.
