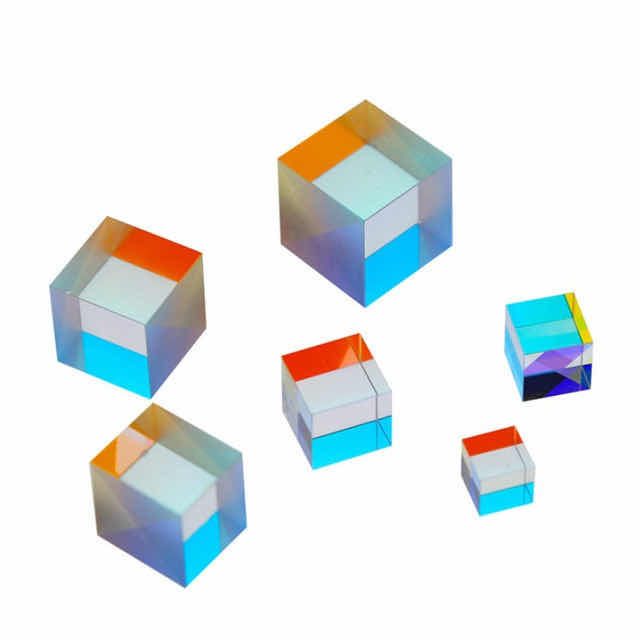

22 mm Optical Glass X-cube Optical Prism
Explore the X-Cube prism for projection applications with precise angle tolerance and customizable options.
Core attributes
- Material
- Optical Glass
- Shape
- X-cube
- Size
- 22 mm
- Thickness
- Custom
Product facts
Key attributes
- Material
- Optical Glass
- Shape
- X-cube
- Size
- 22 mm
- Thickness
- Custom
Product description
The X-Cube prism is ideal for projection applications, enabling efficient light manipulation and beam combination. With a right-angle geometry, it ensures precise angle tolerance of 3’’~5’’ for reliable optical paths. Its transparent optical glass construction supports high-performance imaging, making it suitable for various projection systems.
Key Features
- capability: Right-angle geometry; benefit: Ensures accurate beam alignment for projection applications.
- capability: Angle tolerance of 3’’~5’’; benefit: Provides reliable performance in optical path configurations.
- capability: Dimension tolerance of 0.0/-0.1mm; benefit: Ensures consistency across batches for dependable integration.
- capability: Flatness of Lambda/10; benefit: Maintains wavefront integrity for high-quality imaging.
- capability: Customized support (OEM, ODM, OBM); benefit: Facilitates tailored solutions for specific project requirements.
Applications
Projection
Specification Summary
| Item | Value |
|---|---|
| Material | Optical Glass |
| Shape | X-cube |
| Size | 22 mm |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | transparent |
| Angle Tolerance | 3’’~5’’, 3’’~5'' |
| Dimension Tolerance | 0.0/-0.1mm, 0.0/-0.1mm |
| Flatness | Lambda/10, Lambda/10 |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM, ODM, and OBM options.
What are the tolerances for this prism?
The angle tolerance is 3’’~5’’ and dimension tolerance is 0.0/-0.1mm.
