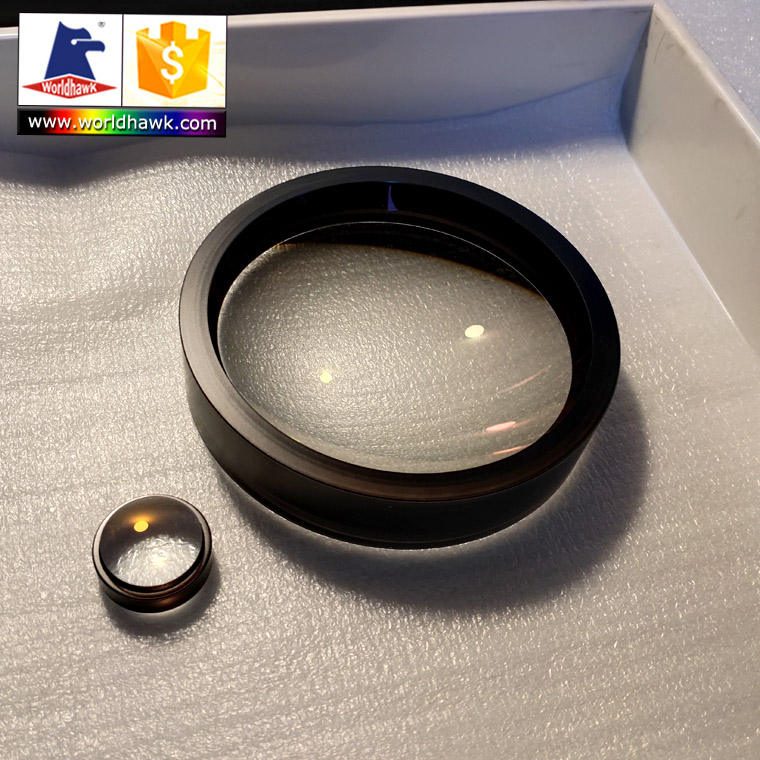

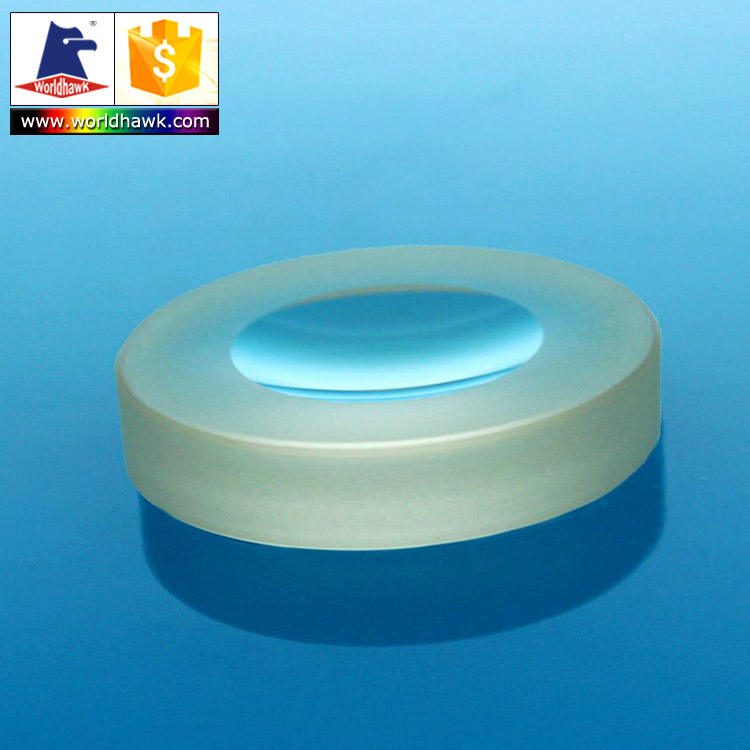

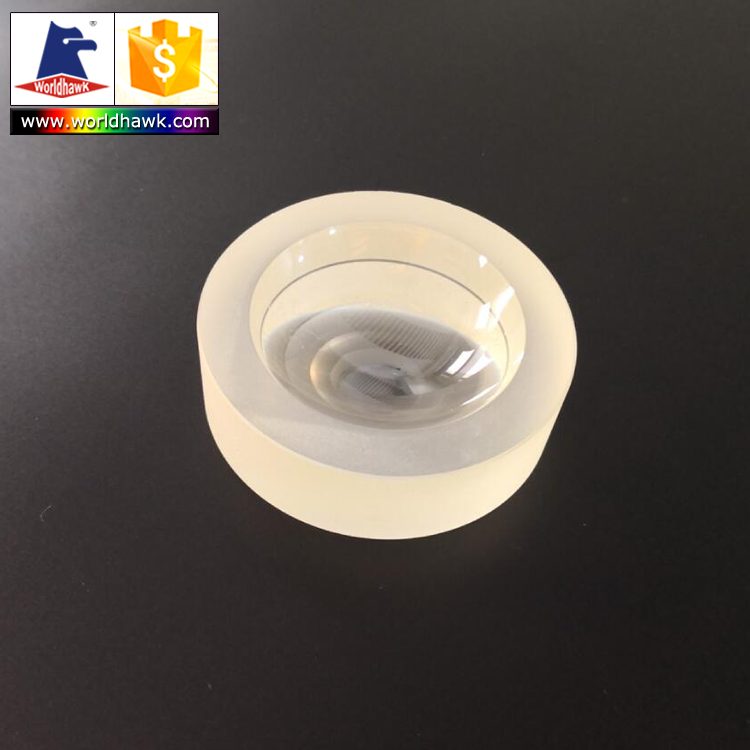

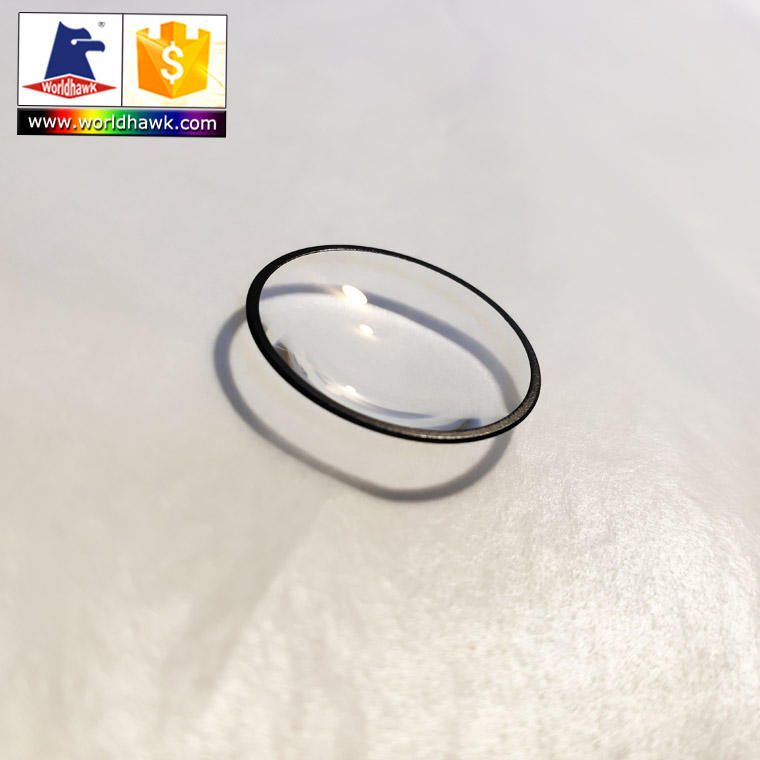

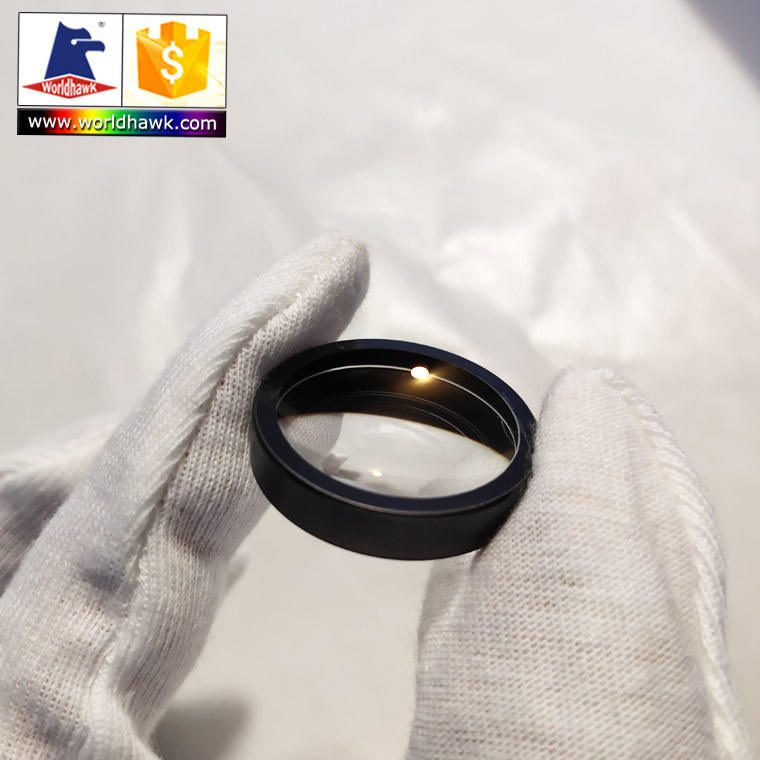

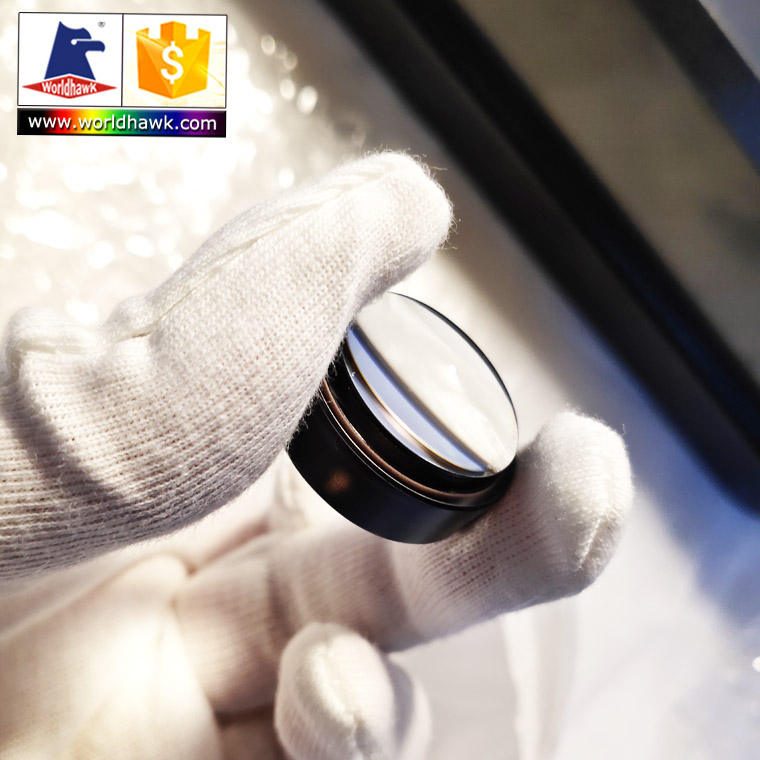

250 mm Sapphire Biconvex Lens, AR Coated

Product description

The biconvex sapphire lens is designed for high-performance applications in microscopy and imaging across the 400-700 nm and <400 nm bands. Its robust sapphire material ensures durability and excellent optical clarity, making it ideal for demanding environments. With a diameter of 250 mm and customizable options available, this lens meets the needs of R&D and procurement engineers seeking reliable optical components for various applications.

Key Features

High transmittance across 400-700 nm and <400 nm bands for optimal imaging performance.
Biconvex shape enhances light focusing capabilities, improving image quality.
Clear aperture greater than 90% ensures minimal light loss.
Flatness specification of <1.5Lambda guarantees superior optical performance.
Customizable options available for OEM and ODM projects.

Applications

Microscopy, Imaging

Specification Summary

Item	Value
Material	Sapphire
Shape	Biconvex
Diameter	250 mm
Coating	anti-reflective (AR), mgf2
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Biconvex Lens
Customized Support	OEM, ODM
Warranty	3 months
Logo/Graphic Design	no
Weight	0.05
Flatness	<1.5Lambda
Centration	<3 arc min
Clear Aperture	>90%

FAQ

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity (MOQ) is not specified, allowing flexibility in ordering.

Can I get a custom size for this lens?

Yes, custom sizes can be made upon request, with diameters ranging from 2.0 mm to 500 mm.
