0.5 mm Sapphire Cylindrical Lens, AR Coated
Explore the Cylinder Powell Lens for machine vision and imaging applications, available in customizable sizes and coatings.
Core attributes
- Material
- Sapphire
- Shape
- Cylindrical
- Diameter
- 0.5 mm
- Thickness
- 6.5 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Sapphire
- Shape
- Cylindrical
- Diameter
- 0.5 mm
- Thickness
- 6.5 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description

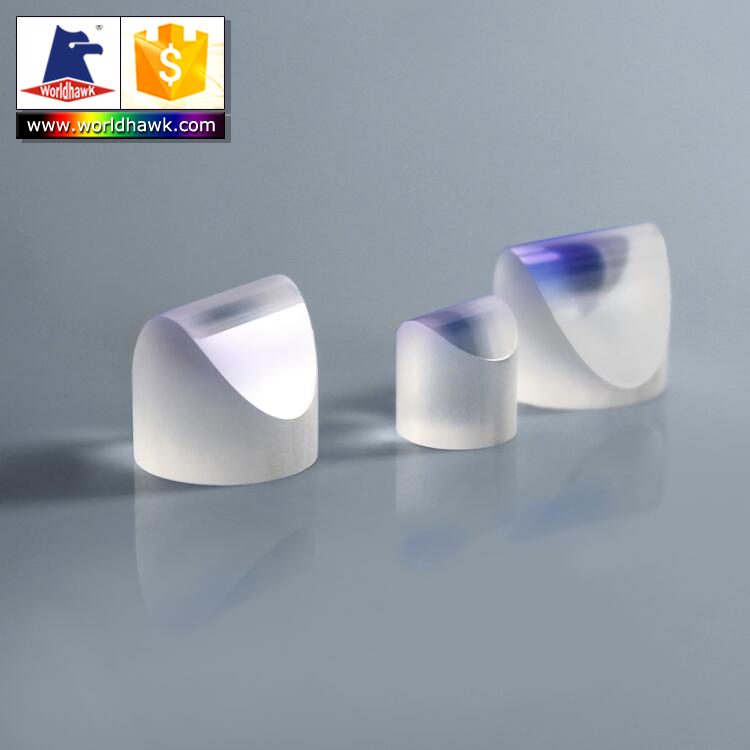

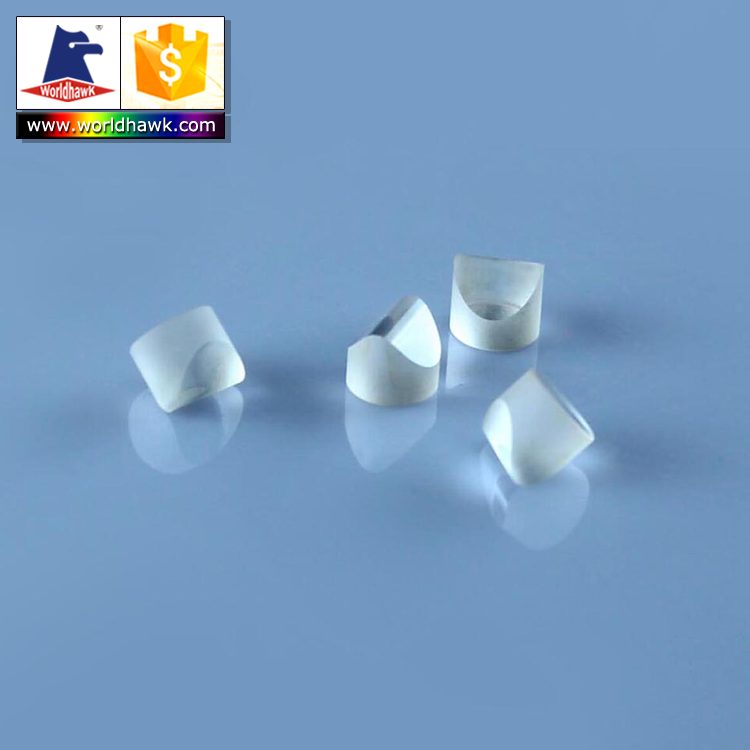

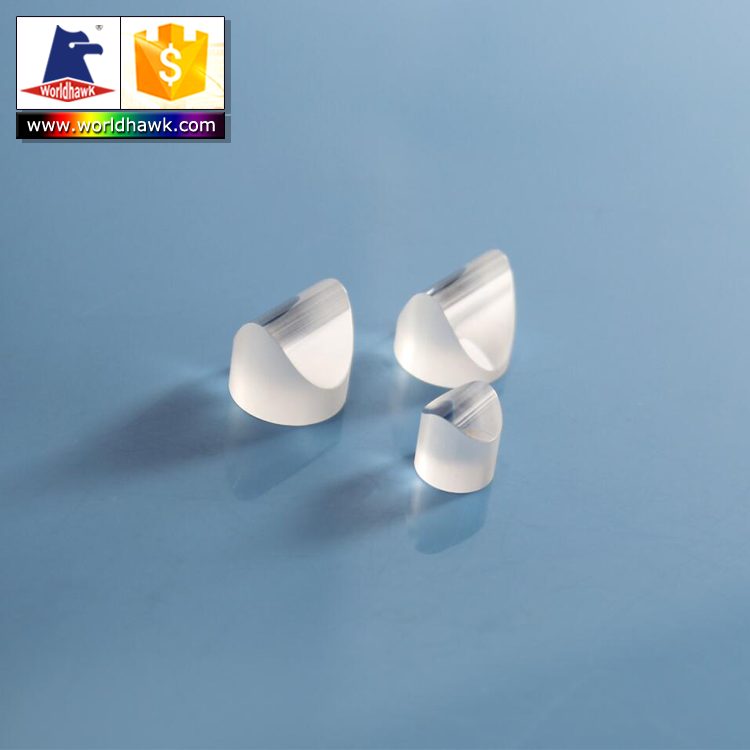

The Cylinder Powell Lens is designed for applications in machine vision, collimation, and imaging, effectively transforming collimated beams into uniform laser lines. With a wavelength range of 0.4 to 1.7 μm, it is suitable for various optical applications. The lens is available in a compact diameter of 0.5 mm and a thickness of 6.5 mm, ensuring versatility in integration. Customization options for coatings and dimensions enhance its adaptability for specific project needs.
Key Features
- Wavelength range: 0.4-1.7 μm for broad application compatibility.
- Diameter of 0.5 mm and thickness of 6.5 mm for compact integration.
- Available coatings: AR or uncoated for tailored performance.
- Customized support for OEM, beam diameter, and fan angle.
- High energy uniformity with less than 25% intensity variation.
Applications
Machine Vision, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Cylindrical |
| Diameter | 0.5 mm |
| Thickness | 6.5 mm |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, Beam diameter, Fan angle, Coating |
| Name | Cylinder Powell Lenses Powell Prism |
FAQ
Can I get custom sizes for the Cylinder Powell Lens?
Yes, custom sizes are available for both diameter and height.
What is the minimum order quantity (MOQ) for this lens?
The minimum order quantity is not specified, allowing for flexible sourcing.
