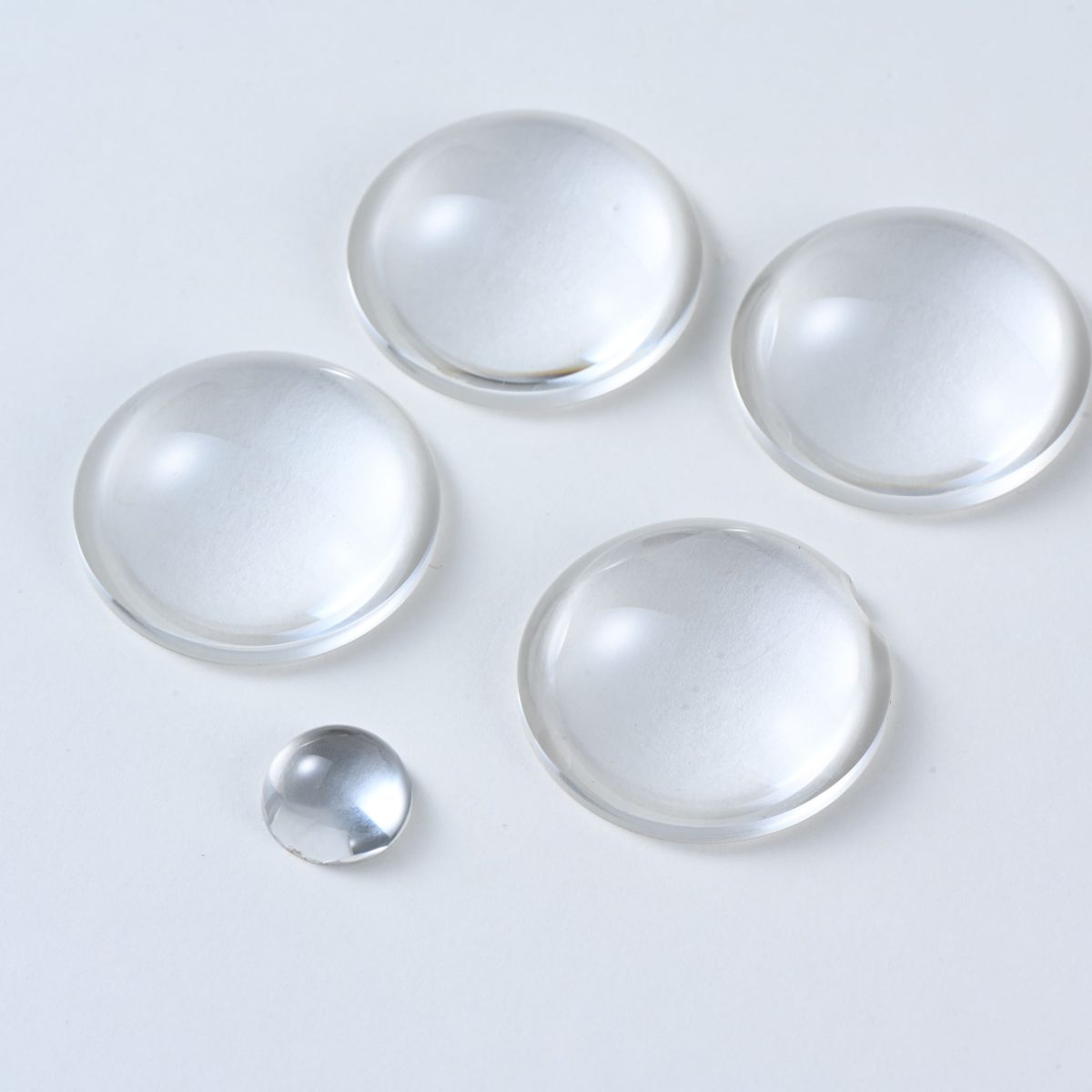

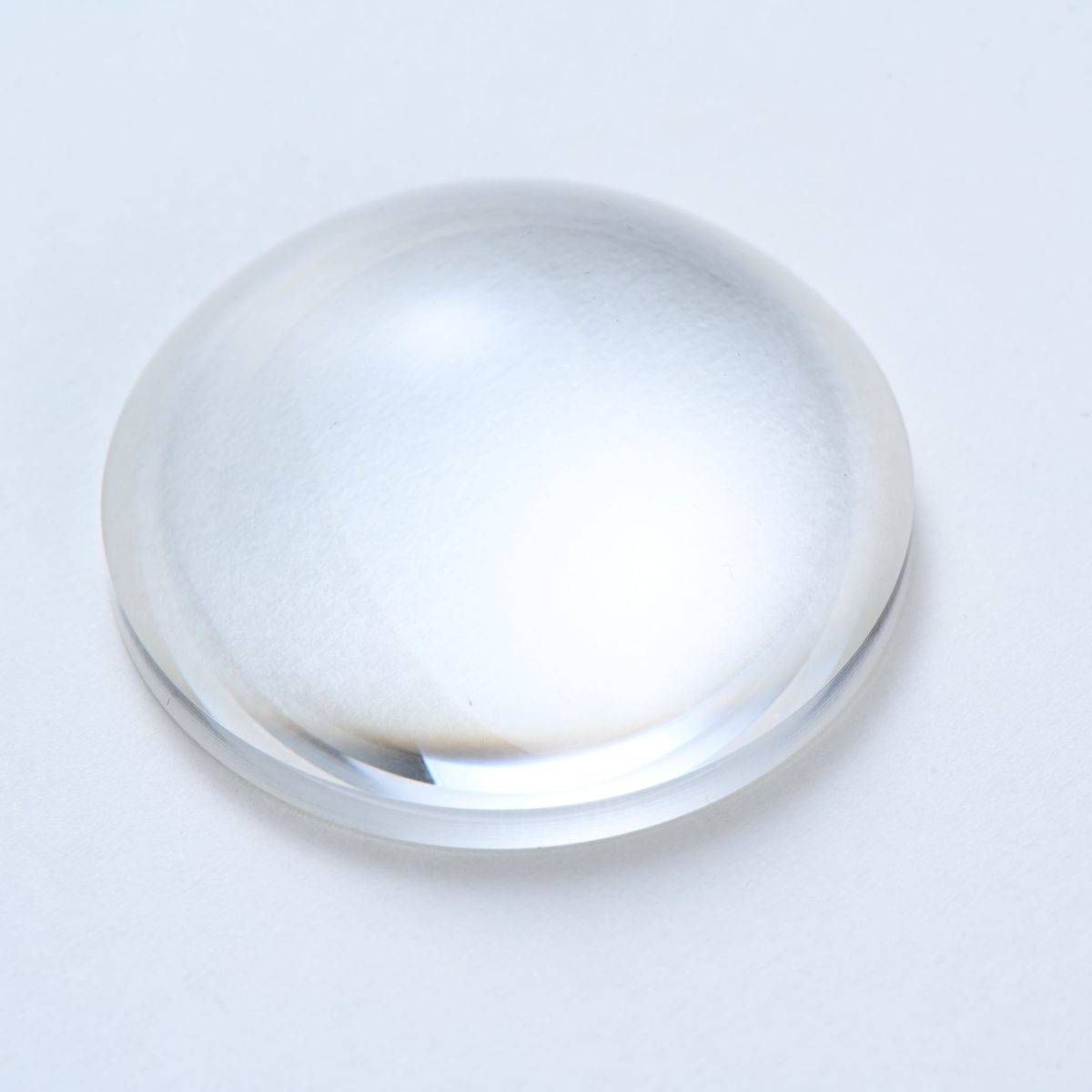

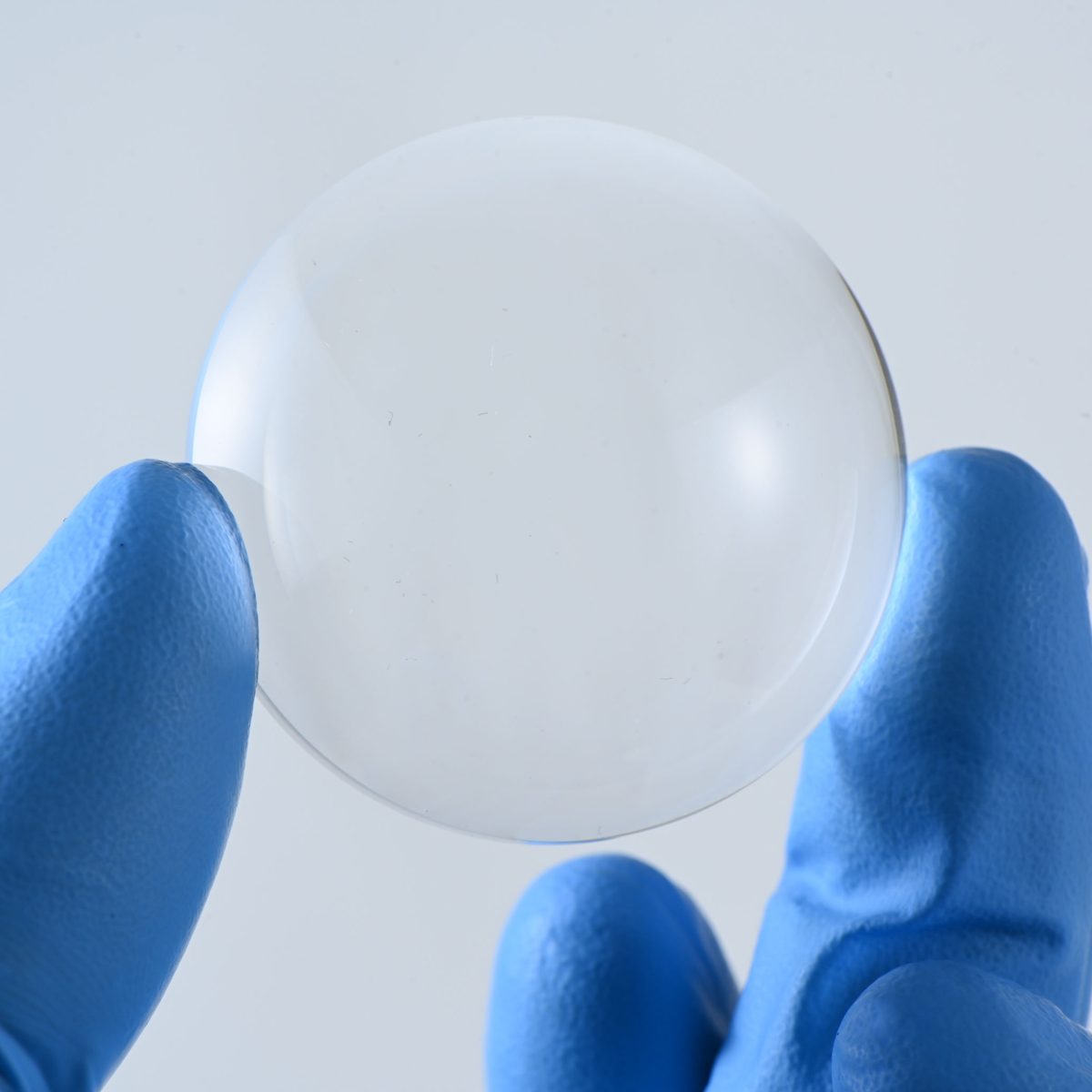

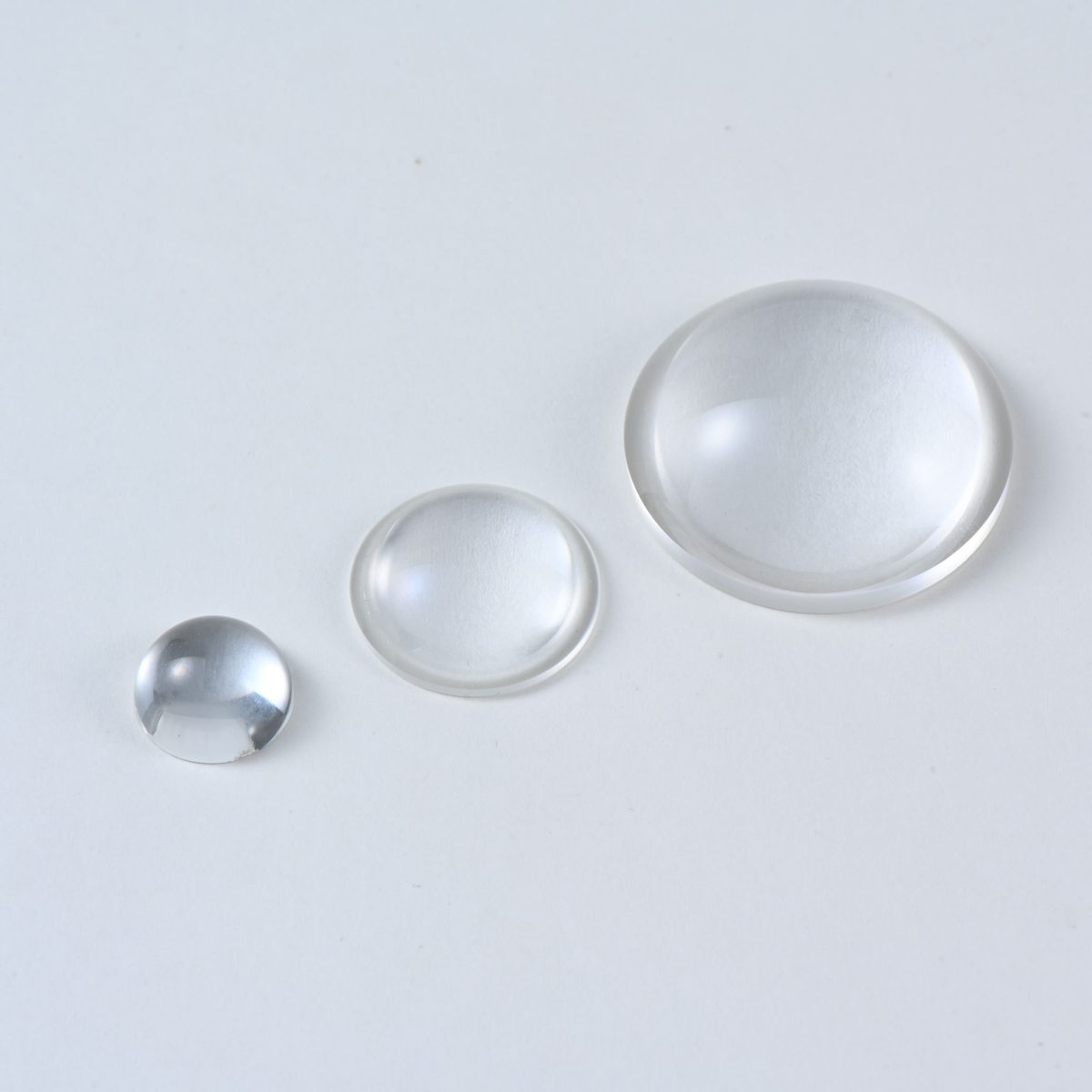

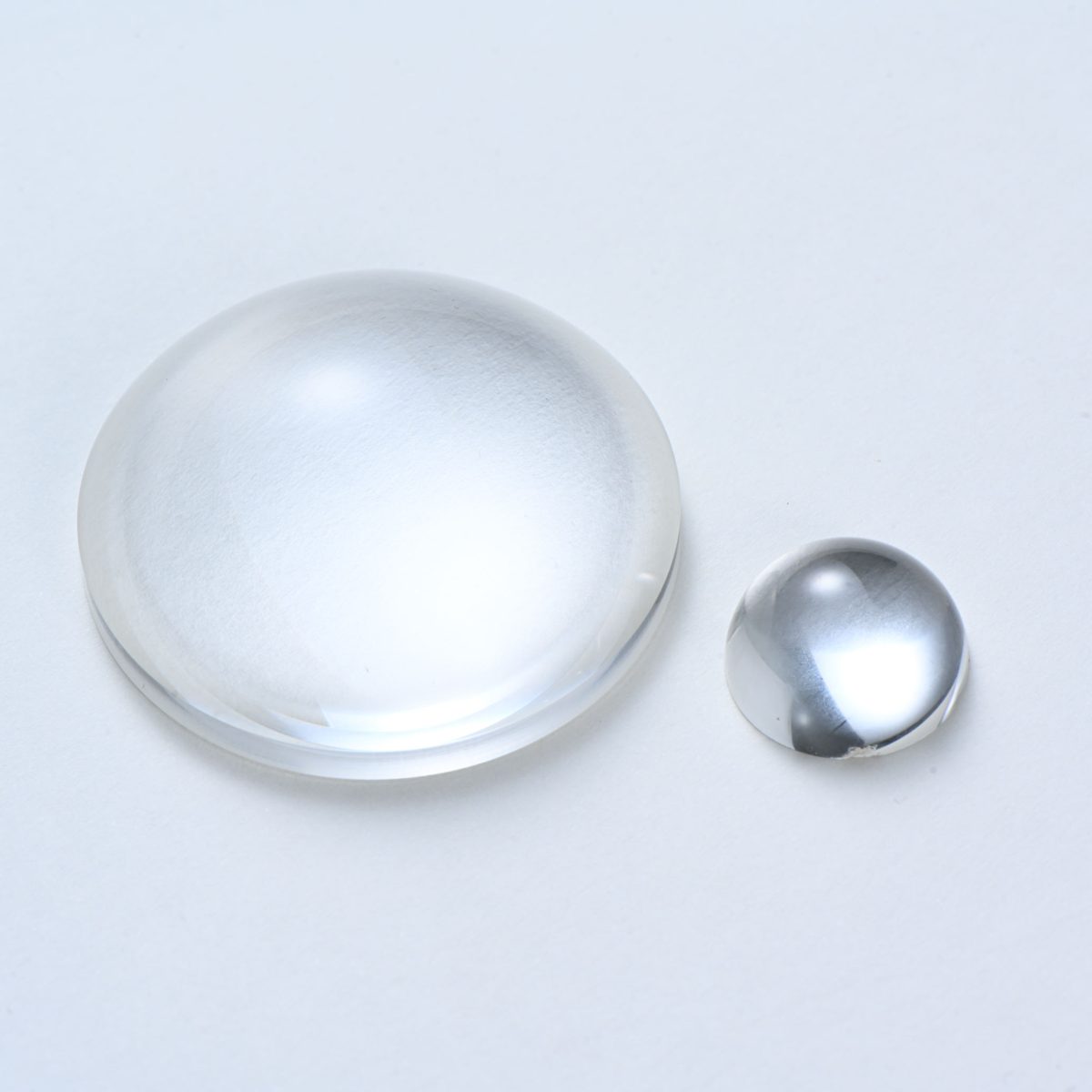

0.5 mm Sapphire Hemisphere Lens, AR Coated
High-performance sapphire hemisphere lens with 99% transmittance for security and medical applications.
Core attributes
- Material
- Sapphire
- Shape
- Hemisphere
- Diameter
- 0.5 mm
- Surface Quality
- 40/20
- Transmittance
- 99%
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Sapphire
- Shape
- Hemisphere
- Diameter
- 0.5 mm
- Surface Quality
- 40/20
- Transmittance
- 99%
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This sapphire hemisphere lens is designed for high-performance applications across multiple bands, including 8-14 μm and 400-700 nm. With a transmittance of over 99%, it is ideal for security, medical imaging, and laser applications. The lens’s exceptional surface quality (40/20) ensures minimal distortion, making it suitable for precision optical systems. Its robust construction and AR coatings enhance performance in demanding environments.
Key Features
- High transmittance (T>99%) for optimal light transmission.
- Surface quality of 40/20 ensures minimal optical distortion.
- Versatile application across multiple wavelength bands (0.7-14 μm).
- Customizable with OEM, ODM, and OBM support for tailored solutions.
- Lightweight design at 0.5 kg for easy integration into systems.
Applications
Security, Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Shape | Hemisphere |
| Diameter | 0.5 mm |
| Surface Quality | 40/20 |
| Transmittance | 99% |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Wavelength | Coated at 400-700nm |
| Transmittance | T>99% |
| Structure | concave convex |
FAQ
Can I get custom sizes for this lens?
Yes, the lens is available with OEM, ODM, and OBM support for customization.
What is the minimum order quantity (MOQ)?
The MOQ details are not specified, please inquire for more information.
