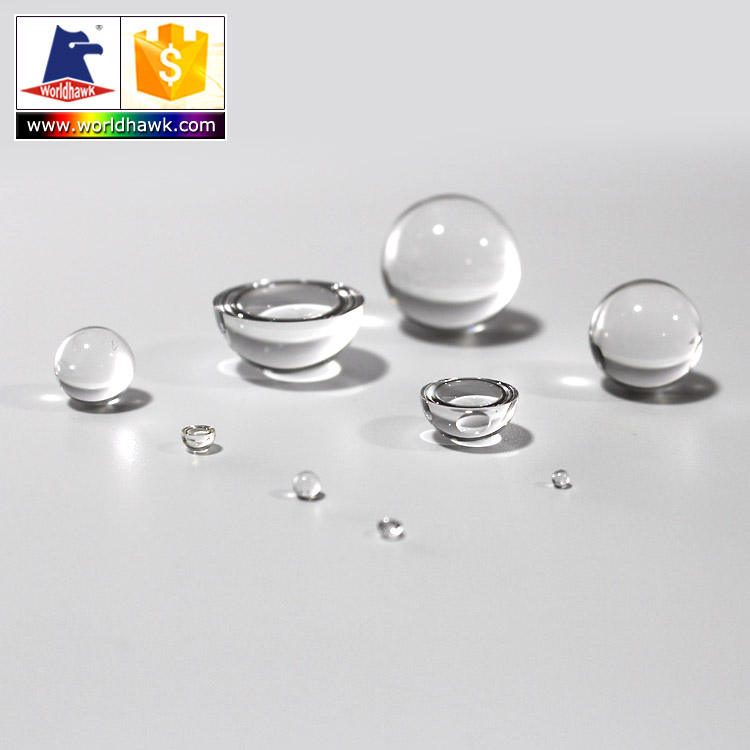

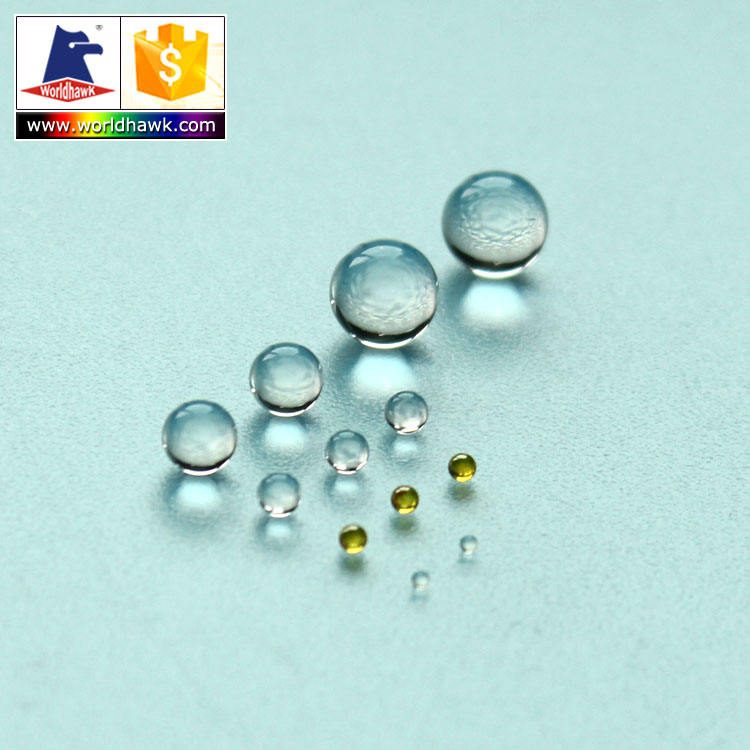

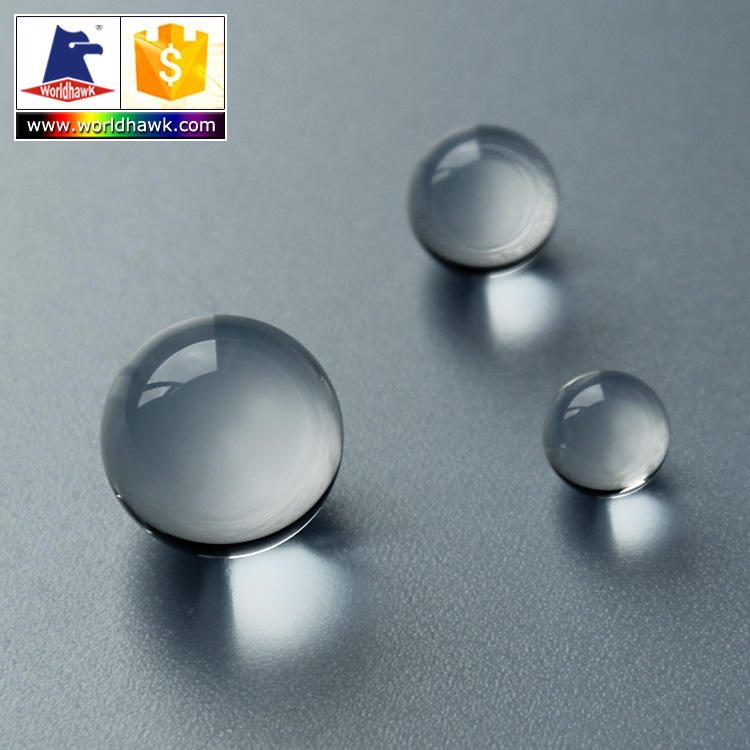

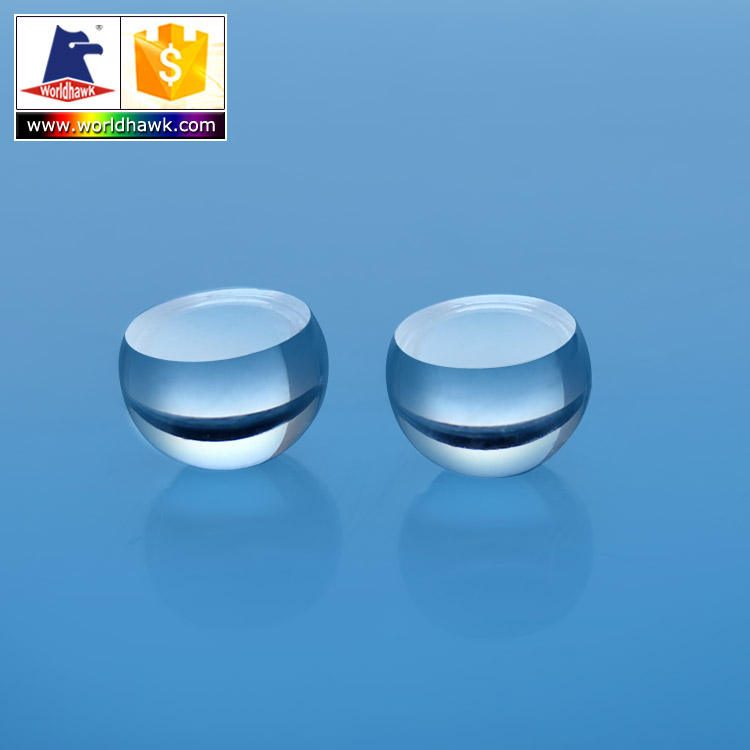

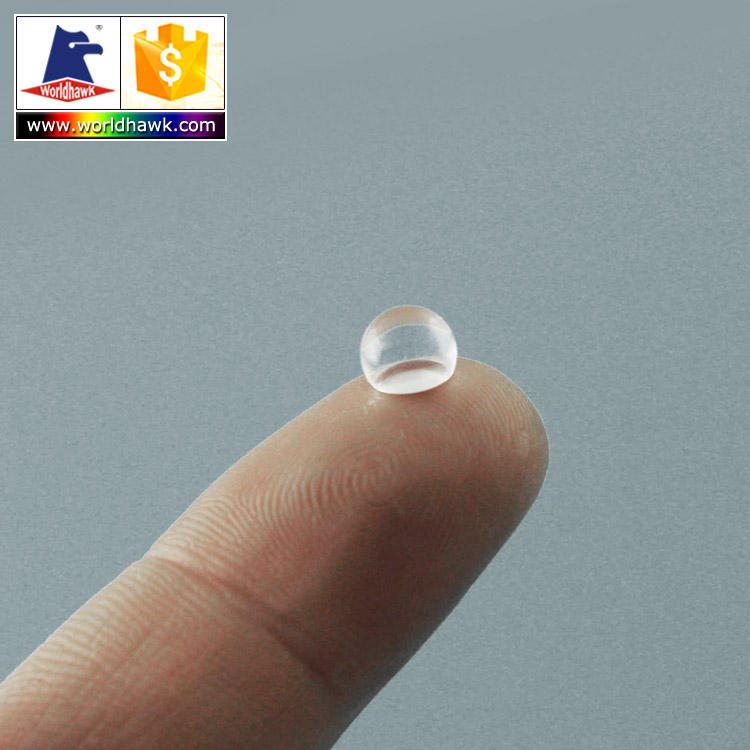

0.3 mm Sapphire Hemisphere Lens, AR Coated

Product description

The Sapphire Hemisphere Ball Lens is designed for applications requiring precise collimation across a range of wavelengths, including 1.7-3 μm, 400-700 nm, and <400 nm. With a diameter range from 0.3 mm to 20.0 mm, this lens provides high-quality optical performance, making it suitable for various optical systems. Its AR coating enhances transmittance, ensuring optimal light management in demanding environments. The lens is manufactured in Jiangsu, with a focus on high precision and reliability.

Key Features

Diameter range: 0.3 mm to 20.0 mm for versatile application fit.
AR coatings enhance light transmission for improved performance.
Roundness tolerance of ≤ 0.0003 mm ensures high precision.
100% clear aperture guarantees maximum light throughput.
OEM and ODM support available for customized solutions.

Applications

Collimation

Specification Summary

Item	Value
Material	Sapphire
Shape	Hemisphere
Diameter	0.3 mm
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Clear Aperture	100%

FAQ

Can I get custom sizes for the Sapphire Hemisphere Ball Lens?

Yes, the lens is available in a diameter range from 0.3 mm to 20.0 mm, allowing for custom sizing.

What is the minimum order quantity (MOQ) for this lens?

The specific minimum order quantity (MOQ) is not provided, but high monthly output suggests flexibility in order sizes.
