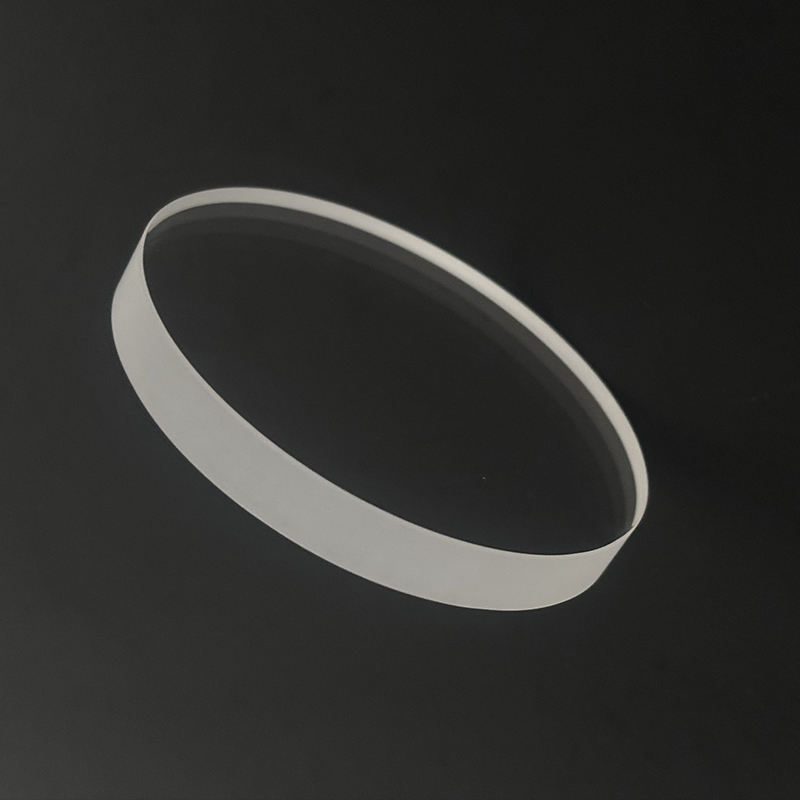

0.5 mm Sapphire Optical Window

Product description

This sapphire optical window is designed for applications in semiconductor and medical fields, providing exceptional performance across multiple wavelength bands, including 0.7-1.7 μm and 3-5 μm. With a high transmittance of 85% and a surface quality of 1/10, it ensures optimal light transmission and minimal distortion. The window’s durability and resistance to harsh environments make it suitable for demanding applications.

Key Features

High transmittance of 85% for efficient light passage.
Surface quality rated at 1/10, ensuring minimal optical distortion.
Available in diameters ranging from 0.5 mm to 750 mm for versatile applications.
Customized support for OEM and ODM projects to meet specific needs.
Exceptional hardness (Mohs 9) for durability in challenging environments.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Diameter	0.5 mm
Thickness	Custom
Surface Quality	1/10
Transmittance	85%
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	1 Year
Customized Support	OEM, ODM
Roughness	Ra<0.3nm
S/D	10/5,40/20,60/40, 80/50
Transmittance	85%

FAQ

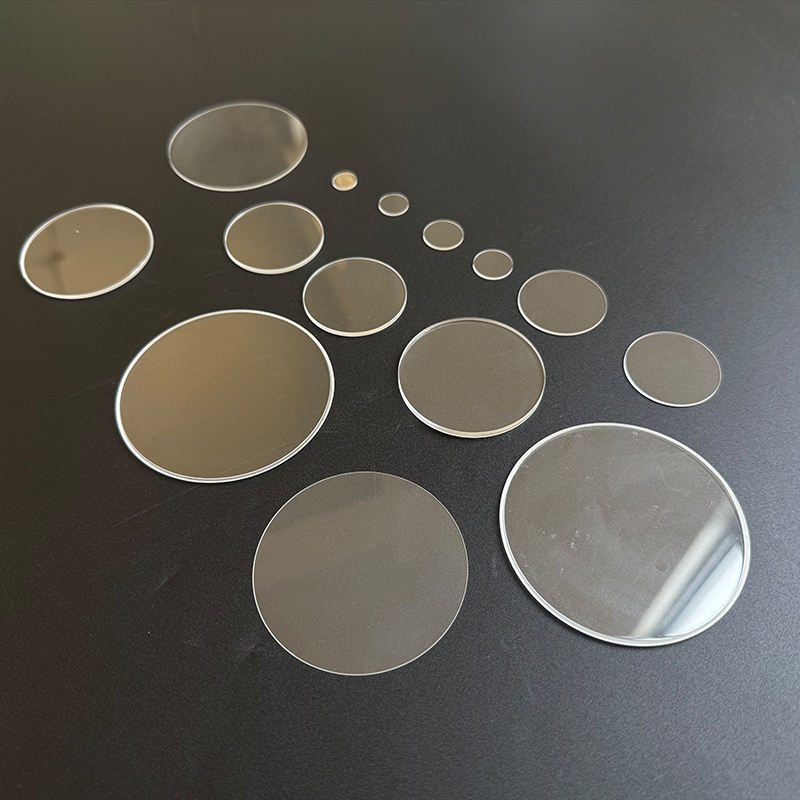

Can I get custom sizes?

Yes, sapphire optical windows are available in diameters from 0.5 mm to 750 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
