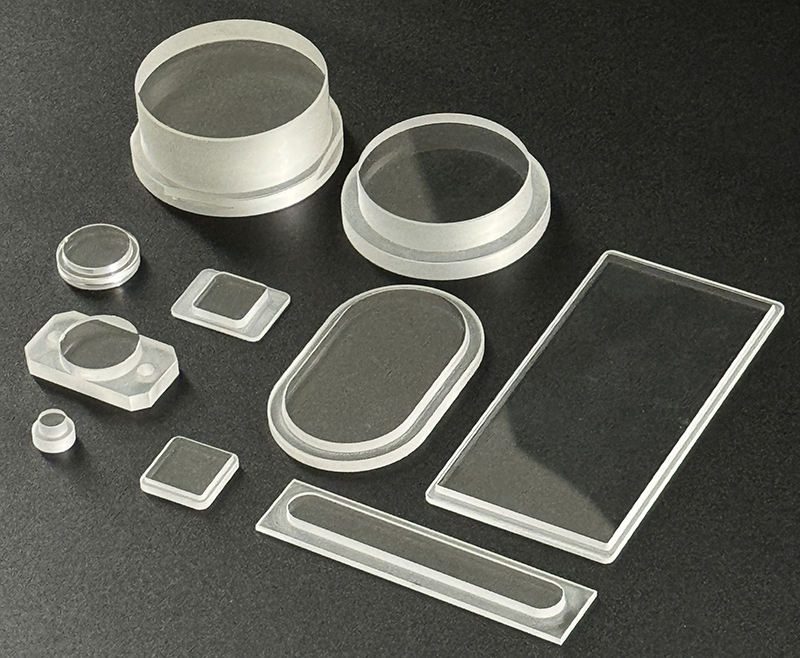

0.1 mm Sapphire Optical Window

Product description

Sapphire optical windows are essential for applications in the semiconductor and medical fields, providing excellent durability and transmittance across multiple bands, including 3-5 μm and 0.7-1.7 μm. With a clear aperture of 85% to 95% and a surface quality of 80/50, these windows ensure high performance in demanding environments. They are available in diameters ranging from 0.1 mm to 700 mm, making them suitable for various applications.

Key Features

Transmittance of approximately 80% from 0.3 to 5 μm, ensuring effective light passage.
Clear aperture between 85% and 95%, maximizing utility in optical applications.
Surface quality rated at 80/50, promoting clarity and precision in imaging.
Available diameters from 0.1 mm to 700 mm, accommodating diverse project requirements.
OEM and ODM customization options available for tailored solutions.

Applications

Semiconductor, Medical

Specification Summary

Item	Value
Material	Sapphire
Diameter	0.1 mm
Thickness	Custom
Surface Quality	80/50
Transmission bands	MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 Years
Customized Support	OEM, ODM
Clear Aperture	85% ~95%

FAQ

What is the minimum order quantity (MOQ) for sapphire windows?

The MOQ is not specified, allowing for flexible ordering based on project needs.

Can I get custom sizes for sapphire optical windows?

Yes, OEM and ODM support is available for customized sapphire products.
