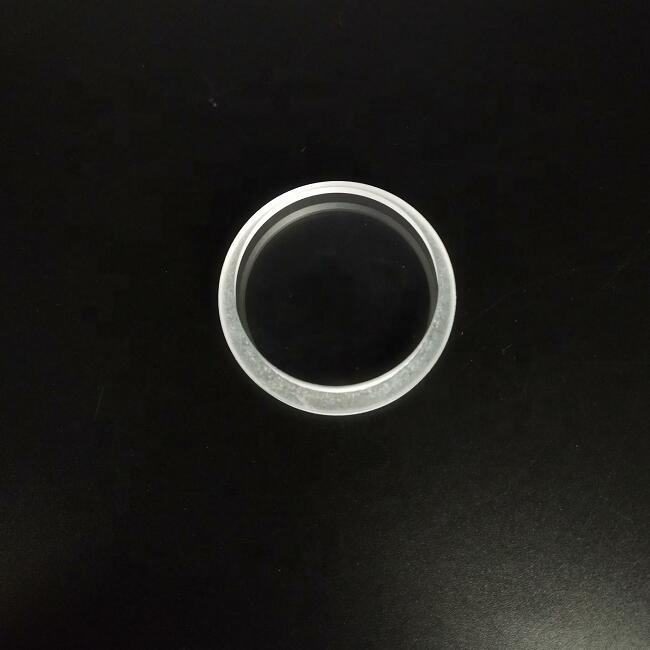

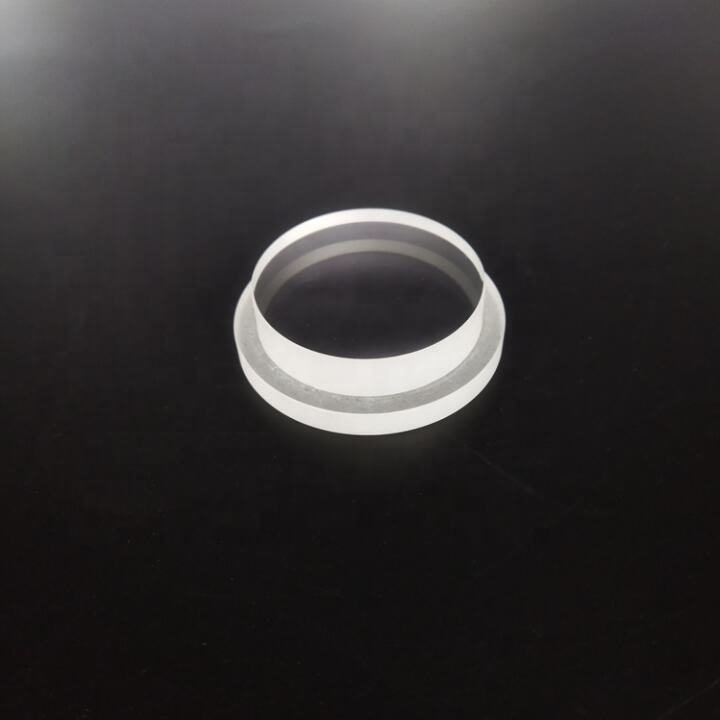

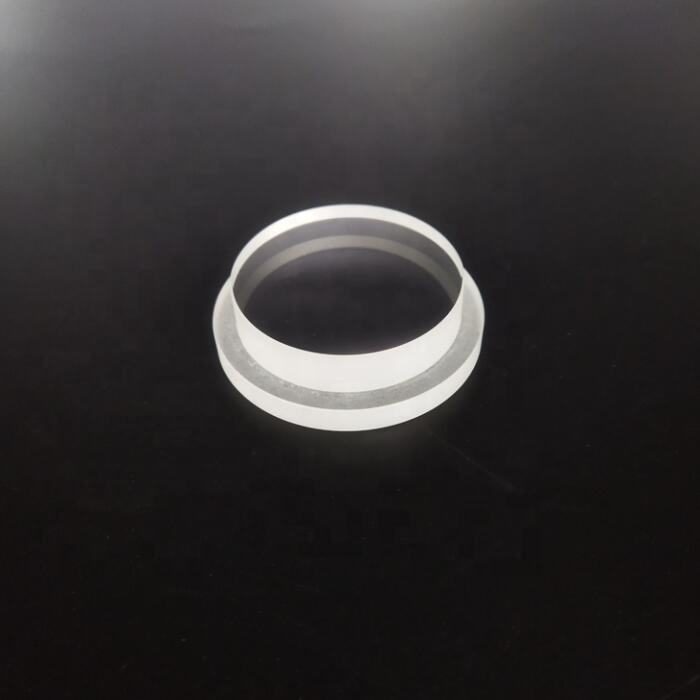

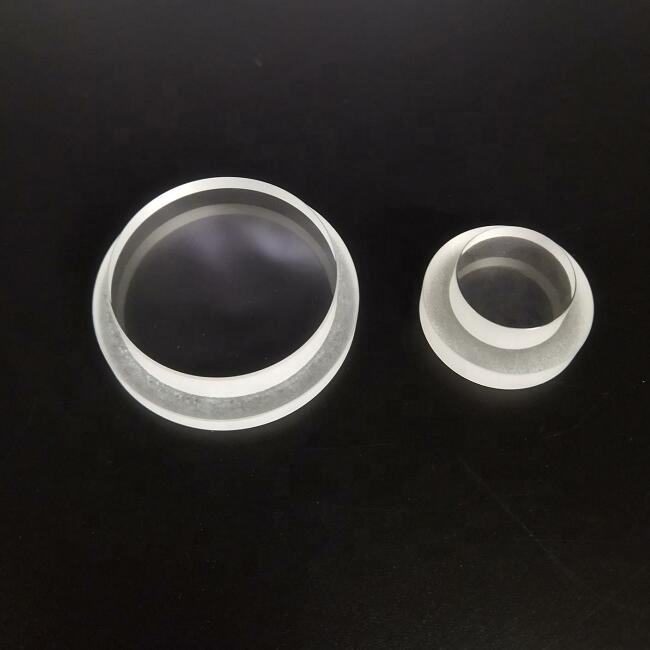

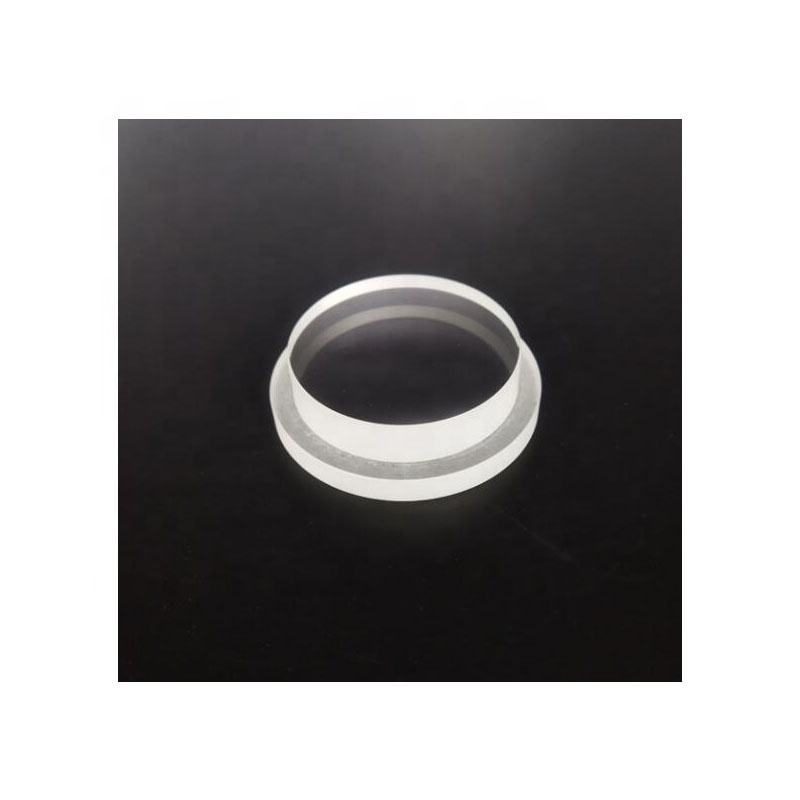

1x0.1 mm Sapphire Optical Window
Explore customizable sapphire optical windows with high transmittance for semiconductor and medical applications.
Core attributes
- Material
- Sapphire
- Diameter range
- 1–450 mm
- Thickness
- 0.1–100 mm
- MOQ
- 1 PC
Product facts
Key attributes
- Material
- Sapphire
- Diameter range
- 1–450 mm
- Thickness
- 0.1–100 mm
- MOQ
- 1 PC
Product description
Sapphire optical windows provide exceptional durability and high transmittance across multiple bands, making them ideal for applications in semiconductor and medical fields. With a wide range of thicknesses from 0.1 mm to 100 mm and diameters from 1.0 mm to 450.0 mm, these windows can be tailored to fit specific requirements. Their robust properties ensure reliability in demanding environments, addressing the critical needs of R&D and procurement engineers.
Key Features
- Transmittance of approximately 80% from 0.3 to 5 μm, ensuring effective light passage in various applications.
- Diameter range from 1.0 mm to 450.0 mm, accommodating diverse project specifications.
- Thickness options from 0.1 mm to 100 mm, allowing for customization based on application needs.
- Diameter and thickness tolerances of ±0.02 mm, ensuring precision in manufacturing.
- Minimum order quantity of just 1 PC, facilitating prototyping and small-scale production.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 225.5 x 50 |
Applications
Semiconductor, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Diameter | 1 mm |
| Thickness | 0.1 mm |
| Surface Quality | 80/50 |
| Transmission bands | MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | 1 PC |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OBM, ODM, OEM |
| Warranty | 1 years |
| Weight | Customized |
| Moq | 1 PC |
| Diameter Tolerance | ±0.02mm |
| Thickness Tolerance | ±0.02mm |
| Clear Aperture | 80%~99% |
FAQ
Can I get custom sizes?
Yes, sapphire optical windows are available in various sizes, including a specific variant of 225.5 mm diameter and 50.0 mm thickness.
What are the tolerances for diameter and thickness?
The diameter and thickness tolerances are both ±0.02 mm, ensuring high precision in production.
What is the minimum order quantity?
The minimum order quantity is 1 PC, making it suitable for both prototypes and larger orders.
