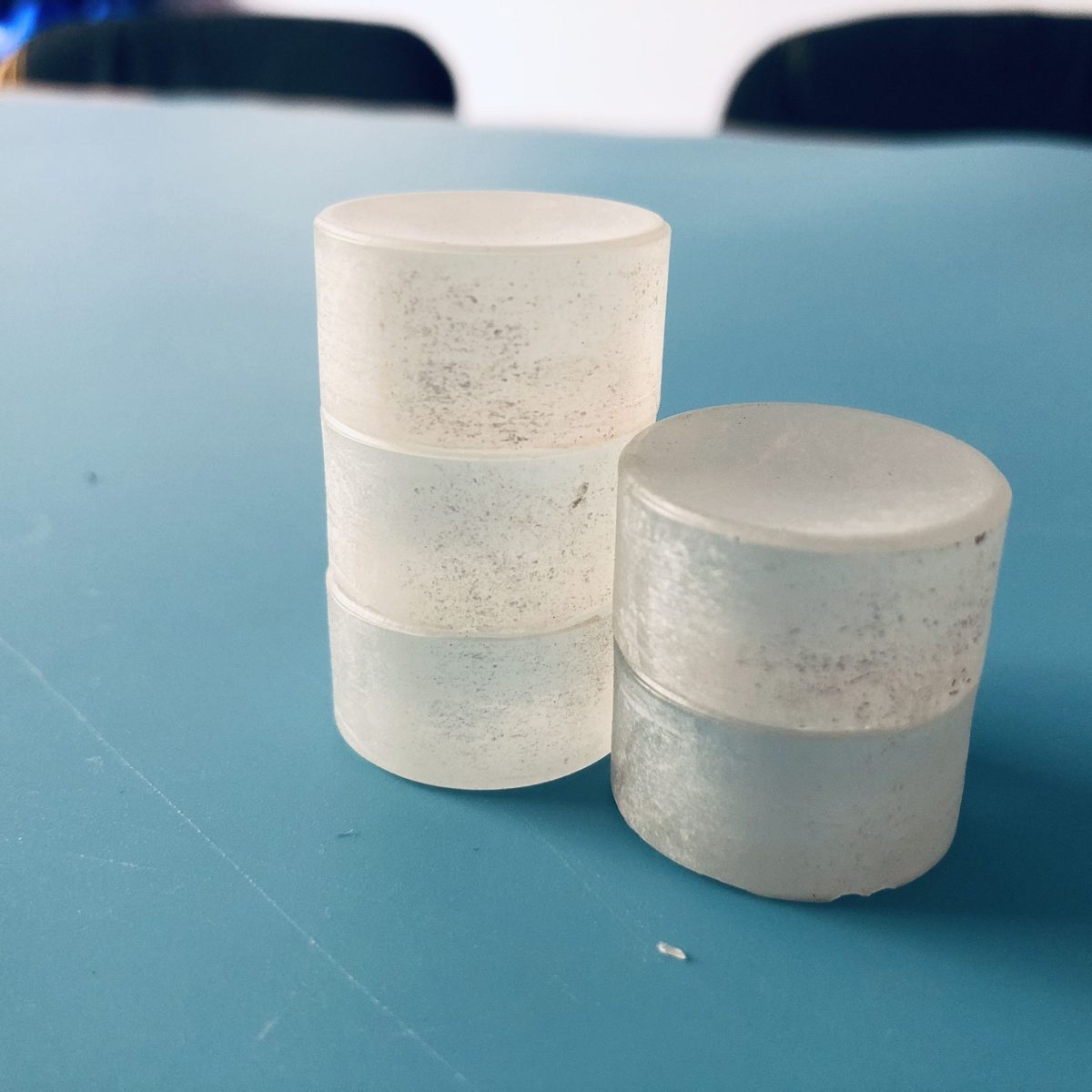

1x0.5 mm Sapphire Optical Window

Product description

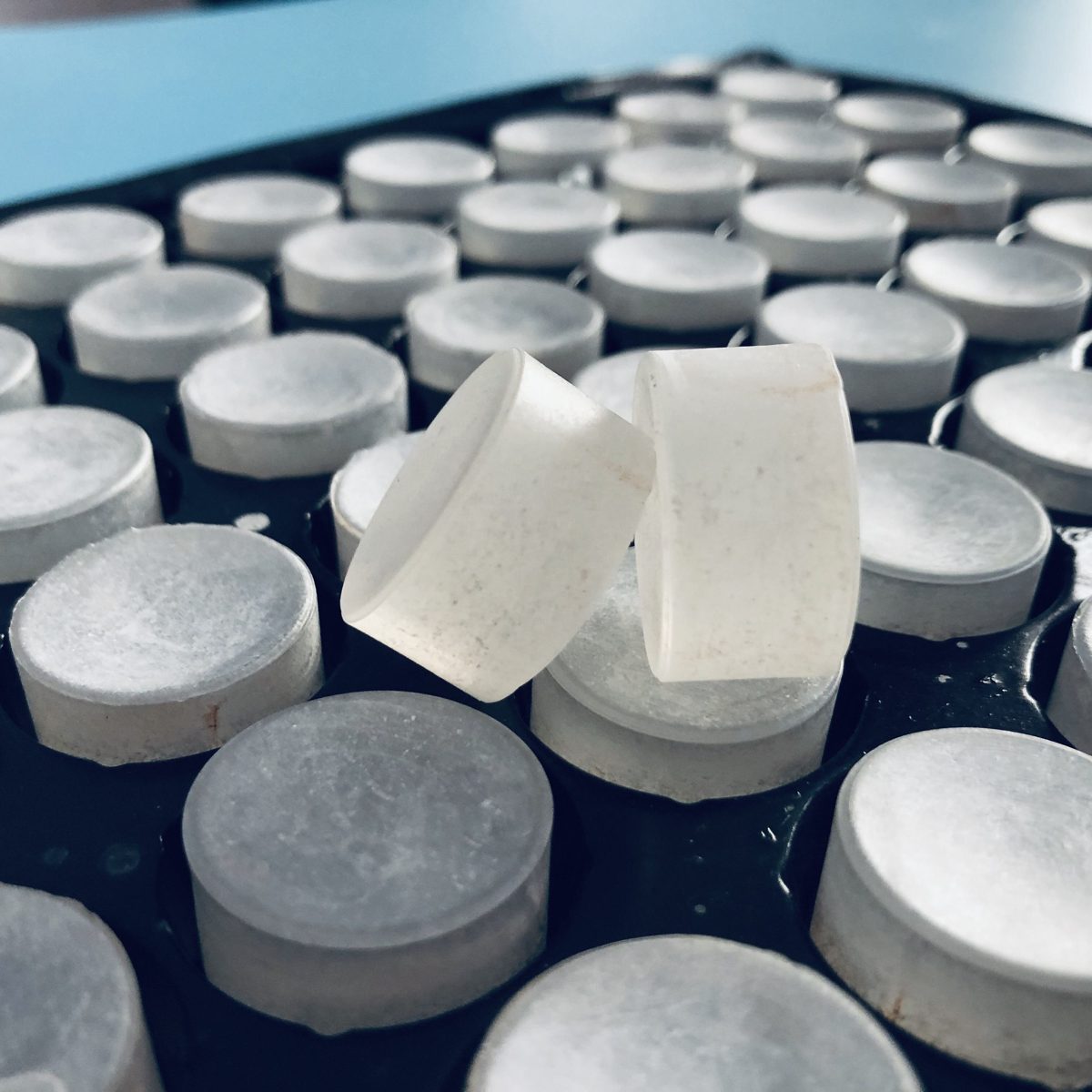

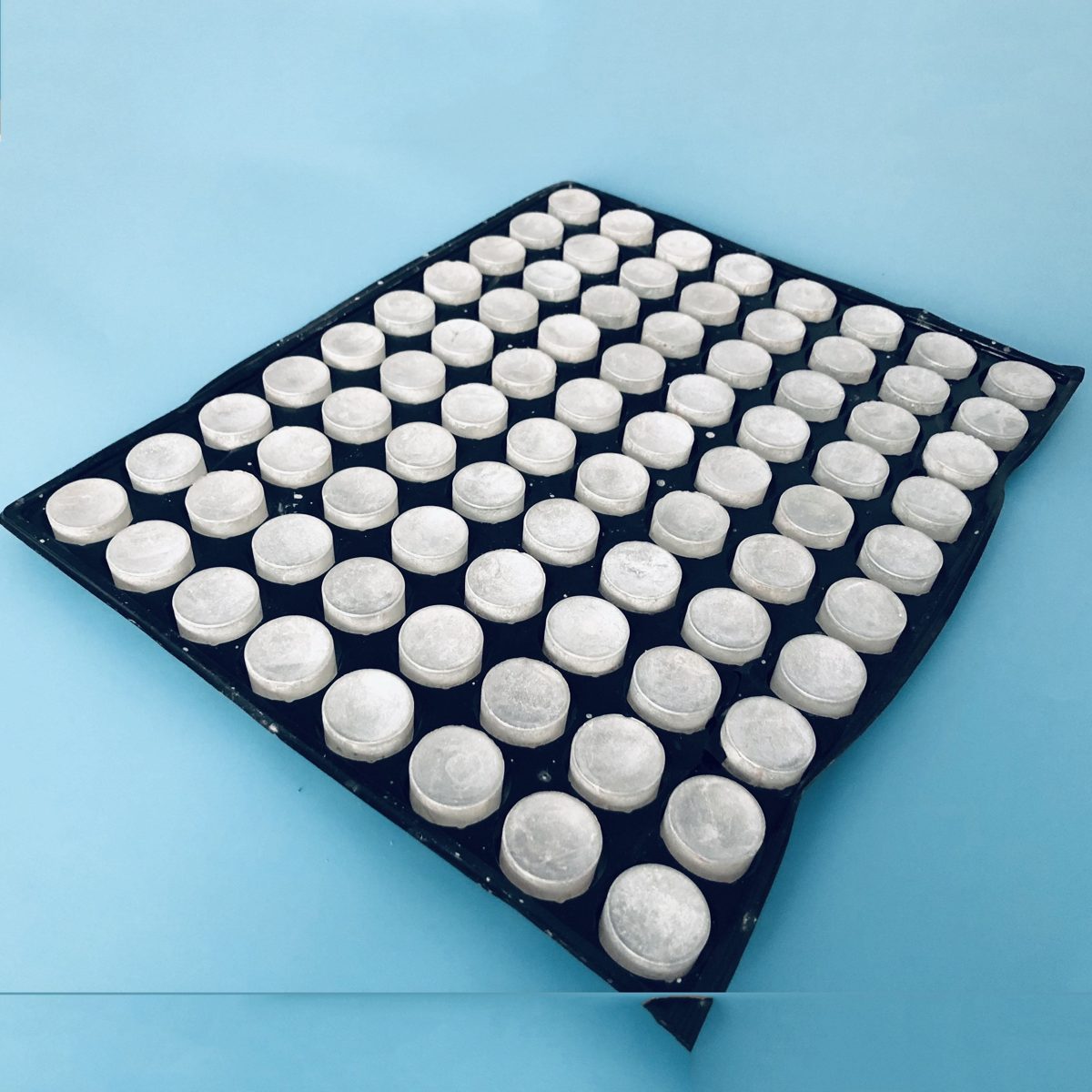

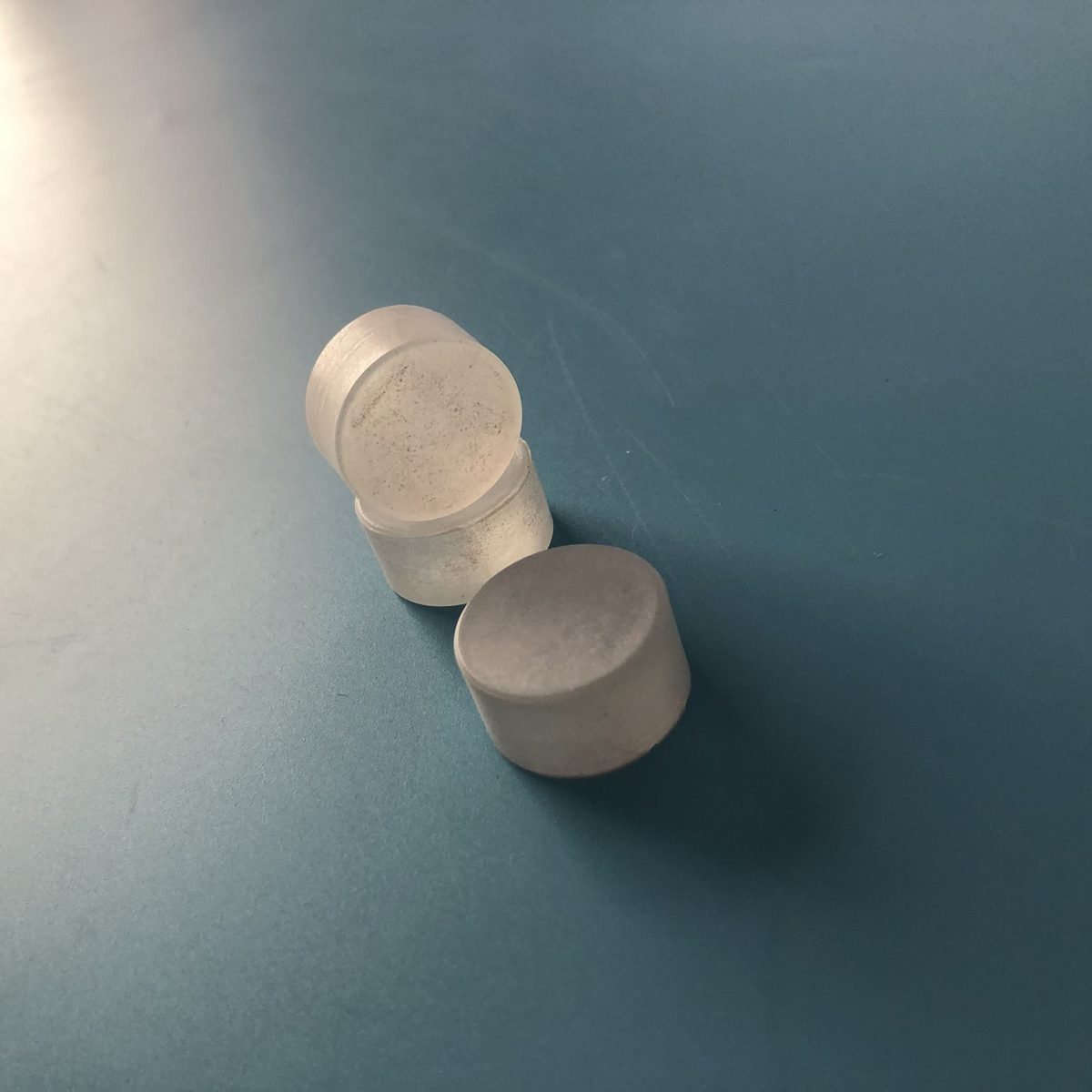

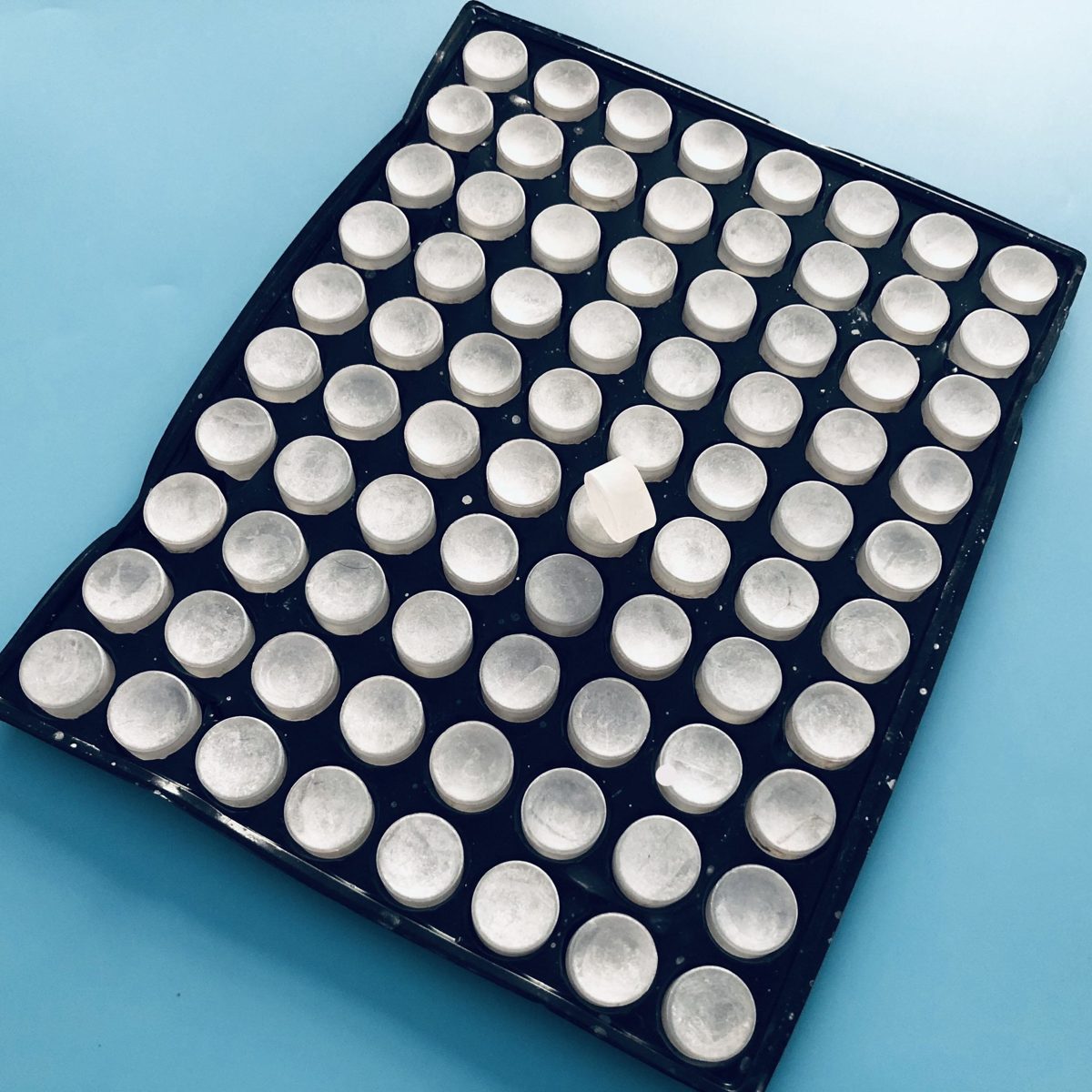

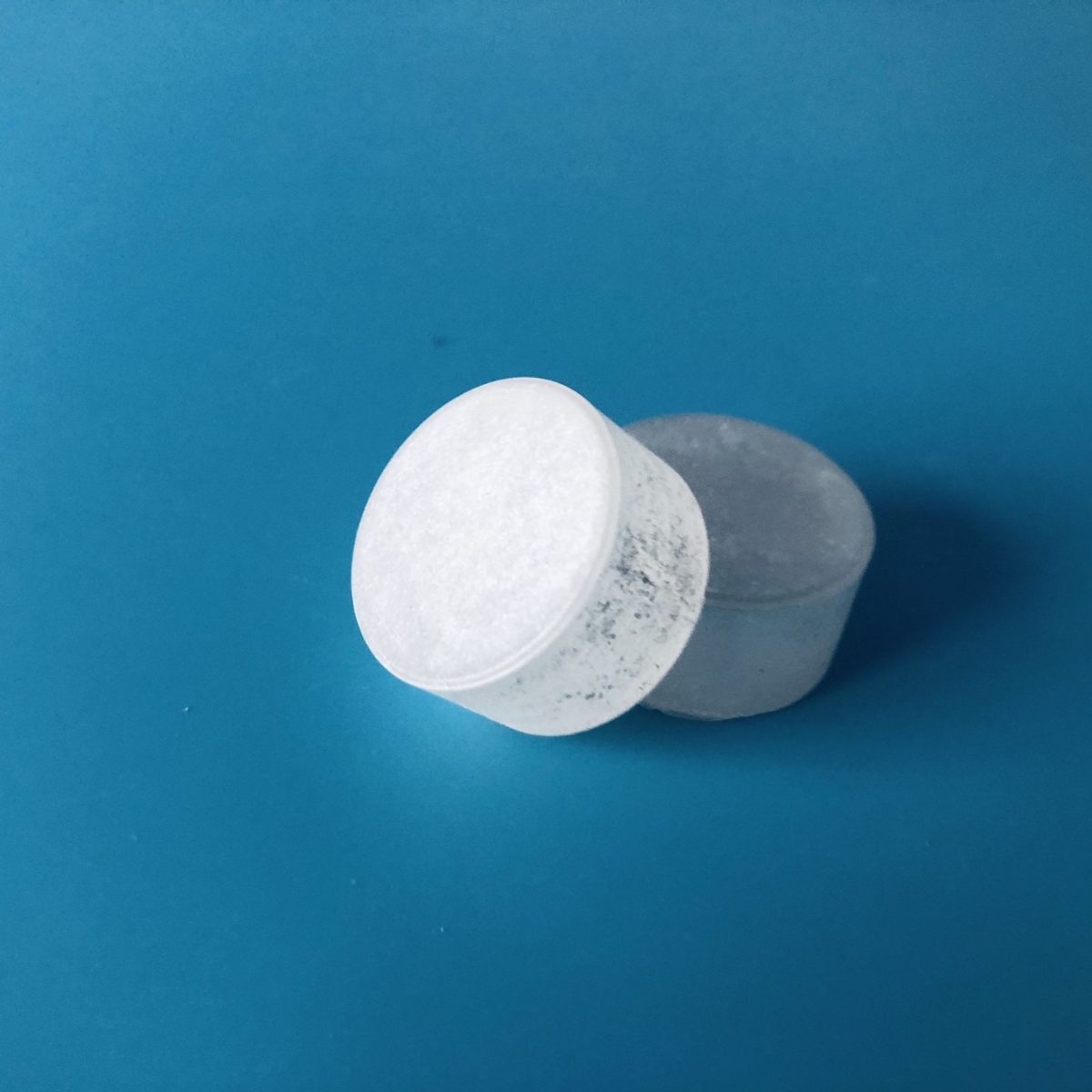

The Optical Single Crystal Sapphire Glass Blanks are ideal for medical applications in the 0.7-1.7 μm wavelength range. With a wide diameter range of 1.0 mm to 300.0 mm and thickness from 0.5 mm to 50.0 mm, these sapphire windows provide exceptional durability and performance in high-pressure and high-temperature environments. Their excellent optical properties make them suitable for various advanced optical instruments and laser systems.

Key Features

Wavelength range: 0.7-1.7 μm for versatile application in medical devices.
Customizable sizes from 1.0 mm to 300.0 mm in diameter and 0.5 mm to 50.0 mm in thickness.
High durability and temperature resistance, suitable for demanding environments.
Minimum order quantity of 100 pieces ensures batch consistency.
OEM support available for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
150.5 x 25.2

Applications

Medical

Specification Summary

Item	Value
Material	Sapphire
Diameter	1 mm
Thickness	0.5 mm
Transmission bands	NIR (0.7-1.7 μm)
MOQ	100pcs

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	1 month
Weight	Other
Diameter Tolerance	+0/-0.2mm
Thickness Tolerance	+/-0.2mm
Color	Matte
Moq	100pcs
Use	Optical
Structure	Plano-convex

FAQ

What is the minimum order quantity?

The minimum order quantity is 100 pieces.

Can I get custom sizes?

Yes, sizes can be customized with diameters from 1.0 mm to 300.0 mm and thicknesses from 0.5 mm to 50.0 mm.
