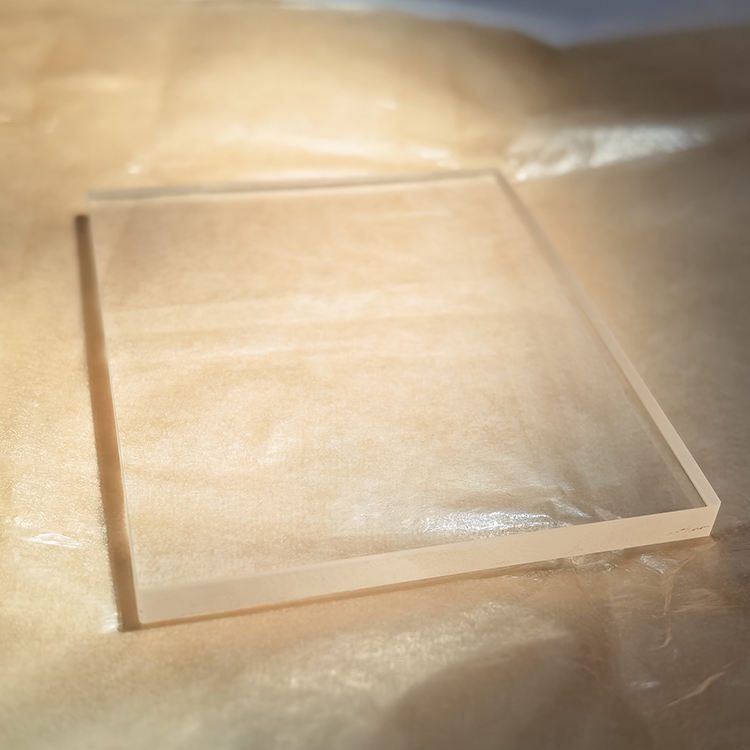

1 mm Sapphire Optical Window
Sapphire windows with customizable sizes and high optical quality for IR imaging and LIDAR applications.
Core attributes
- Material
- Sapphire
- Diameter range
- 1–350 mm
Product facts
Key attributes
- Material
- Sapphire
- Diameter range
- 1–350 mm
Product description
Sapphire windows provide exceptional durability and optical clarity, making them ideal for various applications in IR imaging, LIDAR, and medical devices. With a diameter range from 1.0 mm to 350.0 mm and a surface quality rating of 60/40, these windows are designed to meet demanding specifications. Their high clear aperture (> 95%) and standard chamfers ensure optimal performance in critical environments.
Key Features
- Diameter range: 1.0 mm to 350.0 mm for versatile applications.
- Surface quality of 60/40 ensures reliable optical performance.
- High clear aperture (> 95%) maximizes light transmission.
- Parallelism of 1’ for precision alignment in optical systems.
- Customizable options available to meet specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Diameter | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 months |
| Customized Support | OEM |
| Logo/Graphic Design | none |
| Power | None |
| Voltage | none |
| Diameter Tolerance | +/-0.1mm |
| Chamfer | Standard chamfers |
| Clear Aperture | > 95% |
| Parallelism | 1' |
| Flatness | L/4 |
FAQ
What is the diameter tolerance for these sapphire windows?
The diameter tolerance is +/-0.1 mm.
Is there a minimum order quantity (MOQ) for these products?
The MOQ is not specified, allowing for flexible ordering.
