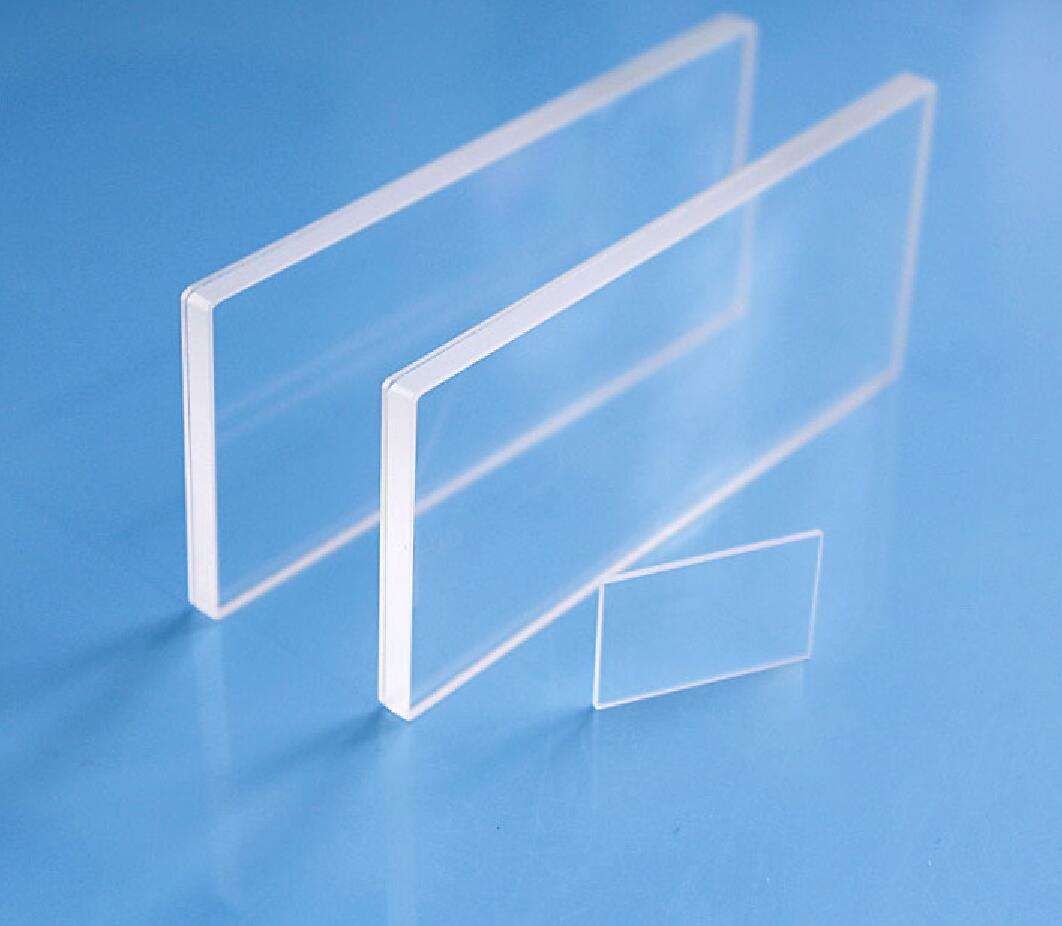

36x10 mm Sapphire Optical Window, AR Coated

Product description

This sapphire flat glass window is designed for applications requiring high durability and precision optics. With a diameter of 36 mm and a thickness of 10 mm, it features anti-reflective coatings that enhance light transmission, making it suitable for various optical applications. Its flat design and exceptional surface quality ensure minimal distortion, ideal for use in demanding environments such as IR imaging and LIDAR systems.

Key Features

Diameter of 36.0 mm and thickness of 10.0 mm for versatile integration.
Lambda/10 surface flatness ensures minimal optical distortion.
Anti-reflective coating enhances light transmission and reduces glare.
Clear aperture of 80%-95% maximizes light throughput.
Diameter and thickness tolerances of +/-0.05 mm for precise fitting.

Available Sizes

Diameter x Thickness (mm)
25.4 x 15
36 x 10
38.2 x 6
39 x 5
78 x 15

Specification Summary

Item	Value
Material	Sapphire
Diameter	36 mm
Thickness	10 mm
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Flat Glass
Warranty	1 Year
Weight	0.05
Diameter Tolerance	+/-0.05mm
Thickness Tolerance	+/-0.05mm
Surface Flatness	Lambda/10
Clear Aperture	80%~95%
Parallelism	+/- 3 '
Bevel	0.2x45

FAQ

What are the available custom sizes?

Available variant sizes include 25.4x15.0 mm, 36.0x10.0 mm, 38.2x6.0 mm, 39.0x5.0 mm, and 78.0x15.0 mm.

What is the thickness tolerance?

The thickness tolerance for this sapphire window is +/-0.05 mm.
