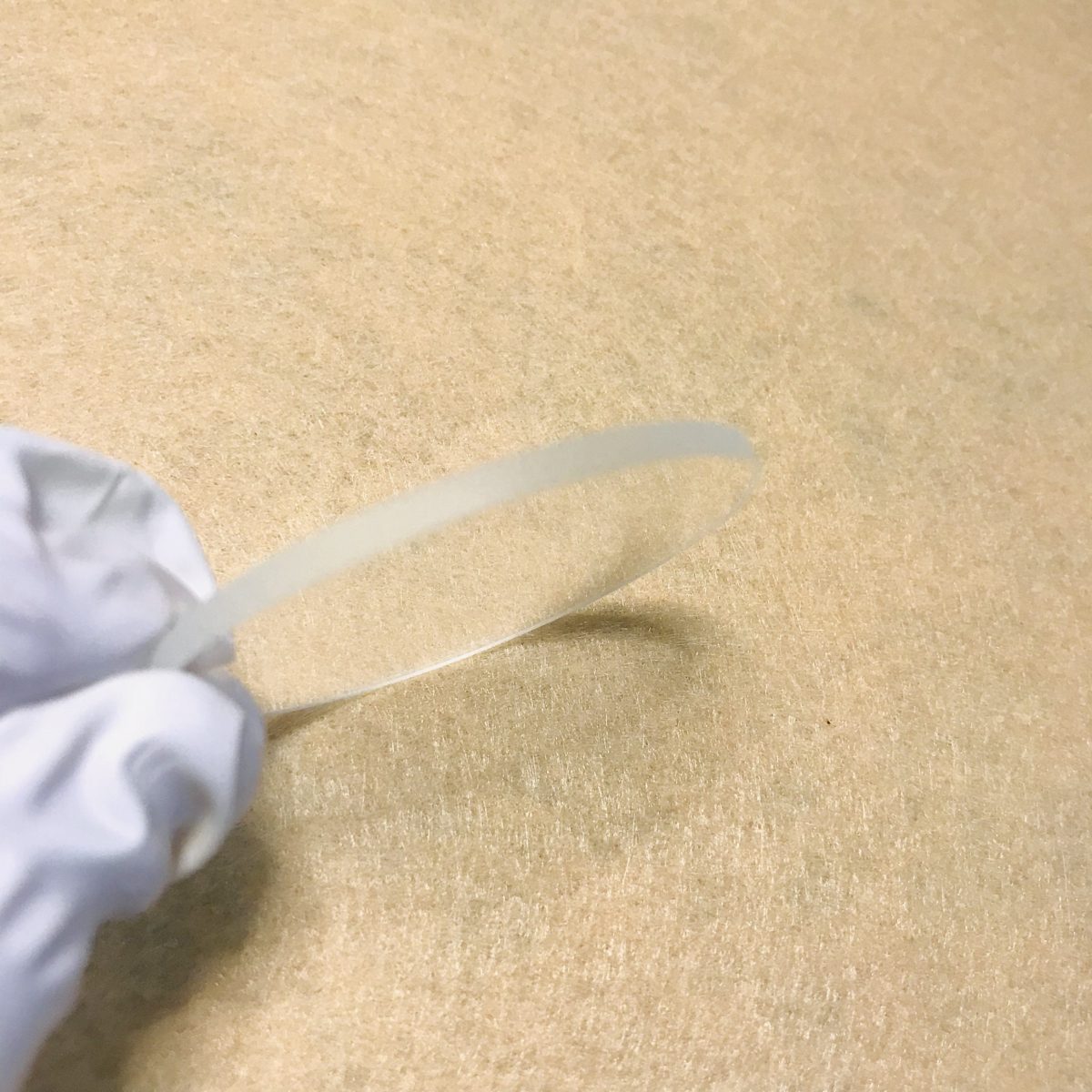

3 mm Sapphire Optical Window, AR Coated
Discover customizable Optical Sapphire Windows with high surface quality and low MOQ for various applications.
Core attributes
- Material
- Sapphire
- Diameter range
- 3–500 mm
- Coating
- ar
- MOQ
- 1 piece
Product facts
Key attributes
- Material
- Sapphire
- Diameter range
- 3–500 mm
- Coating
- ar
- MOQ
- 1 piece
Product description
Optical Sapphire Windows are ideal for demanding applications in IR imaging, LIDAR, and laser systems. With a diameter range from 3.0 mm to 500.0 mm and a surface quality of 20/10, these windows ensure high performance and durability. Their customizable nature allows for tailored solutions to fit specific requirements, making them suitable for various optical applications. Sourced from Zhejiang, these windows maintain consistent quality and can be ordered with a minimum quantity of just one piece.
Key Features
- Diameter range: 3.0 mm to 500.0 mm for versatile application fit.
- Surface quality: 20/10 ensures high clarity and minimal distortion.
- Clear aperture: >90% for optimal light transmission.
- Customizable options available, including OEM and ODM support.
- Low MOQ of just 1 piece for prototyping and small-scale needs.
Specification Summary
| Item | Value |
|---|---|
| Material | Sapphire |
| Diameter | 3 mm |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| MOQ | 1 piece |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.001 |
| Name | Optical Sapphire Windows |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Moq | 1 piece |
| Bevel | 0.1-0.5mm |
| Flatness | 1/4lambda |
FAQ
What is the minimum order quantity?
The minimum order quantity is 1 piece.
Can I get custom sizes?
Yes, custom sizes are available with OEM and ODM support.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
