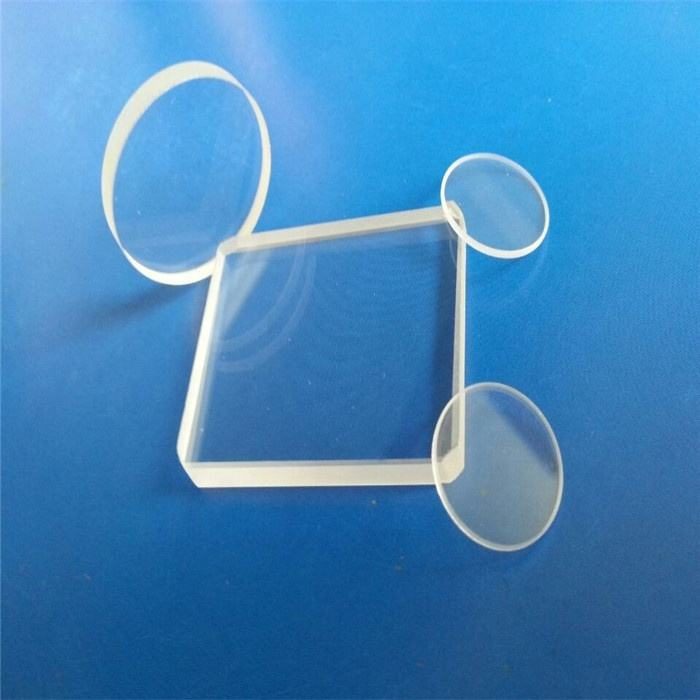

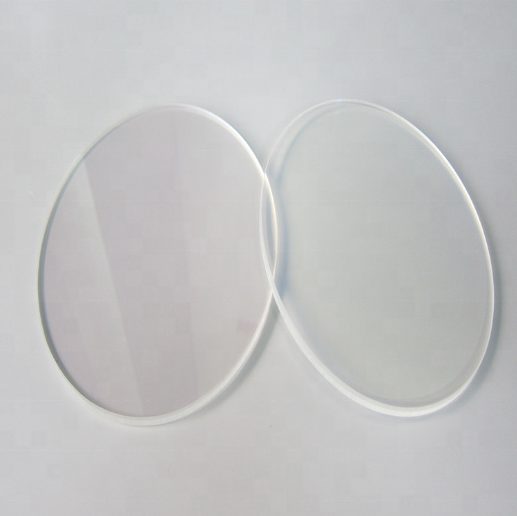

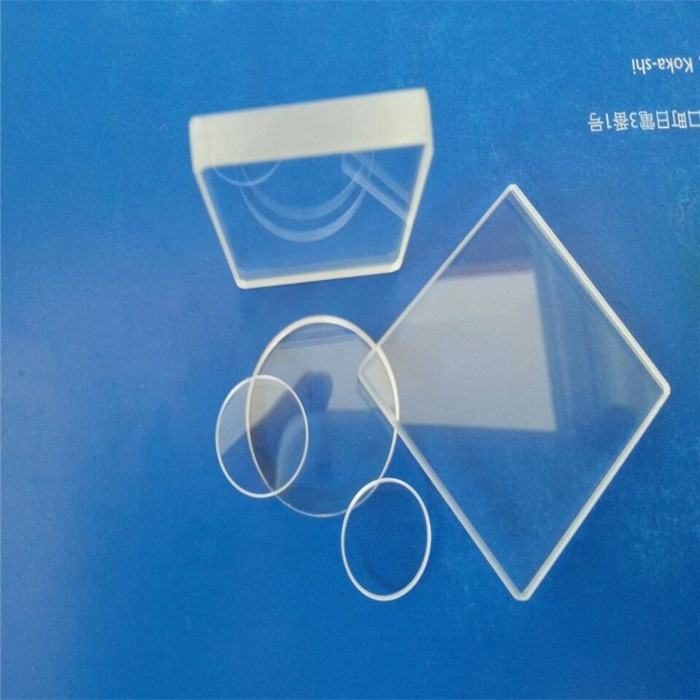

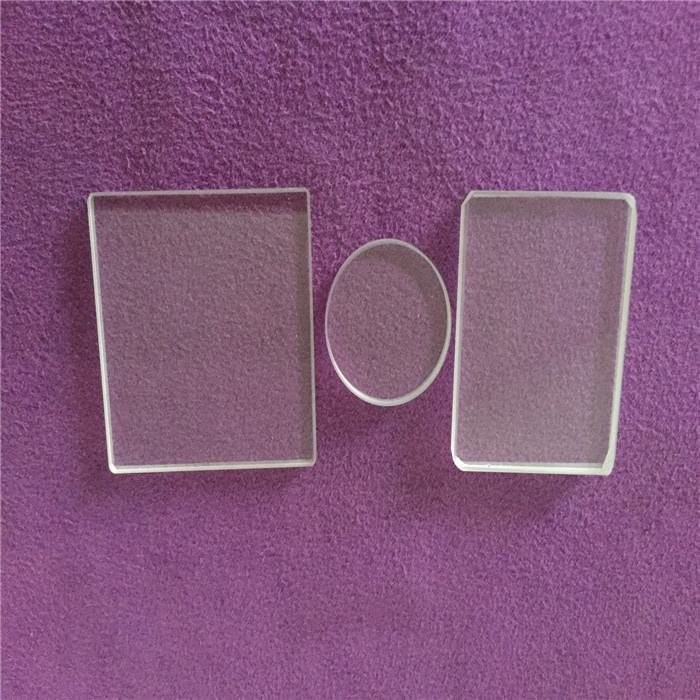

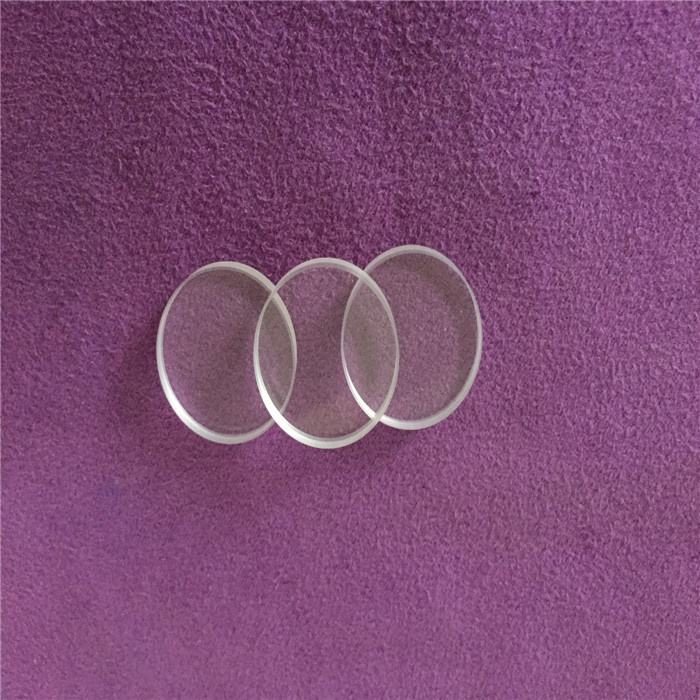

5 mm Sapphire Optical Window, AR Coated

Product description

This high-quality transparent sapphire window glass is ideal for applications requiring durability and optical clarity. With a hardness rating of 9H, it is suitable for environments where resistance to scratches and thermal shock is essential. The sapphire windows are available in diameters ranging from 5.0 mm to 250.0 mm, making them versatile for various optical systems, including IR imaging and laser applications. The AR coating enhances transmittance, ensuring optimal performance across a range of wavelengths.

Key Features

Diameter range: 5.0 mm to 250.0 mm for versatile applications.
Hardness rating of 9H ensures superior scratch resistance.
Surface flatness options from Lambda/10 to Lambda/4 for high precision.
Customizable sizes and coatings (AR, MgF2) to fit specific needs.
Tolerance of 0.02 mm to 0.1 mm for consistent batch quality.

Specification Summary

Item	Value
Material	Sapphire
Diameter	5 mm
Thickness	Custom
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	plano, Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex…
Customized Support	OEM, ODM, OBM
Warranty	2 Years
Weight	OEM
Name	high quality of transparent sapphire window glass
Color	clear
Tolerance	0.02~0.1mm
Hardness	9H
Surface Flatness	Lambda/10~ Lambda/4

FAQ

Can I order custom sizes?

Yes, sapphire windows can be customized in size, with diameters from 5.0 mm to 250.0 mm.

What is the tolerance for these sapphire windows?

The tolerance ranges from 0.02 mm to 0.1 mm, ensuring precise fit for your applications.
