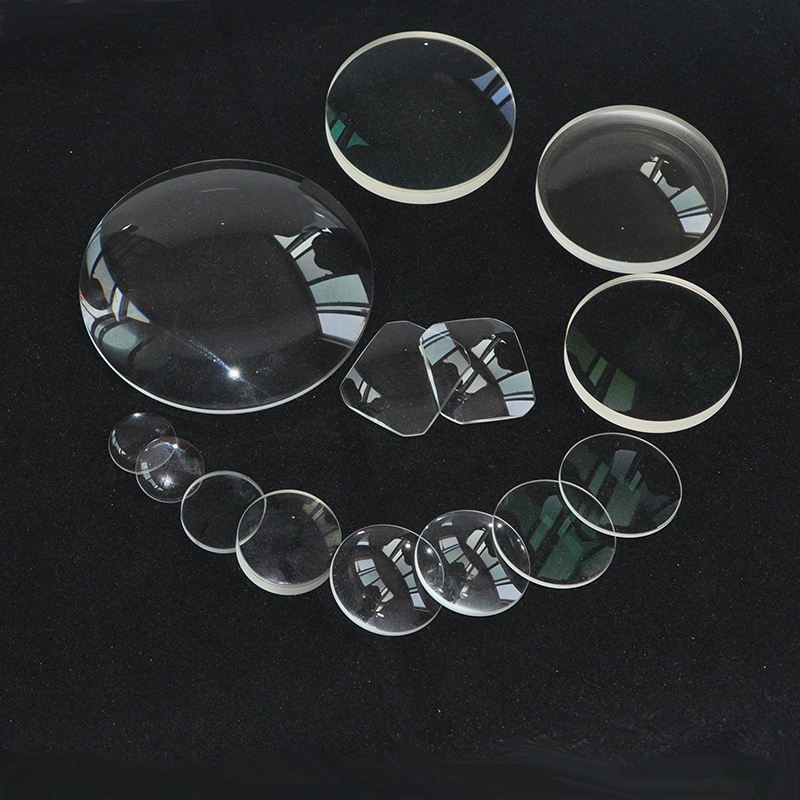

5 mm Sapphire Optical Window, AR Coated

Product description

This Sapphire Plano Window Lens is designed for security applications, providing high-quality optical performance. With diameters ranging from 5.0 mm to 350.0 mm, it offers excellent surface quality (20/10) and customizable options to fit specific requirements. The lens is suitable for various optical instruments and ensures reliability in demanding environments.

Key Features

Diameter range: 5.0 mm to 350.0 mm for versatile application fit.
Surface quality of 20/10 ensures minimal distortion and high clarity.
Customizable with OEM, ODM, and OBM support for tailored solutions.
Diameter tolerance of 0/-0.05 mm for precise fitting.
Clear aperture of 80%-95% enhances light transmission efficiency.

Applications

Security

Specification Summary

Item	Value
Material	Sapphire
Diameter	5 mm
Thickness	Custom
Surface Quality	20/10
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Lens
Customized Support	OEM, ODM, OBM
Warranty	1 years
Weight	50
Materials	high quality optical glass
Diameter Tolerance	0/-0.05mm
Thickness Tolerance	0.01~ 0.1mm
Bevel	0.2-0.5mmX45
Clear Aperture	80%~95%

FAQ

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexibility in procurement.

Can I get a customized size for the lens?

Yes, customizable options are available, including OEM and ODM support.
