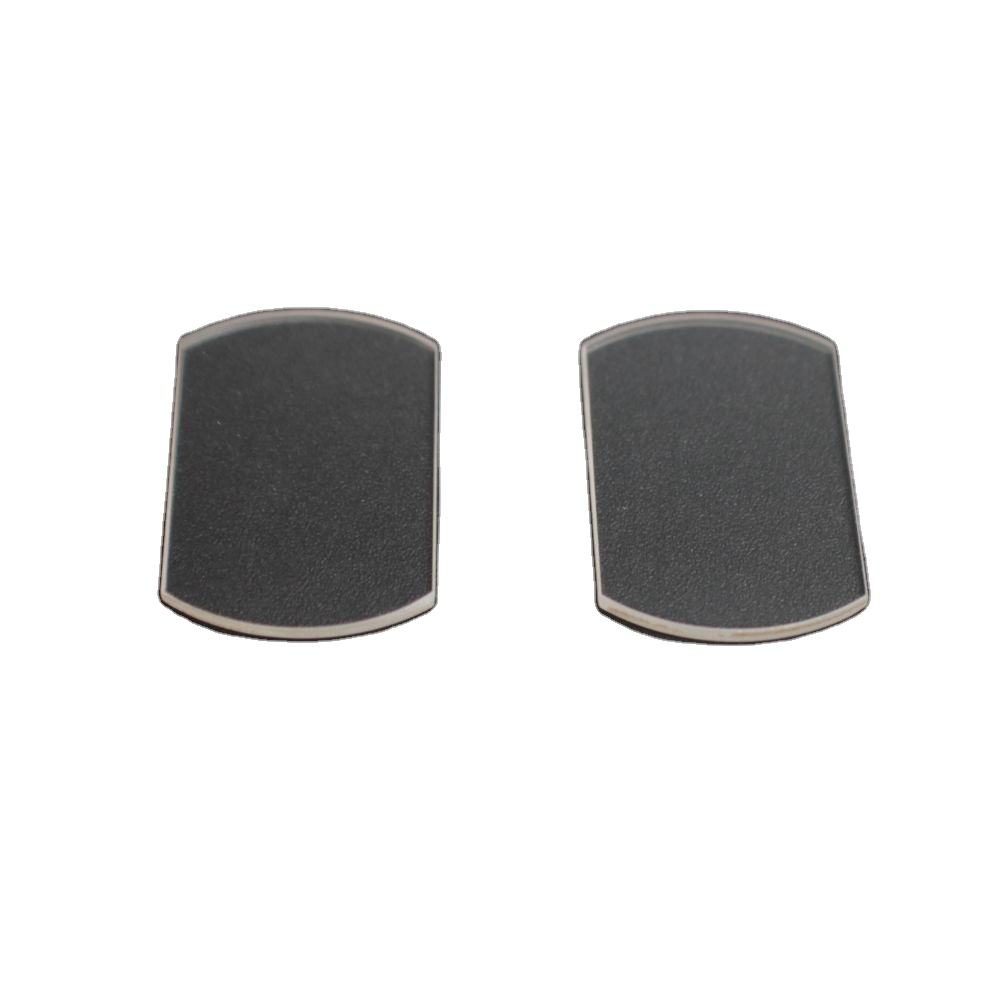

5 mm Sapphire Optical Window

Sapphire optical windows provide exceptional performance in thermal imaging, security, and medical applications. With transmission capabilities spanning from 400-700 nm and 8-14 μm, these windows are ideal for environments requiring high durability and thermal stability. The sapphire material offers superior hardness and chemical resistance, making it suitable for demanding applications such as aerospace and surveillance. Custom sizes are available to meet specific project requirements.

Key Features

• Transmits wavelengths from 400-700 nm and 8-14 μm for versatile application use.
• High mechanical strength and chemical resistance ensure durability in harsh environments.
• Diameter options range from 5.0 mm to 300.0 mm, accommodating various design needs.
• Custom sizes can be processed quickly to meet specific project requirements.
• Surface quality rated at 80/50 for reliable optical performance.

Applications

Thermal Imaging, Security, Medical

Specification Summary

Full Specifications

FAQ

What is the diameter tolerance for these sapphire windows?

The diameter tolerance is +0.0, -0.02 mm.

Are custom sizes available?

Yes, custom sizes can be processed and delivered quickly upon request.
