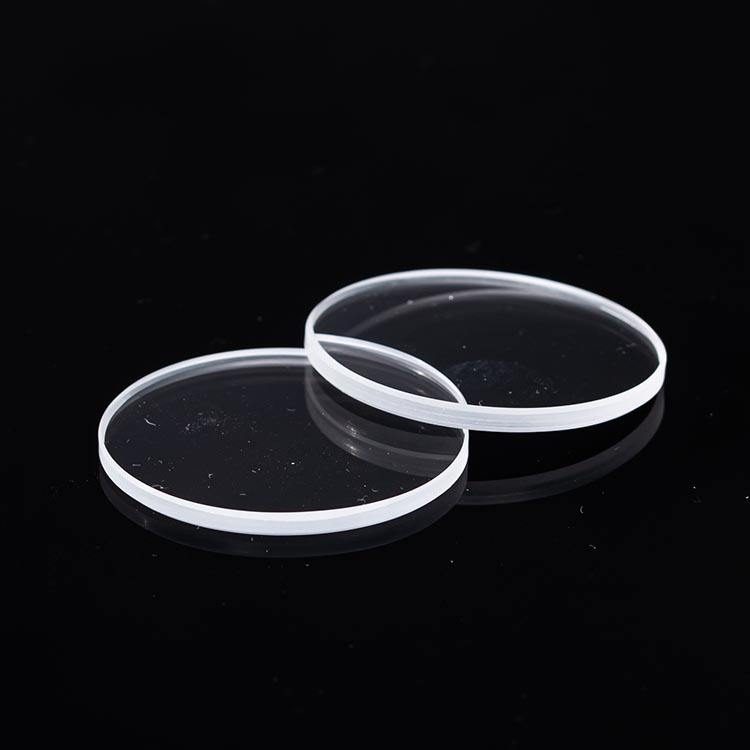

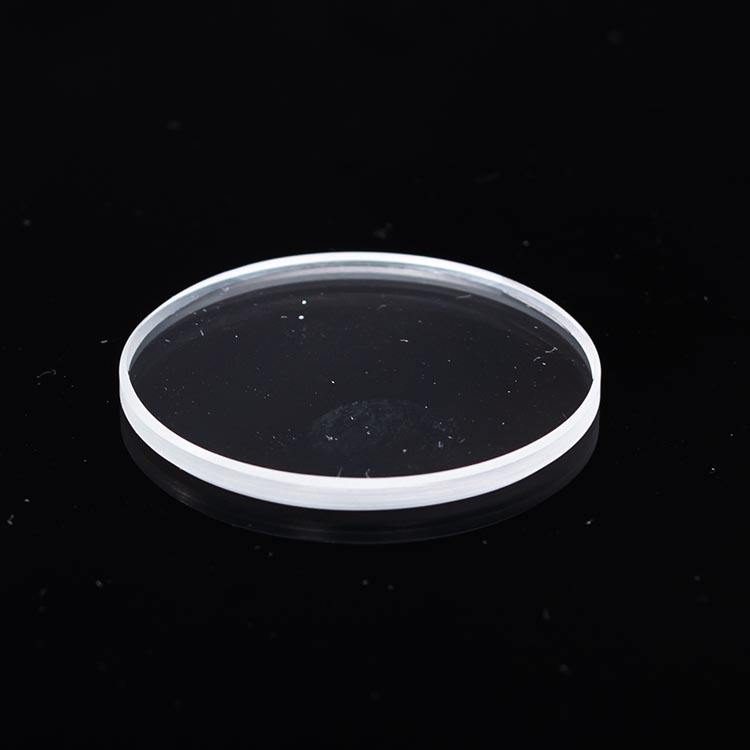

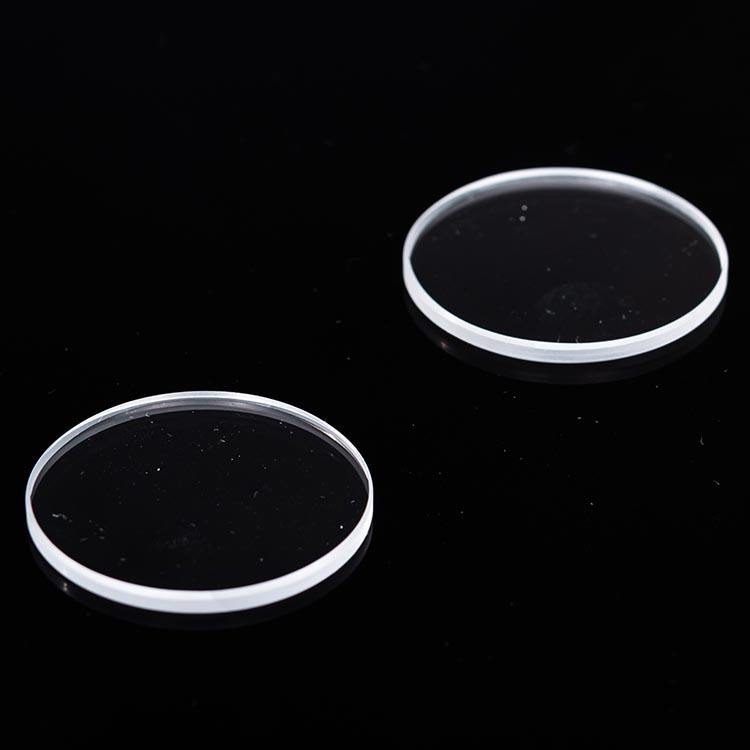

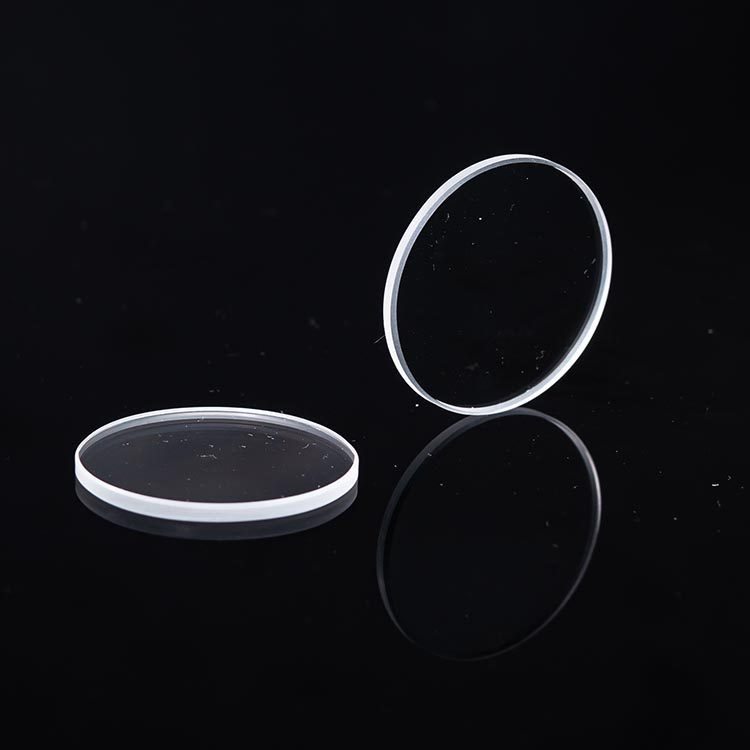

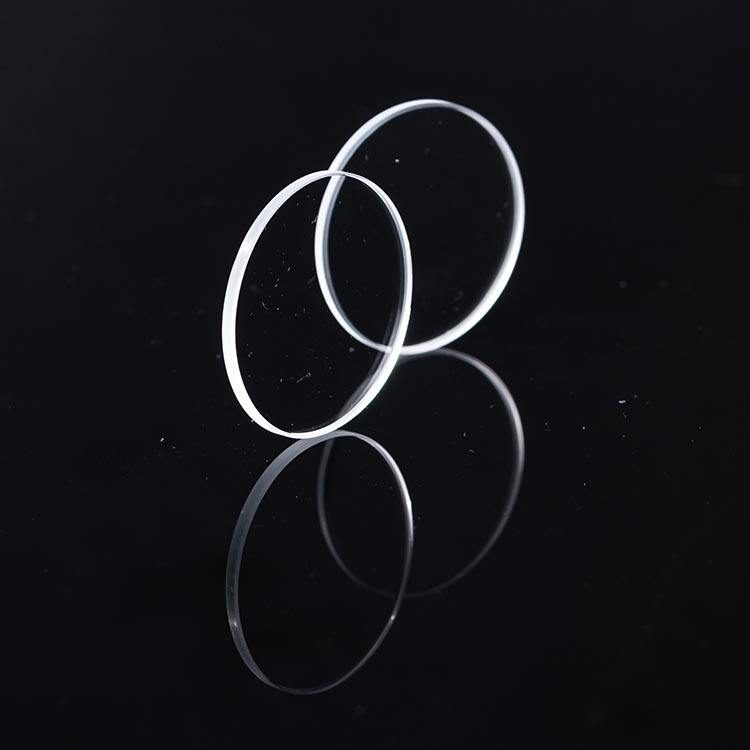

5 mm Sapphire Optical Window

Product description

Sapphire optical windows provide exceptional performance for applications in the 400-700 nm wavelength range. With a diameter range from 5.0 mm to 400.0 mm and surface quality rated at 60/40, these windows are ideal for demanding environments in IR imaging, LIDAR, and laser applications. Their robust design ensures reliability and durability, making them suitable for various research and medical device applications.

Key Features

Diameter range: 5.0 mm to 400.0 mm for versatile application fit.
Surface quality of 60/40 ensures minimal distortion and high clarity.
Available with AR coatings to enhance transmittance and reduce reflections.
Clear aperture of 95% maximizes light transmission for optimal performance.
Customized support for OEM and ODM, accommodating unique project needs.

Specification Summary

Item	Value
Material	Sapphire
Diameter	5 mm
Thickness	Custom
Surface Quality	60/40
Coating	uncoated, anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Optical Window
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.5kg(1.10lb)
Diameter Tolerance	0.01mm
Color	Transparent
Clear Aperture	95%

FAQ

What is the diameter tolerance for the sapphire windows?

The diameter tolerance is ±0.1 mm, ensuring precise fit for your applications.

Can I get custom sizes for the sapphire optical windows?

Yes, custom sizes are available through OEM and ODM support.
