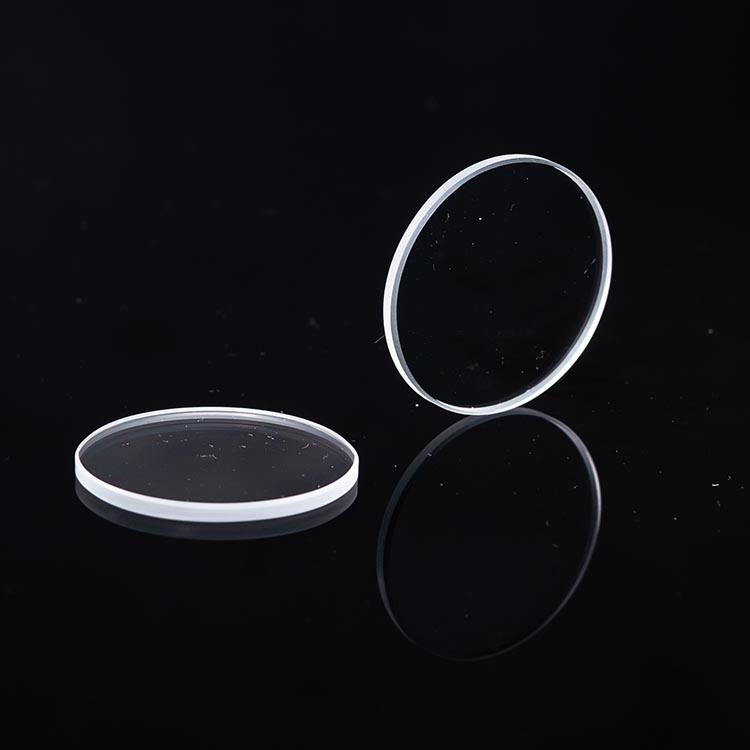

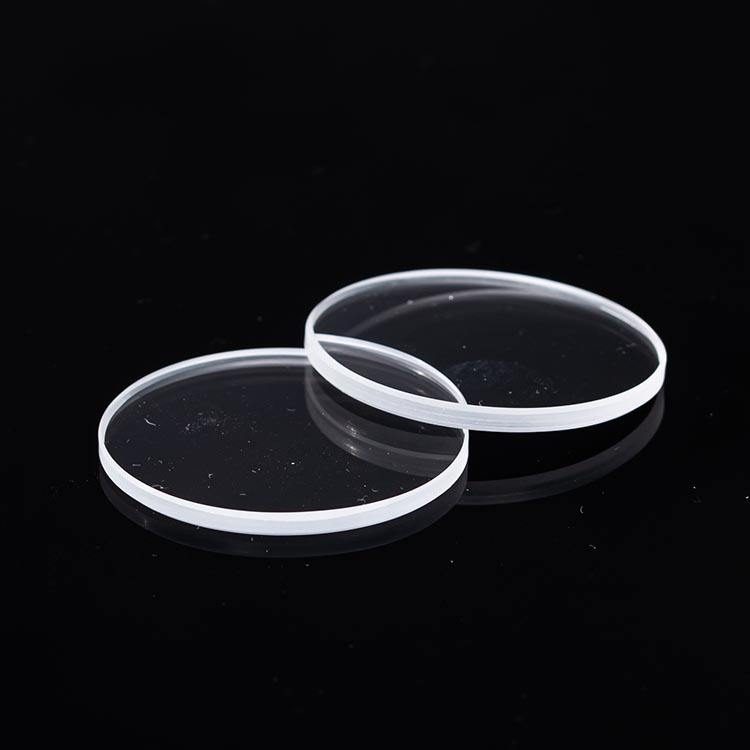

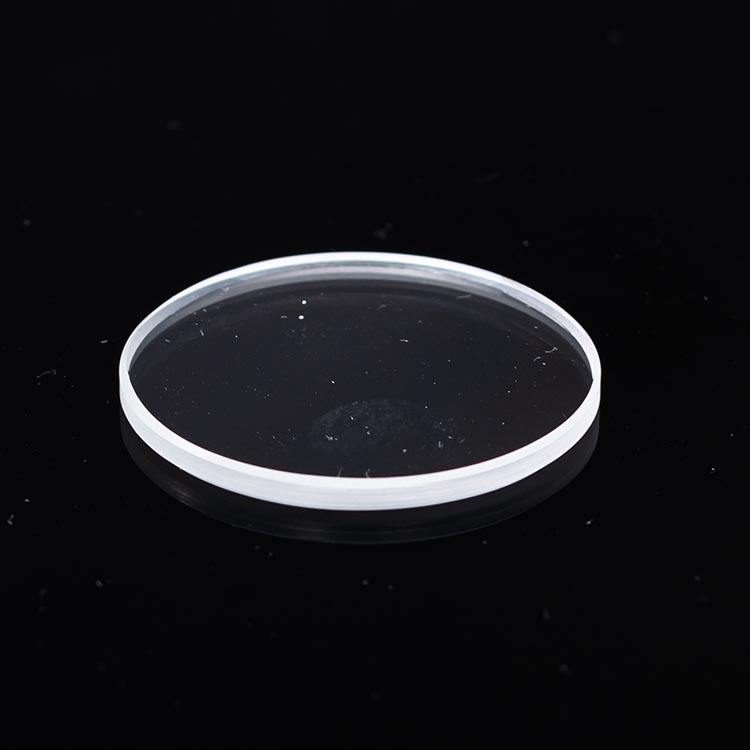

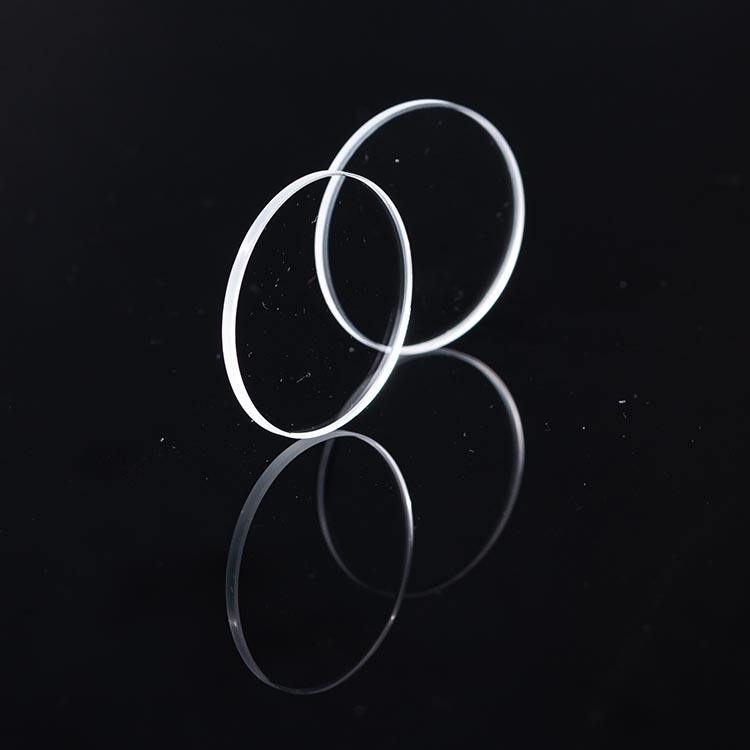

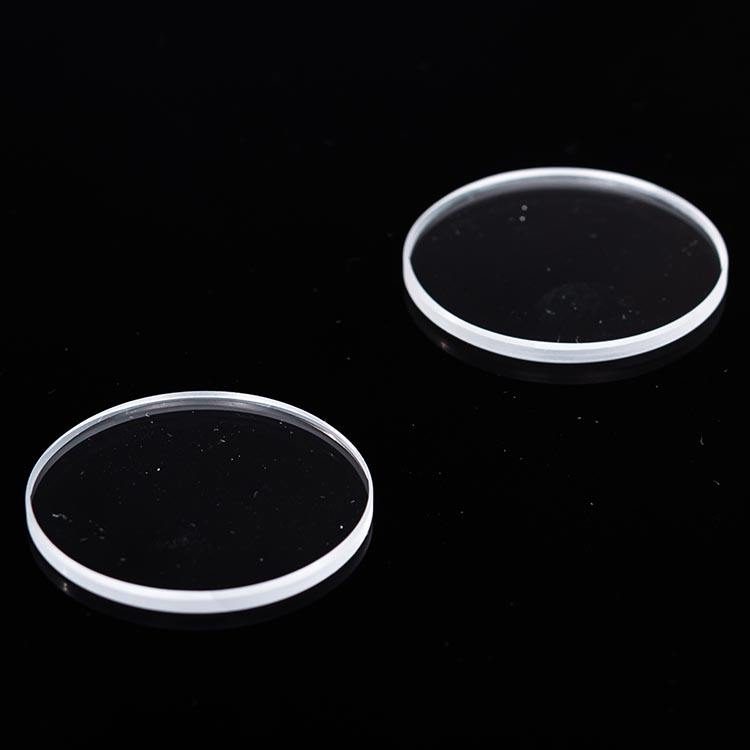

8x1 mm Sapphire Optical Window

Product description

This sapphire optical window is designed for applications in the medical field, providing excellent performance in the 400-700 nm wavelength range. With a diameter of 8 mm and a thickness of 1 mm, it ensures high transmittance and surface quality, making it ideal for precision optical systems. The window’s robust construction and surface flatness of 1 lambda enhance its reliability in demanding environments.

Key Features

Wavelength range: 400-700 nm for versatile application in medical devices.
Surface quality of 80/50 ensures minimal distortion for high optical performance.
Thickness tolerance of ±0.2 mm allows for precise integration into optical systems.
Clear aperture of 90% maximizes light transmission for improved imaging.
OEM and ODM support available for customized solutions.

Available Sizes

Diameter x Thickness (mm)
8 x 1

Applications

Medical

Specification Summary

Item	Value
Material	Sapphire
Diameter	8 mm
Thickness	1 mm
Surface Quality	80/50
Coating	uncoated
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	optical Windows
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg(1.10lb)
Surface Flatness	1lambda
Parallel	<3 arcmin
Bevel	0.2~0.5mmx45
Thickness Tolerance	+/-0.2mm
Clear Aperture	90%

FAQ

What are the available custom sizes?

Currently, the variant size available is 8.0 mm in diameter and 1.0 mm in thickness.

What is the surface flatness specification?

The surface flatness is specified at 1 lambda, ensuring high optical quality.
